Why is there air in my irrigation system?
Why is there air in my irrigation system?

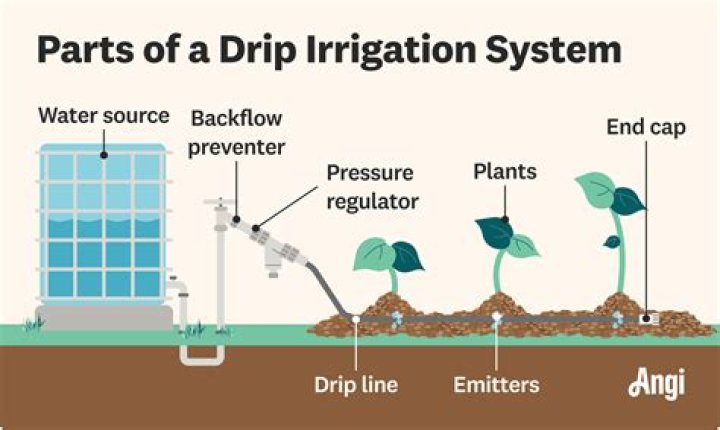

When your irrigation system shuts down most of the water drains out through the emitters or any auto drain valves you might have installed and is replaced by air. The dissolved air comes out with temperature or pressure changes in the system in the form of small bubbles.
Can you drain a sprinkler system?
Steps How To Drain Your Sprinkler / Irrigation System: Turn off your water at the dedicated Sprinkler Line Shutoff (A) in your basement / crawlspace. Open the 2 Petcock’s (F) with a flat head screwdriver so that the screw head runs a 45 degree angle. Open the Inside Drain (B) to drain your system.
What is a flush valve irrigation?
Small, simple and economical, flush valves punch way above their weight. Flush valves open when water pressure in the line drops below 2.5 PSI, effectively draining the line when the system shuts off. In short, a small investment in flush valve irrigation can pay big dividends in preventing problems down the line.
What is the purpose of an air release valve?
Air Release Valves, or Air Relief Valve function to release air pockets that collect at each high point of a full pressured pipeline. An air release valve can open against internal pressure, because the internal lever mechanism multiplies the float force to be greater than the internal pressure.
How does an irrigation flush valve work?
Does a sprinkler system need a check valve?
Without check valves built into the body of the sprinkler, water leaks out of the lowest sprinkler in a zone. Check valves prevent this type of drainage from happening. Sprinkler head check valves also help to conserve the amount of water needed to fill the pipes each time the sprinklers begin running.
How do you drain a manual irrigation system?
Draining the irrigation lines for a manual irrigation system is like an automatic system, however you will need to manually adjust the zone valves. Shut off the mainline by closing the valve.
When to close the automatic drain valve on an irrigation system?
When all the water has drained out, close all the manual drain valves. Use when automatic drain valves are located at the end and low points of the irrigation piping. These will automatically open and drain water if the pressure in the piping is less than 10 PSI.
How does air vent work in drip irrigation?
Air venting as system fills with water. System full and pressurized, water fills valve and closes of the vent. At system shutdown, reduced pressure allows float to drop and air is drawn into system preventing vacuum conditions. As the name implies, this valve, also known as a double orifice valve, does the job of the other two in a single unit.
How do I winterize my lawn irrigation system?
The first step is to shut the water supply off at the main sprinkler shut off valve. This is typically located near the water meter or near the foundation of your home. Then you can connect the compressor to the irrigation system at the “back-flow preventer” or at the “winterization fitting”.
Draining the irrigation lines for a manual irrigation system is like an automatic system, however you will need to manually adjust the zone valves. Shut off the mainline by closing the valve.
Can a drain valve be installed in a sprinkler system?
An automatic drain valve in these lines can help by draining the water down and out of the pipes before it can freeze. Here is a quick overview of how to install an automatic drain valve in a sprinkler system: Turn the sprinkler system off at the valve for the various zones.
How does an air vent in an irrigation system work?
When your irrigation system shuts down most of the water drains out through the emitters or any auto drain valves you might have installed and is replaced by air. Additionally, pumps can introduce air into the system. Lastly, water itself contains approximately 2% air by volume.
When to drain a sprinkler system for the winter?
Draining a sprinkler system in the fall before the cold sets in for the year shouldn’t take very long and by following these simple steps you can guarantee you will get the longest life out of your irrigation system. Find the main water valve to the irrigation system and turn it off.
