Why is one zone of my sprinkler system not working?

Why is one zone of my sprinkler system not working?

Each zone consists of several sprinkler heads controlled by a valve that is electrically activated. If a single zone is not working, the problem is usually an electrical issue or a defective …

How does a sprinkler system work on a lawn?

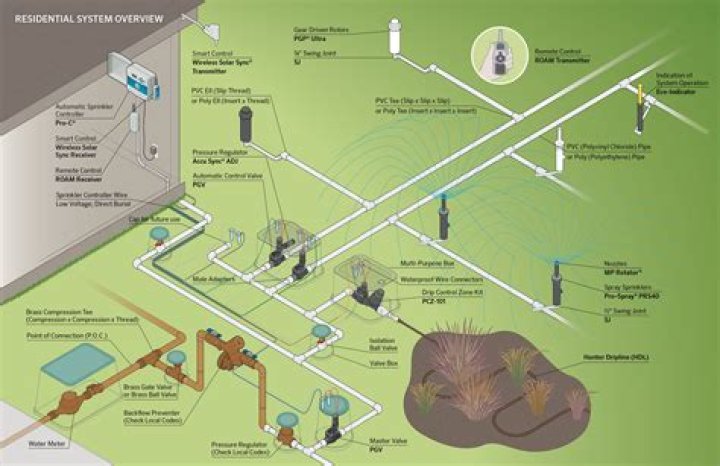

A lawn sprinkler system is usually divided into two or more zones that water independently of each other. Each zone consists of several sprinkler heads controlled by a valve that is electrically activated.

How can I tell if my sprinkler system is on?

Check that the water is on at the meter and at the backflow control valve if you have one (its in a green box). Once you verify that the sprinkler system is getting water pressure, you should then find the valve that controls the particular zone in question. Manually turn it on (its in a round green box usually).

What should the ohms be on my sprinkler system?

Touch one lead to the common terminal and the other lead to the terminal for the zone. Typically the ohms should register between 20 and 60. If the ohms number is lower than the recommendation in the owner’s manual, the solenoid switch that activates the sprinklers is defective.

How many zones does my sprinkler system have?

An average system has 6-10 zones of sprinkler heads mixed with rotor heads, spray heads, and dripline. The system would possibly require a little bit of digging under walkways and the ground would be a medium difficulty to work with.

How does sprinkler system zones work?

When the zone needs water, according to the schedule programmed into the controller, a switch activates a valve allowing the water to flow into that zone, much like you turning on your light. When the preset time for sprinkling that zone is up, the valve is closed by means of the switch in the controller. Lights out.

How many sprinkler zones do I have?

Another way to think about it is if you can remember how many minutes you have in between your sprinkler turning on to water the front zone and moving say to the left side of your house (another zone) and then your back yard (another zone). So this would be 3 zones.

Is there best sprinkler for windy areas?

The best sprinkler to use in windy conditions in large yard areas, such as lawns, is a rotary sprinkler. Projecting an individual water stream, this sprinkler head moves within a set degree range, such as 40 degrees, to cover a particular yard area.

Why are multiple sprinklers running at the same time?

The sand got into the diaphragms in the valves and blocked the little pin holes that allow the valves to close. That, combined with lowering the water pressure slightly, would not allow the valves to close. Thus, multiple stations would be running at the same time.

What should I do if my sprinkler system won’t stop running?

The fix could be a very simple one. All modern automatic sprinkler systems have electric solenoid valves. These valves can be operated electrically from the controller or timer, they can also be operated manually at the valve by simply turning a lever or bleeder screw.

Why is my sprinkler station not working?

Each zone consists of several sprinkler heads controlled by a valve that is electrically activated. If a single zone is not working, the problem is usually an electrical issue or a defective controller or solenoid.

Why would a sprinkler not work?

There are several reasons a automatic sprinkler may not work. Usually the most common reason would be improper installation practices in which the heads seat gets distorted due to slipping of the tool used to tighten it or improper torque , you should always use the head wrench of the manufacturers for…

What is a sprinkler zone valve?

Sprinkler systems have valve controls for an area, or zone. Sprinkler valves have an electrical solenoid on top that receives a signal from the controller as to the time and duration of an irrigation schedule. Systems require annual maintenance before the first use to flush any debris or sand in the water pipes.

How does a sprinkler system work?

The sprinkler heads work on a pressure system that when the water goes through the pipe, it pushes them up above the ground. When the water pressure stops, they retract back down to ground level.
