Why does my GFCI power outlet not reset?

Why does my GFCI power outlet not reset?

A GFCI or GFI outlet may not reset because there’s a ground fault occurring at a regular outlet that’s not working, or somewhere else downstream of the GFI. Chances are, there’s a ground-fault at one or more downstream wires, receptacles, or electrical devices. An incorrectly installed GFI may be problematic too.

Why is GFCI green but no power?

GREEN LIGHT indicates the device has passed the self-test and is providing power. RED means the device needs attention. If the GFCI will NOT reset or the solid or blinking red light continues, the device has somehow been compromised and must be replaced. NO LED means the device is in the tripped state.

Why wont my GFCI turn on?

Push Reset Button If the GFCI won’t reset or the button doesn’t pop out when you press the “test” button, there may be no power to the GFCI or you may have a bad GFCI. Pro tip: If the “reset” button trips again every time you press it, there may be a dangerous current leak somewhere on the circuit.

How do I fix an outlet without power?

Answer: The first thing to do is to unplug everything that is plugged into all the outlets that do not have power. Then reset the designated (and hopefully labeled) kitchen breaker in the breaker box by turning it off and then on again. Sometimes a breaker will look like it is not tripped but in reality it is.

What does green light mean on Leviton GFCI?

If the LED is dark when you’ve installed the device, you’ve installed the GFCI correctly. The LED is lighted after you install the device and press the Reset button. Thereafter, the little green LED assures you that the GFCI is powered and operating properly. For more information, visit Leviton.com.

What should I do if my GFCI outlet stops working?

The GFCI outlet should be tested while the circuit is on by pressing the TEST and RESET buttons. If the testing process does not restore or provide power to the outlet then the GFCI outlet is faulty. Realistically, most GFCI outlets do not last forever and may need replacing.

How do you have a GFCI plug wired?

I replaced a GFCI plug and the new one has power ‘in’ but not power ‘out’. Welcome. My name is XXXXX XXXXX would be glad to assist. How do you have it wired? Like the diagram below? Yes, except there are ‘2’ black wires & ‘2’ white wires on the Load sections Ok, and all the wires are matched pairs from the same cable?

Can a GFCI outlet be tripped in a shed?

However, the GFCI is not tripped. Anything plugged into it continues to receive power and testing/reseting it works normally, except the shed often remains without power. Sometimes waiting a while and then testing & reseting the GFCI outlet will return power to the shed.

What happens if you plug a lawn mower into a GFCI outlet?

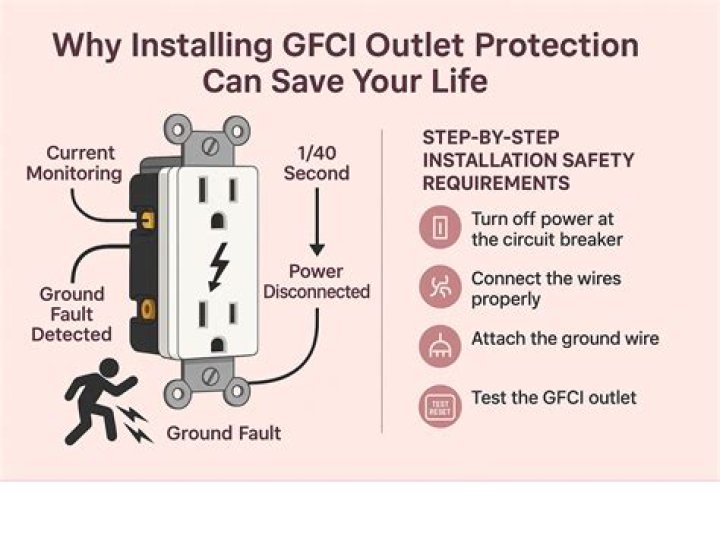

If for some reason, electricity started to flow from the hot wire to the ground and went through you, you could literally die. Or at the very least be very seriously injured and have some sort of heart attack. Lucky for you, you’ve plugged your lawn mower into a GFCI outlet! The GFCI thankfully can sense the current that is flowing through you.

What would cause a GFCI not to reset?

A GFCI or GFI outlet may not reset because there’s a ground fault occurring at a regular outlet that’s not working, or somewhere else downstream of the GFI. Also, if no power is reaching the GFI, it may not reset. The component will not function properly if power does not reach its electrical box.

Why is my electrical outlet not working?

An outlet may not be working if there is an opening in the circuit it is attached to. This is a point in the circuit where an electrical current is unable to pass. The most common reason for this to happen is because of a loose wire, which could be the cause of a wall outlet not working.

How do you reset a GFCI plug?

Resetting the GFCI Outlet. Resetting the GFCI outlet so that it will allow the flow of electricity to resume should be relatively simple. GFCI outlets have two buttons on them labeled “test” and “reset.” The reset button should be popped out after it trips. Pushing it in will reset it.

How do you install ground fault circuit breaker?

How To Install A New GFCI Outlet Step 1: Turn off the main circuit breaker in the panel Step 2: Remove the interior panel cover Step 3: Confirm the power is off with voltage tester Step 4: Screw the mounting lugs to new outlet box and fill unused holes Step 5: Mark and drill the hole for the 1/2 inch chase nipple
