Why do we prefer potentiometer for measuring EMF of a cell

A voltmeter draws current from a cell, therefore voltmeter measure terminal potential difference rather than emf, while a potentiometer at balance, does not draw any current from the cell; so the cell remains in open circuit. Hence potentiometer reasds the actual value of emf.

What is potentiometer would you prefer a voltmeter or a potentiometer to measure the emf of a battery?

A potentiometer is preferred to measure the emf of a battery, as it gives a more accurate result. This is because a potentiometer uses the null method to measure emf and it hardly draws any current from the primary circuit.

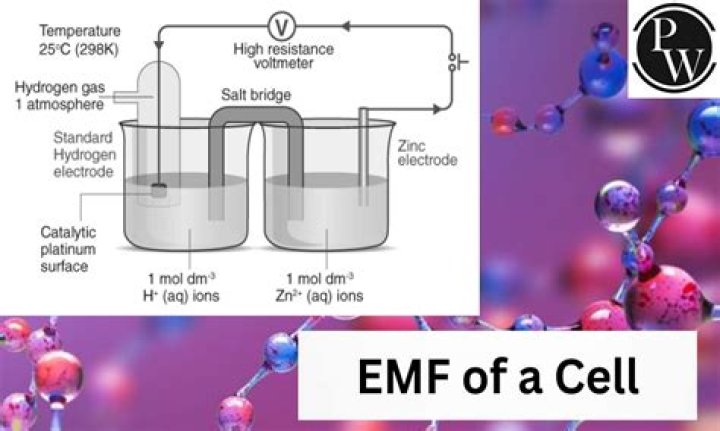

What is emf of a cell?

The emf of a cell is the sum of the electric potential differences (PDs) produced by a separation of charges (electrons or ions) that can occur at each phase boundary (or interface) in the cell. The magnitude of each PD depends on the chemical nature of the two contacting phases.

Why potentiometer is preferred the voltmeter to measure potential difference?

For measurement of potential difference, potentiometer is preferred in comparison to voltmeter because. A. Potentiometer is more sensitive than voltmeter. … A voltmeter doesn’t have infinite resistance and a potentiometer doesn’t require passage of current through the galvanometer for measurement.

Can the potential difference across a battery be greater than its emf?

The potential difference across a battery cannot be greater than its emf. Basically, emf is the maximum potential difference between the terminals of a battery when the terminals are not connected externally to an electric circuit. … However, for an ideal battery, potential difference and emf are equal.

How does a potentiometer measure potential difference?

By closing the key K1 current is passed through the potentiometer wire so that uniform potential gradient is produced along the wire. By sliding the Jockey along the wire, a point of contact P1 for which the galvanometer shows zero deflection is found. The length of the wire AP1 = l is measured.

Why does a potentiometer measure potential more accurately?

A) It measures potential in an open circuit. We know that the open circuit is in which the current in the two terminals of the component is zero and in closed circuit, the current flows through the two terminals. …

How is the EMF of a cell measured?

The EMF of the cell can be determined by measuring the voltage across the cell using a voltmeter and the current in the circuit using an ammeter for various resistances.

What are the advantages of potentiometer over a voltmeter?

The advantage of a potentiometer over the voltmeter is that the potentiometer doesn’t draw any current from the circuit in which it is used for the measurement. Whereas the voltmeter draws some amount of current in case of high voltages, which results in some errors in the measurements done using a voltmeter.

What is the principle of potentiometer?

The principle of a potentiometer is that the potential dropped across a segment of a wire of uniform cross-section carrying a constant current is directly proportional to its length. The potentiometer is a simple device used to measure the electrical potentials (or compare the e.m.f of a cell).

Article first time published on

What does EMF band mean?

Band name. The name EMF is an initialism of Epsom Mad Funkers, a name taken from a fan club of the band New Order in 1989. The song “Head the Ball”, which featured on the remix single release of “Lies”, featured the repeating lines “electromotive force” and “ecstasy mother fucker”.

Why potential difference is greater than emf during charging?

<br> Reason: The emf of a cell is always greater than its terminal voltate. During charging, E=V+ir (due to reversed current). In case of charging emf of a cell is less than its terminal voltage while in case of discharging emf Is is greater than terminal voltage.

Why is the emf of a cell greater than the PD?

The emf of a cell is greater than terminal voltage because the potential difference between the two terminals is not connected to any of the circuit. If it connects to the circuit then the voltage is automatically reduced because of the internal resistance.

What is the difference between potential and emf?

Hint: EMF is the energy per unit charge exerted by an energy source. Potential difference is the energy released when the unit quantity of electricity passes from one point to another. The full form of EMF is Electromotive force. … Voltage developed by an electrical source is called electromotive force.

Why does a potentiometer measure emf of a cell more accurately than a voltmeter?

Note: The potentiometer accurately measures the emf because it has zero internal resistance while voltmeter has an appreciable magnitude of resistance and when current moves through it there is a potential drop which the voltmeter measures accurately.

Why is a potentiometer an accurate and versatile device to make electrical measurements of emf?

A potentiometer is an accurate and versatile device to make electrical measurements of emf because the method involves a condition of no current flow through the galvanometer, the device can be used to measure potential difference, internal resistance of a cell and compare emf’s of two sources.

How can we make the potentiometer more accurate?

i.e., by increasing the length of the potentiometer wire. Sensitivity of potentiometer can be increased by: Increasing the length of the potentiometer wire. By reducing the current in the circuit by using a rheostat.

When a potentiometer can measure emf of a cell then?

The potentiometer is a device used to measure emf of the cell. It is able to measure the accurate value because they do not draw any current from the cell and the cell remains in open circuit.

Why do we prefer a potentiometer with longer wire?

A potentiometer with a longer bridge wire is preferred because such potentiometer will have a small potential gradient making it more sensitive.

What are the advantages and disadvantages of potentiometer?

It has low accuracy. It has limited bandwidth. If you use a linear potentiometer, you should apply a large force to move the sliding contact. There is a possibility of friction and wear due to the sliding of the wiper across the resistive element.

Is it possible to measure the emf of a cell correctly using a voltmeter that draws a significant amount of current?

The electromotive force (emf) of a cell is its terminal voltage when no current is flowing through it. The terminal voltage of a cell is the potential difference between its electrodes. A voltmeter cannot be used to measure the emf of a cell because a voltmeter draws some current from the cell.

How does a potentiometer measure emf?

Electromotive force is also known as voltage, and it is measured in volts. … Using a potentiometer, we can determine the emf of a cell by obtaining the balancing length l. Here, the fall of potential along the length l of the potentiometer wire is equal to the emf of the cell, as no current is being drawn from the cell.

Why emf of the cell is always positive?

By convention, when a cell is written in shorthand notation, its emf is given a positive value if the cell reaction is spontaneous. That is, if the electrode on the left forces electrons into the external circuit and the electrode on the right withdraws them, then the dial on the voltmeter gives the cell emf.

On what factors does the emf of a cell depend?

Factors affecting e.m.f. E.m.f. of a cell depends upon the material of electrodes and electrolyte used in the cell. It is independent of shape of electrodes, distance between electrodes and the amount of electrolyte.

How does a potentiometer compare emf of two cells?

Measure the EMF (E) of the battery and the EMFs (E1 and E2) of the cell and see if E1 > E and E2 > E. Connect the positive pole of the battery to the zero ends (P) of the potentiometer and the negative pole through the one-way key, low resistance rheostat, and the ammeter to the other end of the potentiometer (Q).

How a potentiometer is used to measure the internal resistance of a given cell?

Potentiometer is a device used to measure the internal resistance of a cell, to compare the e.m.f. of two cells and potential difference across a resistor. It consists of a long wire of uniform cross sectional area and of 10 m in length. … The wires are joined in series by using thick copper strips.

What is the principle of potentiometer with the help of a circuit diagram explain how emf of two cells can be compared?

Working principle of Potentiometer: When a constant current is passed through a wire of uniform area of cross-section, the potential drop across any portion of the wire is directly proportional to the length of that portion. E1, E2 is the emf of the two cells. 1, 2, 3 forms a two-way key.

Are EMF still going?

EMF began in 1989. … EMF is still going and this year (or early next) there will be a 30th anniversary release of their albums.

Which member of EMF died?

Bassist Zac Foley of dance-rock group EMF, who had a #1 hit with “Unbelievable” in 1991, died Thursday at age 31.

Why is the terminal potential difference of a cell less than emf while discharging?

When a cell is in closed circuit, i.e., when current is drawn from it, then the potential difference between its electrodes is called the terminal voltage. It is always less than the e.m.f. because when charge flows in a circuit, some energy is spent in the flow of charge through the electrolyte of the cell.

What is the relation between emf E and terminal potential difference V in charging mode?

The voltage output of a device is called its terminal voltage V and is given by V = emf − Ir, where I is the electric current and is positive when flowing away from the positive terminal of the voltage source.
