Which is the best push to connect angle stop valve?
Which is the best push to connect angle stop valve?

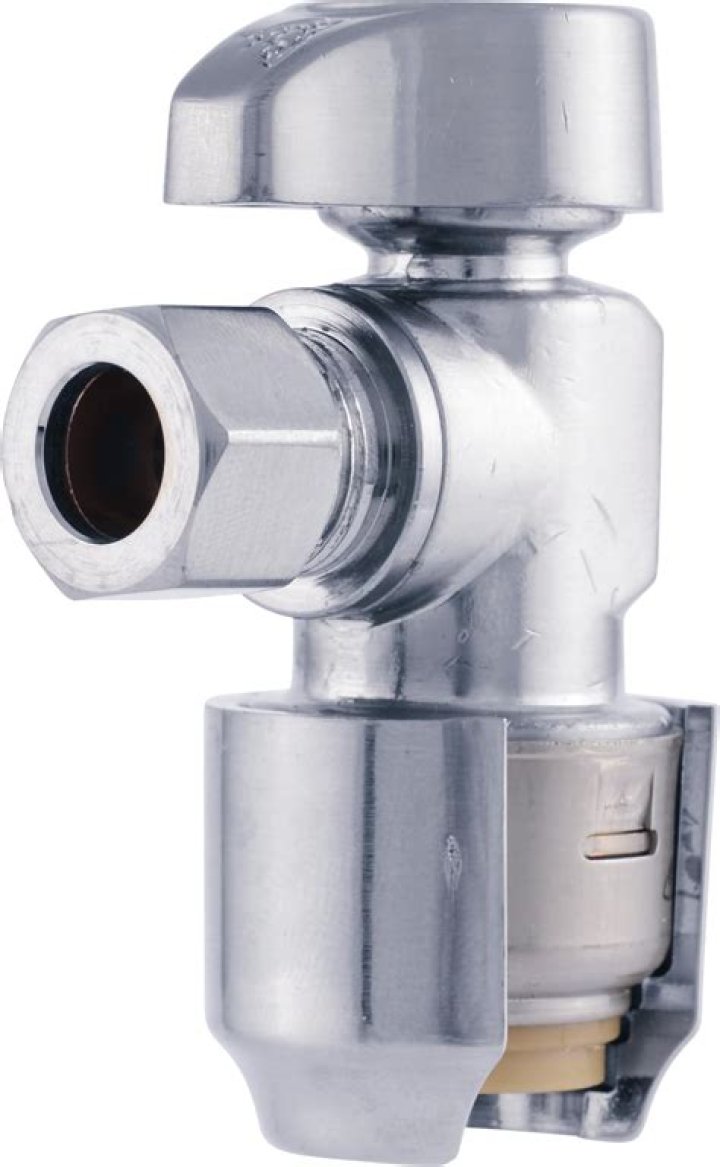

Innovative design with 1/2 in. push-to-connect inlet makes for quick installation and quarter-turn full-port brass ball valve makes for easy operation. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors. Sleek chrome finish for an attractive appearance. Quarter-turn full-port brass ball valve.
When to use an angle stop or straight stop?
Angle Stops Most often used for connecting wall stubouts to supply lines for a fixture, such as a toilet or faucet, an angle stop provides an easy way to turn off the water to just that fixture instead of the entire house. Pipe stubouts extending from the floor typically utilize straight stops for connecting to supply lines.
What does compression style and angle stop water supply valves mean?
Refers to the inside diameter of the pipe which varies by thickness of the pipe. The outside is a constant size and is always 1/8″ larger than the nominal size. Example: 1/2″ nominal is always 5/8″ O.D. Q. “What does compression style and 1/4 turn style (angle stop or straight stop) mean?” A.
What kind of adapter do I need for my shower?
Adapter adds an additional 15 degrees of adjustability to your existing shower head Easily attaches between your shower arm and shower head Works with all shower head types including: hand helds, rainfall, fixed, filtered and more.
How does an angle stop water supply valve work?
A. Angle or straight stops have an inlet that is either 1/2″ fip (female iron pipe) or 5/8″ o.d. copper compression. The 1/2″ fip stops are for attaching to threaded pipe nipples. The copper compression fittings are designed to attach to the smooth outside surface of copper pipe. 5/8″ o.d. compression would fit a 1/2″ nominal piece of copper.
Angle Stops Most often used for connecting wall stubouts to supply lines for a fixture, such as a toilet or faucet, an angle stop provides an easy way to turn off the water to just that fixture instead of the entire house. Pipe stubouts extending from the floor typically utilize straight stops for connecting to supply lines.
Can a quarter turn angle stop valve be used?
Ideal for maintenance and repair without having to shut-off water to the entire home. No special tools, crimping, glue or soldering required. Faster install time and ease of use reduces risk of errors. Quarter-turn full-port brass ball valve. Typically used on stub-outs coming out of the wall.
How does a multi turn angle valve work?
A multi-turn angle valve shuts-off the water via compression in the valve. It’s the compression aspect in the valve that is guaranteed to fail after a lot of use or simply the passage of time. Job #1 when I’m doing a rehab is to replace every single compression shutoff valve in the house with a quarter turn shutoff valve.
