Where is the gable on a roof

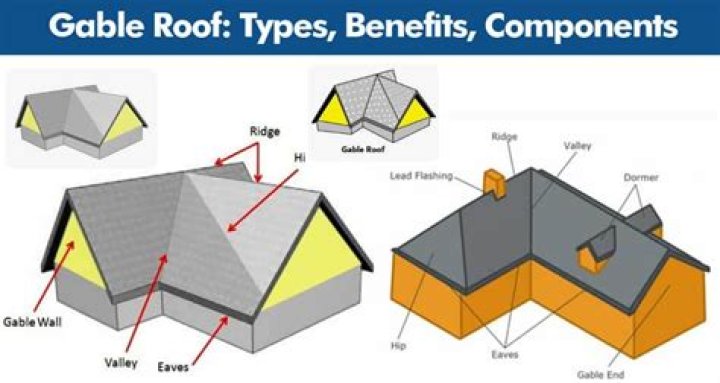

A gable is the generally triangular portion of a wall between the edges of intersecting roof pitches. The shape of the gable and how it is detailed depends on the structural system used, which reflects climate, material availability, and aesthetic concerns.

What is roof gable end?

In gable. …of a ridge-roofed structure, or gable end, usually has straight sides, follows the roof’s slope, and is often bounded by the roof’s overhanging eaves. If the gable end projects above the roof level to form a parapet, however, its silhouette may be one of many types—such as the crowstepped, catstepped,…

Where do gable roofs come from?

Gable roofs date back to the early ancient Greek times where they were used in temples. The roofs have been architectural staples in northern Europe and America ever since. A building that faces the street with its gable is called a front-gabled building.

What is the difference between a gable roof and a hip roof?

The main difference between a hip and gable roof are the slopes on its sides. On a hipped roof, all sides slope downward to the home’s walls. Gable roofs only have two triangle-shaped slopes that extend from the bottom of the roof’s eaves to the peak of its ridge.

Where is the gable of a house?

A gable is a section of wall located at the end of a pitched roof, between the edges of the intersecting pitches. It is usually triangular and extends from the eaves to the ridge, although the shape and detailing depends on the particular structural system used for the roof.

Are there Gables on a hip roof?

You can recognize a hip roof for its lack of any vertical sides or “gables.” Hip roofs are almost always at the same pitch or slope, which makes them symmetrical about the centerlines. The degree of the pitch or slope is referred to as the hip “bevel”. Hip roofs come in a variety of styles.

Where are gable roofs most common geographically?

Types of Hip Roofs This roof looks like a pyramid, making a single peak at the top. Basic hip roofs will instead have a ridge (as shown on the hip roof above). When a pyramid roof sits on top of a gazebo or other garden structure it is called a pavilion roof.

What is a gable truss?

The gable truss serves as the ‘end cap’ for the roof. They have two top chords, one bottom chord, and multiple vertical posts. Gable trusses are built on each end of the roof framework to support roof sheathing. Gable trusses will cost anywhere from 25% to 50% more than standard-style trusses.

What is the pitch of a gable roof?

More common gable roofs will have a higher slope ratio or fraction from 4/12 to 9/12. And roofs with a steeper pitch/steep slope, you could see a fraction up to 18/12 or higher.

What is gable made of?

Almost any type of roofing material can be used on a gable roof, such as asphalt shingles, cedar shakes, metal or tiles made of terra cotta, clay, or concrete. Asphalt is one of the most common materials used for a gable roof, especially if it has a dormer, hips and valleys, because it can reduce the chance of a leak.

Article first time published on

What is a building gable?

gable, triangular section of wall at the end of a pitched roof, extending from the eaves to the peak. … The former method is in general use in wooden and other small buildings with pitched roofs, while the latter method is used in larger and more monumental masonry structures, particularly those in the Gothic style.

How does a gable roof work?

Gable framing uses simple but strong triangular geometry. … When you see that shape, you know you’re looking at a gable roof. They’re the easiest and least expensive to construct. Carpenters use three straight pieces of lumber to form the sides of the triangle — two for rafters and one for a ceiling joist.

What are the parts of a roof called?

Roof plane: This is the surface of the roof. …
Ridge: This is the top or peak of the roof, where two roof planes meet.
Valley: This is where two pitched roof faces connect and project inward. …
Dormer: This is a roof feature that projects out from the roof face.

Where are the eaves on a house?

Eaves are the edges of the roof that extend over the side of a building and overhang the face of the wall.

What is a gable roof structure?

A gable roof is a roof consisting of two sections whose upper horizontal edges meet to form its ridge. The most common roof shape in cold or temperate climates, it is constructed of rafters, roof trusses or purlins.

Are Gables expensive?

Gable roofs are very popular and with good reason. … Due to their rather simple design, gable roofs are often less expensive than other roof styles. The initial construction cost is lower, and because of the steep slope and reduced risk of water damage, you won’t have to worry about maintenance costs in the future.

What is open gable roof?

OPEN GABLE ROOF – a hip roof on a square structure, where all sides join to form a single peak. ( Also known as a pyramid roof) BOX GABLE ROOF – a type of hip roof, where each side includes two different sloping angles with the lower angle much steeper than the upper angle.

How do you find the pitch of a gable?

Find the pitch. For a simple gable roof, the span (wall to wall) will be twice the size of the run (wall to ridge, horizontally). Divide the slope by two to get the pitch. For a roof with the ridge above one wall, the span is the same as the run. The slope is the same as the pitch.

How do you find the gable angle?

Finding the angle Now measure the distance between the lower corner of the siding and the gable. All that is left is to cut off the top of the piece the distance you measured on the bottom. Cut your angle and check it for a good fit. It doesn’t matter how steep or flat the angle is, this method will work.

How do you measure for a gable?

Measure from the bottom of roof/top of your home’s side to the peak of your roof. Write down the calculation, then divide it by 2. Multiply this number by the width of your home (#2 in the section above). This is the square footage of your gable and should be added to your original home area number.

What does a roof truss sit on?

The trusses are fist stacked on top of the walls, either by hand or with a crane. These trusses went up in about four hours. They are on 24-inch centers. The trusses are tied to the walls with small metal plates.

What are the 3 types of trusses?

Gable Trusses. A variety of the trusses shown above fit into the common or gable truss category, including the King Post, Queen Post, Howe, and Double Howe trusses. …
Hip Truss. …
Scissor Roof Truss. …
Attic Truss. …
Mono Truss. …
North Light Roof Truss. …
Flat Truss. …
Gambrel Truss.

What is gable bracing?

The horizontal braces are used to transfer the wind forces applied to the gable end into the roof and ceiling and to distribute these forces over a large enough area to avoid local failures of the roof sheathing, ceiling drywall or plaster.

Why are house roofs triangular?

A triangular shaped structure or peak is created on the side or facing the front. … Because of its triangular shaped slope, it allows rain, leaves and any other remains or weather damage to fall off the roof an away from the structure. Pitch and steep grades makes gabled roofs different from each other.

What material is best for Gables?

Asphalt Shingles. Asphalt is the most popular roofing material and is a very common choice for gable roofs. …
Cedar Shake. Cedar shake is a high-quality wood that’s been a staple for gable roofs for generations. …
Tile. …
Metal.

Where is the hip on a roof?

The hip is the external angle at which adjacent sloping sides of a roof meet. The degree of such an angle is referred to as the hip bevel. The triangular sloping surface formed by hips that meet at a roof’s ridge is called a hip end.

What are the 6 roof parts?

Starter Shingles. The first layer of shingles at the roofs edge differs for asphalt and tile roofing. …
Flashing. …
Underlayment. …
Roofing Material. …
Ventilation. …
Hip and Ridge Shingles or Caps.

What is the basic structure of a roof?

The major parts of a residential roof It consists of rafters and trusses, which are beams that form the shape of the roof and support the sheathing or the next layer. Drainage features are also established during the roof structure phase.

What are the square things on my roof?

The melting snow re-freezes when it reaches the overhangs of your roof where there is no warm air from your house to continue melting the snow, causing an ice dam to form higher and higher. …

What are Gables on a house?

A gable is the generally triangular portion of a wall between the edges of intersecting roof pitches. … Sharp gable roofs are a characteristic of the Gothic and classical Greek styles of architecture. The opposite or inverted form of a gable roof is a V-roof or butterfly roof.

What is eaves a part of?

Eaves are the underside of your roof – specifically the part of the roof that attaches to and juts out from the house.
