Where is the 1225 cartridge on a Moen kitchen faucet?

The 1225 is a water flow cartridge built in directly below the faucet handle and controls both volume and temperature. It is commonly used in Moen single handle faucets produced prior to 2009 (date varies based on style and model). The water supply shut off valves must be turned off- see article How to Turn Off the Water Supply to the Faucet.

How long does it take to replace Moen faucet cartridge?

If your the original owner of the faucet Moen will ship the cartridge to you free of charge. Once you have the free warranty replacement kit and the proper tools it’s very easy to do. For me it took less than 15 minutes.

What’s the best way to loosen a 1225 cartridge?

Using the plastic twisting tool (#2), provided in the 1225 cartridge kit, rotate the cartridge (#1) 1/4 of a turn (90 degrees) in either direction to help loosen the cartridge (#1). 3. Remove the twisting tool (#2) and raise the stem of the cartridge (#1) until it stops.

Can a Moen Cathedral spout faucet be repaired?

Most of Moen’s single handle cathedral spout kitchen faucets will likely be repaired the same way. If your the original owner of the faucet Moen will ship the cartridge to you free of charge. Once you have the free warranty replacement kit and the proper tools it’s very easy to do. For me it took less than 15 minutes.

How do you reinstall a water faucet cartridge?

To reinstall the cartridge into your faucet assembly, reverse the steps that you followed to remove the old cartridge. Reinstall the retaining clip, the limit stop and the washer onto the cartridge. Fasten the escutcheon to the wall. Replace the handle adapter, and finally secure the handle using the hex key.

Is there a warranty on Moen 1200 faucets?

As Moen’s warranty backs the kitchen and bathroom valves and faucets, the cartridge replacement parts will surely not be left out. Both the Moen 1200 and 1225 cartridge series are covered with a limited lifetime warranty of up to one year.

How do you reinstall a Moen faucet cartridge?

Push the cartridge straight into the valve, making sure that the ears of the cartridge are lined up precisely with the clear tabs filling the front and back center openings of the valve body, or 12:00 and 6:00. To reinstall the cartridge into your faucet assembly, reverse the steps that you followed to remove the old cartridge.

What are the different types of Moen faucets?

Moen manufactures many types of faucets that use the 1225 cartridge. The different faucet categories are based on where the on/off handle is located. Refer to the images below based on your handle location.

Can a Moen single handle faucet be replaced?

The MOEN Single-Handle Replacement Cartridge works with many MOEN single-handle bathroom sink and kitchen faucets. The cartridge is made with cast metal and plastic for strength. The MOEN replacement cartridge installs quickly and easily, with instructions included. MOEN faucet cartridge is a genuine part

How do you put a Moen cartridge into a valve?

Push the cartridge straight into the valve, making sure that the ears of the cartridge are lined up precisely with the retaining clip notch with the clear tabs filling the front and back center openings of the valve body, or 12:00 and 6:00.

What do you need to install Moen 1200 cartridge?

Next, the basic steps are to disassemble the handle, remove the cartridge, reinstall the new cartridge, and test your water. You should have the following tools available to you before you start: adjustable wrench, channel-lock pliers, open-ended wrench, safety glasses, flashlight, and screwdrivers.

Can a one handle Moen cartridge be replaced?

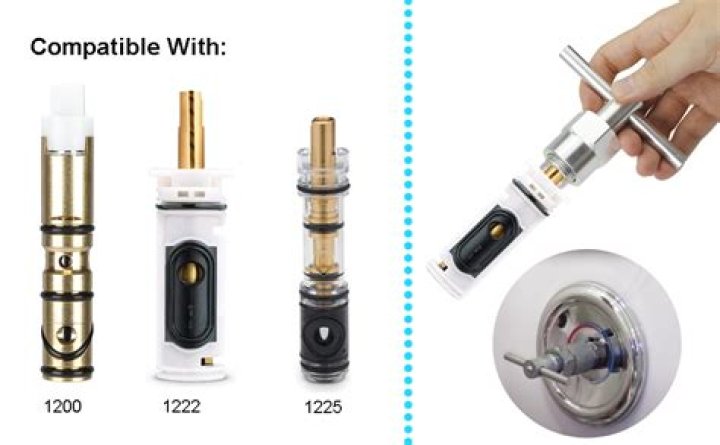

Currently used as a replacement cartridge for older one-handle faucets. It is not compatible with newer faucets, which are now designed around the 1255 Duralast® cartridge. Brass construction; 180-degree rotation from hot to cold. There is no repair kit available for the 1200 cartridge, it can be replaced with a new 1200 or a 1225 cartridge.

Is the Moen 1224 a two handle or three handle?

Prior to the introduction of Duralast® two-handle cartridges, the 1224 was designed to support all Moen two- and three-handle valves, including pot fillers as well as two- and three-handle non-pressure balancing tub and shower faucets. Stainless steel piston, Acetal shell for reduced corrosion, 90-degree rotation for hot and cold.

When did Moen one handle kitchen faucets come out?

Introduced in 1981, the patented 1225 Magnum non-metallic cartridge is impervious to corrosion and mineral build-up and is designed to allow line trash to pass through. Fits Moen one-handle kitchen faucets launched prior to 2009 and Moen one-handle lavatory faucets launched prior to 2011.

Can a Moen single handle sink be replaced?

What should I do before installing new Moen cartridge?

If there are no shutoffs under the sink, you would need to shut the water off to the home. We recommend to always flush the valve before installing the new cartridge: Clean the inside of the valve body with a soft bristled nylon brush (e.g. old toothbrush), to remove any mineral buildup.

Where is the retaining clip on a Moen cartridge?

Pull up on the stem of the cartridge to relieve any pressure in the valve. Then remove the washer and limit stop. ***This retaining clip is located in a recessed slot. It may be necessary to use a paper clip or something thin to remove this clip. You are now ready to remove the old cartridge.

How do you tighten a 1225 cartridge faucet?

1. Using the plastic twisting tool (#2), provided in the 1225 cartridge kit, rotate the cartridge (#1) 1/4 of a turn (90 degrees) in either direction to help loosen the cartridge (#1). 2. Remove the twisting tool (#2) and raise the stem of the cartridge (#1) until it stops.

How to rotate a Moen 1225 cartridge faucet?

Rotate the stem of the cartridge (#1) so the small notch is facing forward. If the hot and cold are reversed, rotate the stem of the cartridge (#1) 180 degrees. For additional information on Moen products visit solutions.moen.com and select the type of faucet you are repairing.

What’s the replacement cartridge for a Moen shower?

Cartridge 1222 – (SHOWER FAUCET) Single-handle replacement cartridge, Posi-Temp®. Watch the 1222 Cartridge Removal & Installation Video: Cartridge 4000 – Unfinished replacement cartridge. This 4000 Cartridge does not have a Removal & Installation Video.

How to take a 1225 cartridge out of a faucet?

Remove the twisting tool (#2) and raise the stem of the cartridge (#1) until it stops. Using pliers, grab the stem of the cartridge (#1) and pull the cartridge (#1) out. This may require some effort.
