When you put on the brakes by pushing down the brake pedal

You put on the brakes by pushing down the brake pedal. (It is also called the foot valve or treadle valve.) Pushing the pedal down harder applies more air pressure. Letting up on the brake pedal reduces the air pressure and releases the brakes.

When you apply the brakes by pushing down on the brake pedal?

When you put on the brakes by pushing down the brake pedal: The air pressure is reduced to the brake pads. Air pressure is applied to the brake pads.

What is the proper method for applying pressure on the brakes?

Pump the pedal lightly and rapidly b. Press on the brake pedal as hard as you can, then release the brakes when the wheels lock; and when the wheels start rolling put the brakes on fully again.

When the driver uses the brake pedal which brake system applies and releases the brakes?

Air brakes are really three different braking systems: service brake, parking brake, and emergency brake. The service brake system applies and releases the brakes when you use the brake pedal during normal driving.

When you apply your brakes the air brake system works with an electric switch by air pressure to turn on the brake lights?

FrontBackFront wheel brakes are good under all conditions.TrueWhen you put your brakes on the air brake system works with an electric switch, by air pressure to turn on the brake lights.TrueWhat do air brakes use to make the brakes work?Compressed air

What does Compounding the brakes mean?

Park-brake control valve. CAUTION: Compounding the brakes happens when a service brake application is made with the park brake still applied. This can result in damaged brake components and possibly brake failure. To avoid compounding, the park brake should be released before a foot brake application is made.

Where is the safety relief valve usually located?

A temperature pressure relief valve is a valve that’s located somewhere near the top of your water heater. The valve has a lever that can be lifted up or down and a discharge pipe that runs from the valve straight down to the bottom of your water heater.

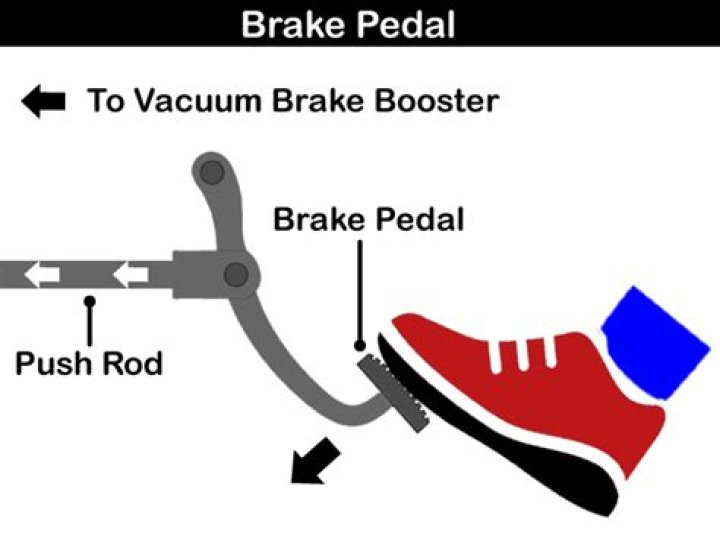

What is the function of brake pedal?

The brake pedal is located on the floor to the left of the accelerator. When pressed, it applies the brakes, causing the vehicle to slow down and/or stop. You must use your right foot (with your heel on ground) to exert force on the pedal to cause the brakes to engage.

What are spring brakes used for?

Spring brakes for emergency braking and parking They apply when air pressure leaves the brake chamber and release when air pressure builds up in the chamber. Spring brakes use a different type of brake chamber from service brakes.

What does the foot brake send to all of the brakes?

The foot brake sends air to all of the brakes on the vehicle (including the trailer(s)). There is much less danger of causing a skid or jackknife when using just the foot brake. Never use the hand valve for parking because all the air might leak out unlocking the brakes (in trailers that don’t have spring brakes).

Article first time published on

When using the controlled braking method in an emergency situation you should?

Apply the brakes about halfway, but keep the wheels rolling. The controlled braking method for emergency stops involves applying the brakes as hard as you can without locking the wheels. Keep steering wheel movements small when braking in this way.

What is the proper method of braking on long downhill grades?

What is the proper method of braking on long downhill grades? –Apply the brakes just hard enough to feel a definite slowdown. speed, release the brakes. This brake application should last about 3 seconds.

Should you pump air brakes?

Pumping the brakes repeatedly causes the air to escape faster than it can be replaced. Once the pressure drops to low your truck air brakes won’t operate (you won’t be able to stop). The components of the truck air brakes are what make up the entire braking system. The drum is what houses the braking mechanism.

What activates the stop switch?

Activates the brake lights when a service brake application is made by the driver.

How does an air brake switch work?

The stop light switch is an electro-pneumatic switch and operates in conjunction with the brake valve and stop lights by completing the electrical circuit when a brake application is made. When a brake application is made, air pressure from the brake valve enters the cavity below the diaphragm.

When you press the brake pedal compressed air is released from?

When you press the brake pedal, compressed air fills the service brake chamber, causing the diaphragm to move and push out the pushrod to apply the brakes (Diagram 3-1). When air pressure is released, the pushrod is returned to its original position by the spring inside the chamber (Diagram 3-2).

What is the difference between a safety valve and a relief valve?

Relief Valves are designed to control pressure in a system, most often in fluid or compressed air systems. These valves open in proportion to the increase in system pressure. … Unlike relief valves, safety valves open immediately and completely to avoid a disaster, rather than to control the pressure of a system.

What does a relief valve do?

Relief valves are designed to protect compressed air systems from over-pressurisation by releasing excess pressure. Pressure acts against the valve seat and the force generated opens the valve against a spring tension.

What causes a pressure relief valve to fail?

If your system is above pressure and your pressure relief valves have not released, this is likely a functional pressure relief valve failure. … Contaminants, like dirt, lint, rust, sludge, or even the misalignment of the valve can cause the pressure relief valve to stick.

What is a brake treadle valve?

The treadle valve is shown in Figure 2-6. Its function is to regulate the air pressure in the service line (blue line) that controls how forcefully each brake is applied.

What does Compounding the brakes mean CDL?

Compounding is the combination of two forces: the force applied by the spring brake chamber and the service brake chamber. … Allows the driver to exhaust air out of the spring parking brake circuit to apply the brakes or pressurize the circuit to release them.

What is pushrod stroke?

The pushrod stroke of each brake chamber is critical to the proper function of a brake system. As the brakes wear, brake pushrod stroke increases. … When brake pushrod stroke exceeds the adjustment limit, the brake is out of adjustment.

How do you check spring brakes?

5. What can you check to see if the spring brakes come on automatically? Step on and off the brake, with the engine off, the parking brake knob should pop out when air pressure falls between 20-40 psi. Get under the vehicle and pull on the spring brakes.

How are spring brakes held back?

Spring brakes are usually used to meet these needs. When driving, powerful springs are held back by air pressure. If the air pressure is removed, the springs put on the brakes.

What does it mean when your brakes push back?

A warped brake rotor is shaped like a potato chip. The high spots on the rotor will push back against each caliper piston as they revolve between the brake pads. That push back is transmitted directly to the pedal, causing it to pulsate. If the suspension bushings are worn, the steering wheel might even shimmy.

What causes brakes to slip?

If the rotors are worn, the result can manifest as pulling to one side when the brakes are pressed. … A failing wheel cylinder or caliper will result in uneven wear and application of the brakes. Another issue is worn rotors eating up the pads and grabbing or slipping.

How should you check if your service brakes are working properly?

How should you check that your service brakes are working properly? Wait for normal air pressure, release the parking brake, move the truck forward slowly, and apply the brake pedal firmly. You just studied 70 terms!

What is the trailer hand valve?

The trailer hand valve is used to apply the trailer service brakes independent of the towing vehicle’s brakes. The trailer supply valve is usually a push/pull type valve near the driver that supplies air to the trailer’s brake system through the supply line.

What is emergency air line for?

Emergency Air Line. The emergency line (also called the supply line) has two purposes. First, it supplies air to the trailer air tanks. Second, the emergency line controls the emergency brakes on combination vehicles. Loss of air pressure in the emergency line causes the trailer emergency brakes to come on.

What is controlled braking?

Explanation The method of controlled braking involves applying the brakes as hard as you can without locking the wheels. If you need to make large steering adjustments while using controlled braking, you should remove your foot from the brake pedal, steer, then reapply the brakes.

What does emergency braking mean quizlet?

Emergency stab braking is: Use light steady pressure on the brake pedal. Press on the brake pedal as hard as you can, release the brakes when the wheels lock, put on the brakes again when the wheels start rolling. When you press hard on a brake pedal and apply hand valve while you stop.
