When was the Rheem MPI 325 intergrated heat pump installed?
When was the Rheem MPI 325 intergrated heat pump installed?
My machine is Rheem MPi-325 Intergrated heat pump,Energy efficient water heater, Installed in May 2012, and now no hot water,The mode are green light not on, the red light is on. and I have taken the front cover off located the control box but it does not have a reset button on the bottom left side as shown in the manual I found on the internet.
How to turn on Green led on Rheem 325 owne?
Open all of the hot water taps in the house (don‟t forget the shower). Open the cold water isolation valve fully to the water heater. The heat pump will then return to normal operation and the green LED will commence operating.
How to relight pilot light on Rheem hot water system?
To relight the pilot light check your Rheem system and/or manual which will have easy instructions on how to achieve this. Most hot water systems include an overflow outlet valve often called a relief valve which will at times relieve pressure from the hot water tank.
What kind of anode does Rheem 325 owne use?
ANODE TYPES The vitreous enamel lined cylinder of this water heater is covered by warranty where the total dissolved solids (TDS) content in the water is less than 2500 mg/L and when the correct colour coded anode is used. Page 20 INSTALLATION TYPICAL INSTALLATON – OUTDOOR LOCATION TYPICAL INSTALLATION HEAT PUMP WATER HEATER – 325L…
How does the Rheem MPI 325 heat pump work?

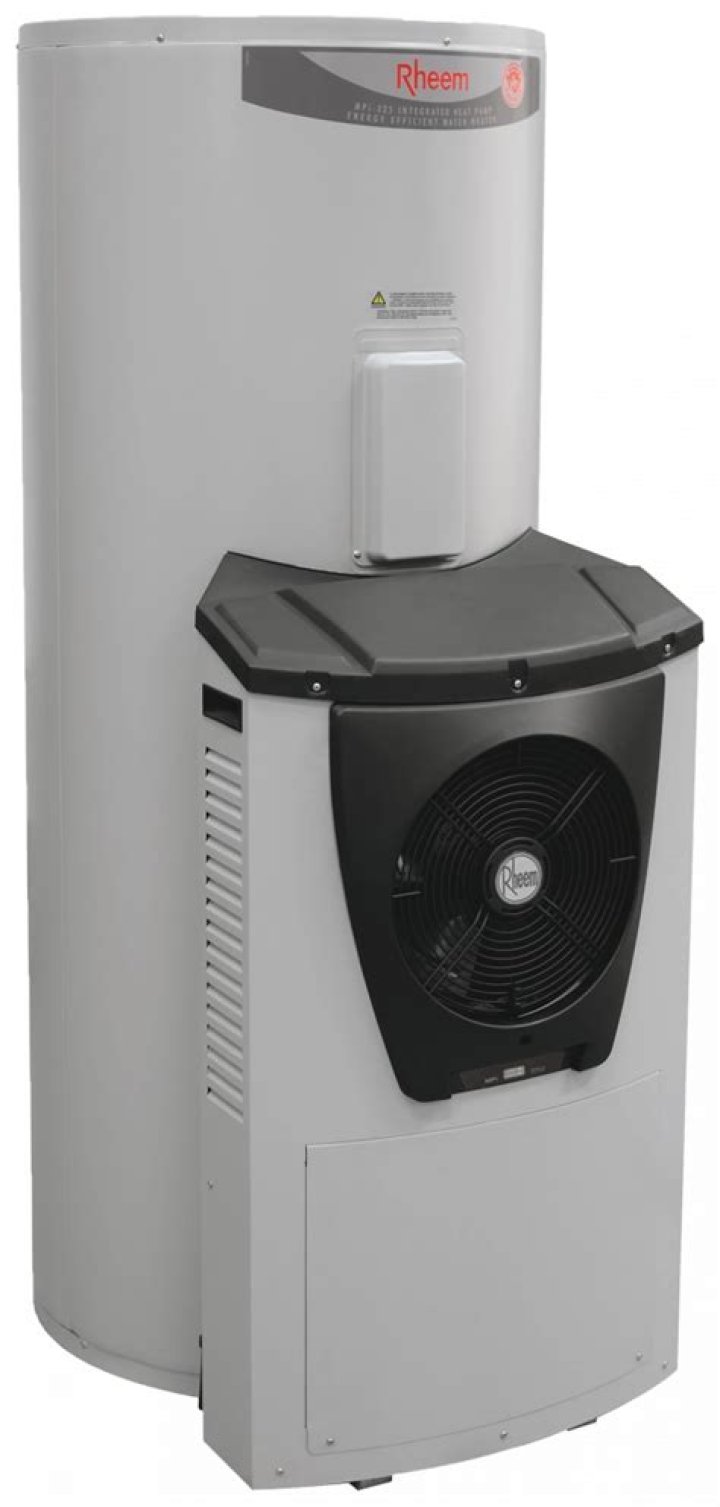

The Rheem MPi Series Heat Pump is suitable for moderate – warm climates and average size families. A heat pump works day and night as it extracts heat from the surrounding air and doesn’t rely on direct sunlight to operate. The MPi-325 Heat Pump utilises multi-pass heating of the water and its Whisper technology enables quieter operation.
Open all of the hot water taps in the house (don‟t forget the shower). Open the cold water isolation valve fully to the water heater. The heat pump will then return to normal operation and the green LED will commence operating.
What does a flashing light on a Rheem heat pump mean?
My Rheem Heat Pump has a flashing light on the monitor. What does this mean? There are fault codes that can be shown through the amount of flashing lights on the heat pump controller. They do vary depending on the unit, either 310L or 325L.
ANODE TYPES The vitreous enamel lined cylinder of this water heater is covered by warranty where the total dissolved solids (TDS) content in the water is less than 2500 mg/L and when the correct colour coded anode is used. Page 20 INSTALLATION TYPICAL INSTALLATON – OUTDOOR LOCATION TYPICAL INSTALLATION HEAT PUMP WATER HEATER – 325L…
What does 2 red flashes on Rheem heat pump mean?
What rheem technician told me is that 2 red flashes means that the heat exchanger is dead and the replacement cost will be around $800. This means that the unit can only be run on bipass and not as heat exchanger unit. That means that power consumption will be 2 to 3 times higher.
Why is my Rheem heat pump not producing hot water?
Green light indicator shows 3x Green and fan runs but whole day has no hot water. this morning i used 2 wires adapter provided connecting directly, which by pass heat pump and uses element; now it produces hot water. Pls advise what could be wrong, PCB board or anything else?
How to troubleshoot a Rheem rp13 heat pump?
Rheem RP13 Heat Pump Troubleshooting SYMPTOM POSSIBLE CAUSE CHECK OR REMEDIES Voltage present on compressor contactor Compressor start components Check start capacitor. Check potential relay. Run capacitor Check with ohmmeter Internal overload Allow time to reset.
How does the Rheem heat pump heat water?
The MPi Series Rheem Heat Pump utilises the latest environmental heating technology to efficiently heat water. Free, renewable heat energy is absorbed and processed through a refrigeration system, resulting in hot water using a third of the energy of an electric water heater.
