What size toilet flange should I use?
What size toilet flange should I use?
Standard Size The ring has slots for the bolts that hold the toilet down. The flange pipe can have a diameter of either 3 or 4 inches, depending on the size of the waste line, but a 4-inch hole works in both cases. Plumbers cut it with a hole saw or a reciprocating saw.
Are there different toilet flanges?

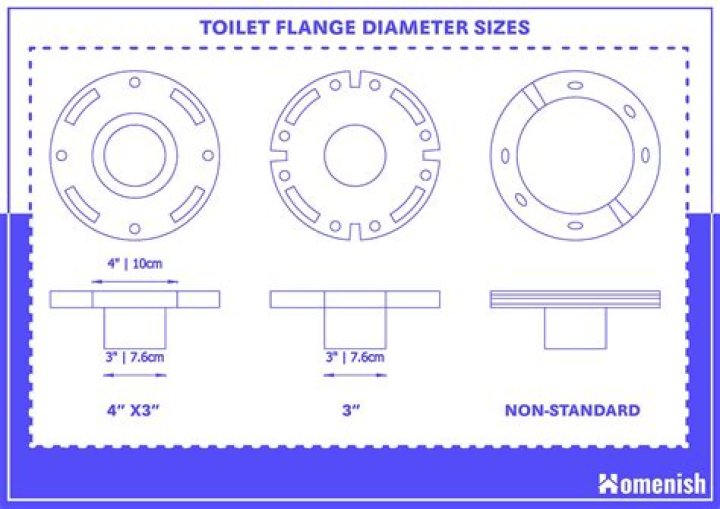

Toilet flanges come in six different types and three standard sizes with the option of an odd fit. The types are based on the material from which they are made, that is aluminum, copper, brass, stainless steel, plastic, and cast iron. The sizes also range from a four by three, four-inch, or three inches flange.
How far should the toilet flange be from the wall?
12 inches
Standard drywall is 1/2 inch thick, so the plumber should set the toilet flange at least 15-1/2 inches from the center of the flange to the wall framing. The standard distance from the back wall is 12 inches, or 12-1/2 inches from the center of the flange to the wall framing.
Which is the best brand of toilet flanges?
With a modest 35 years in the business, Danco still enjoys success as one of the top providers of some excellently designed flanges and more. Easy to install and reliable, this Danco flange repair may be used for fixing another flange or dealing with a pesky, leaking toilet.
How big is a 4×3 toilet flange in inches?
Typically the flanges are similar in size to the 4×3 flange, however. An ABS plastic flange with a 3 1/2-inch bottom diameter and a 7-inch top diameter is available.
Do you need to replace the flange on the bottom of the toilet?
If you notice water around the bottom of your toilet, you may need to replace the toilet flange. The toilet flange has two jobs; it is the pipe fitting that connects the drain of the toilet to the floor drain, and it holds the toilet securely to the floor.
Which is better ABS or PVC toilet flanges?
The flanges are designed to be fitted on 4-inch or 3-inch drainpipes and are affordable. ABS toilet flanges are made from plastic as well, and are characterized by high rigidity. They are more economical than the PVC flanges. They are also resistant to water, heat and shock.
Is the toilet flange installed correctly?
When you install your toilet flange, it should be installed on top of the finished floor, and it should also be installed perfectly level . If your flange sits even or below the floor, then it’s wrong. It has to sit evenly on top of the finished floor. This is very important. The reason being is because the toilet recesses into the flange when fully installed, but when the flange sits even or below the floor, the toilet can’t properly recess into the flange.
Should toilet flange sit flush on floor?
No. The toilet flange should sit on top of the finished floor surface. Making it flush with the floor creates a gap that is too wide for the wax seal to work properly. If you have already installed the flange you can install a flange extender to compensate for the distance.
Does the toilet flange need to bolted to the floor?
Yes, you have to screw or bolt the toilet flange to the floor. If you do not, you risk not securing the toilet enough to prevent rocking that may damage the wax seal, the drainage pipe, or the floor.
How do you replace a closet flange?
Hook the heads of the closet bolts to the underside of the repair plate, repair ring or push-in replacement and center them in the tracks. Place a new wax ring on the flange opening, replace the toilet and bolt it to the flange.
