What size do fluorescent tubes come in

Fluorescent circline tubes are typically 1 and 1/8 of an inch in diameter. Their outside diameter (which is measuring the circle from one end to the other) comes in four options – 6, 8, 12, and 16 inches.

How do I know what size fluorescent tube I need?

In order to identify which size you need, the easiest way to tell is to read the label near the base of the tube. If this information is no longer legible, you can measure the bulb’s diameter. Fluorescent tubes are measured in eighths of an inch.

How do I know if I have T8 or T12?

If no markings are available, the size in diameter of the tube is the easiest way to determine the type you have installed. T8 tubes are 1-inch in diameter and T12 tubes are 1 1/2 -inch.

What lengths do fluorescent bulbs come in?

While there are multiple types of LED and fluorescent tube lights, the three most common are T12, T8 and T5. The terminology comes from “T” for “tubular” and the diameter of the bulb in eighths of an inch, so “T8” represents a tube of 8/8ths of an inch, or 1 inch.

Where do you measure a fluorescent tube?

For length it is imperative to measure your tube to the end of the tube including the pins. Sometimes it is easier to use a tape measure than a small ruler.

What size is T8 tube?

The T8 tube has a one-inch (8/8) diameter, while the T5 tube has a 5/8 diameter.

Does T8 fit in T12?

T8 tubes are simply 1 inch in diameter versus the 1.5 inch diameter of T12 tubes. In an effort to make LED tube lights compatible with the internal dimensions of most fixtures, you will find that most LED tube lights feature a T8 or 1 inch diameter. They can indeed be used in T12 fixtures.

What is T5 fluorescent tubes?

A T5 is a type of fluorescent tube. It differs from a T12 and a T8 in its diameter. All T5s are 5/8ths of an inch (T8s are exactly 1inch thick and T12s are 12/8ths or 1.5 inches thick). T5s are 16mm in diameter making them the thinnest fluorescent tube out of the three.

Are fluorescent tubes Standard lengths?

Tube diameter in 1⁄8 in (3.175 mm)Nominal lengthNominal power (W)T1216.5 in (419 mm)15T122 ft (610 mm)20T124 ft (1,219 mm)40

Can LED tubes be used to replace fluorescent tubes?

Yes, you can replace fluorescent tubes with LED tubes or LED-integrated fixtures. If you just want to replace the bulbs, you can use plug-and-play, direct-wire, or hybrid LED tubes. Plug-and-play tubes are the easiest to install as they do not require any rewiring to the fixture.

Article first time published on

Is my ballast T8 or T12?

Replace Current Lamp You will see either T8 or T12 stamped on one side near the end with the prongs. You also will see the lamp’s rated wattage, usually 32 watts for T8 and 40 watts for T12. Measure the diameter of the lamp. T12 lamps are larger than T8 lamps, with a 1 ½-inch diameter.

What's better T5 or T8?

T5 lamps are smaller and more efficient than T8 bulbs. T5 lights are the winner between the two, they do cost about 2x more than T8 options. While T8s are cheaper upfront, T5s are a more affordable option long-term and are great for most growing needs.

Can a T8 tube replace a T12?

The easiest and lowest price option to replace a T12 is a T8 linear fluorescent. They have become the go-to option for pre-existing T12s. If you still have magnetic ballasts, switching to a T8 will require a ballast swap.

How do I identify a T8 bulb?

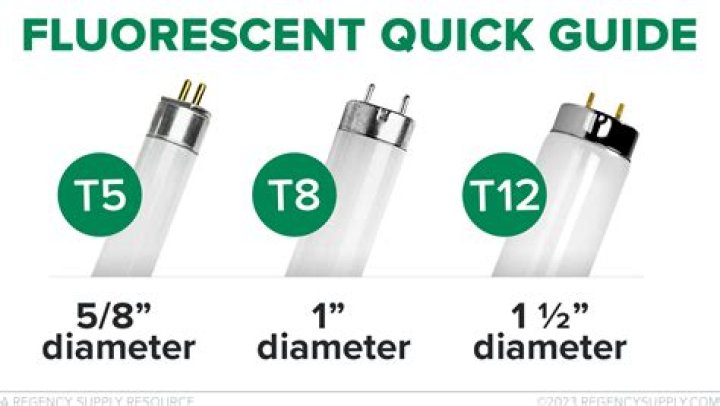

If the label is missing or illegible, you can measure the diameter to determine the size. The letter “T” will stand for tubular shape and the number will tell you the bulb diameter in eighths of an inch. T8 will have one-inch diameter, the T5 will have a 5/8 diameter, and a T12 will have 12/8 inch or 1.5 inch diameter.

Are fluorescent tubes being phased out?

The sale of halogen lightbulbs will be banned in the UK from September as part of ministerial efforts to cut carbon emissions. A ban on fluorescent lighting, which is mostly used in offices, will follow in September 2023.

Can I replace T8 with LED?

Type A – LED tube has an Integrated Driver for use on Existing Fluorescent Ballast. Type A LED tubes need an existing T8 electronic ballast to operate. … All you need to do is remove the existing T8 fluorescent lamp and install a new T8 LED Type A lamp.

What is a T8 fluorescent tube?

The “T” designation in fluorescent lamp nomenclature stands for tubular — the shape of the lamp. The number immediately follow- ing the T gives the diameter of the lamp in eighths of an inch. … A T8 lamp (on the right in the figure below) is eight-eighths of an inch, or one inch (2.54 cm), in diameter.

Are all fluorescent tubes the same?

All fluorescent lamps use the same technology, but there are several different variations and sizes.

What are the different watts and size of fluorescent tube lamp?

Bulb Type200-300 Lumens1,250-2,000 LumensIncandescent25-30 watts150-250 wattsCFL5-6 watts20 watts

What is difference between T5 and T8 fluorescent?

The major physical difference between T5 and T8 light bulbs is the length and diameter of the tube itself. The T5 tends to be slightly shorter than the T8 tube, and is significantly smaller in diameter. This factor is important to consider when looking at your fixture, because the two tubes are not interchangeable.

Can you replace T5 with T8?

T5 lamps cannot replace T12 or T8 lamps because of differences in physical and electrical characteristics. T5 lamps come in different lengths than T8 and T12 lamps. A nominal 4-foot T5 lamp is actually shorter than an equivalent T8 lamp [1149 millimeters (45.23 inches) in total].

Which is better LED or T5?

LEDs also offer increased light efficiency when dimmed as opposed to T5 fixtures and usually produce more lumens per watt in general, which decreases energy usage and thus, energy costs. A lower wattage of LED luminaire will usually be just as efficient, sometimes more, as a higher wattage T5 lamp.

What is the difference between a T5 and T10 bulb?

“Five-sided lighting” , Bulbs uses five-sided lighting in order to increase brightness and wider angle of brightness area. In fact, the history of T5 is same as late evolution of T10. We got to solve the problem that the illuminate breadth is not enough, resulting in multi-faceted illumination.

Can I put LED bulbs in a fluorescent fixture?

Many LED tubes are “plug and play”, meaning you can just install them like you would a fluorescent bulb. For this to be true, look for bulbs that are “ballast-compatible” meaning that they can use the ballast already installed in your fluorescent fixture to power the LEDs.

Can you mix LED and fluorescent tubes?

Yes, and there are advantages in mixing them. The LEDs comes on instantly, whereas the CFLs can take longer, so a mixture is faster acting than only CFLs. Even though CFLs don’t come up to full brightness instantly, their slow speed is much less noticeable with an LED or two in the mix.

How do I know what ballast I have?

You can determine whether you have a compatible fixture in seconds. Simply turn the light on, then take a photo of the fixture using your smartphone or digital camera. If there are no dark bands on the resulting image, you have an electronic ballast that will work with direct drop-in LED tubes.

How do I know what ballast to buy?

It needs to fit the electrical requirements of the lamp that it will run. When purchasing a ballast, you’ll need to read the type of lamps it’s designed for, how many lamps it operates, and the voltage the lamps will run on. Choosing the right ballast for a lamp will optimize the light output and life of the bulb.

Will a T8 work in a T12 ballast?

T8 LED lamps which are not direct-wire compatible (with ballast) will require a T8 ballast to operate, so unless the T12 ballast in the T12 fixture is replaced with a T8 ballast, a non-direct-wire compatible T8 LED lamp will not work in a T12 fixture. …

Can you use a 2 lamp ballast for 1 lamp?

A 1 lamp rapid start (series) ballast can be hard to find, but it can be replaced with a 2 lamp instant start (parallel) ballast.

What is the difference between T5 and T12 bulbs?

T5 tubes are smaller than T8 and T12 tubes, which allow them to fit into smaller spaces. They are offered in sizes of 2-5 feet in length. T5 lamps are around 40% smaller than T8 lamps and almost 60% smaller than T12 lamps.

Is T5 the same as G5?

Fluorescent G5 tube base types are a two pin fitting located at each of the tube with 5mm between the two pins. The T5 (16mm tube diameter) and T4 (12mm tube diameter) uses the G5 cap fitting.
