What should a Magnehelic gauge read?
What should a Magnehelic gauge read?
With clean filters in the unit the magnehelic guage reading will be very low, somewhere between zero and one is a good rule of thumb, although this could be higher if the airflow is higher, the higher the airflow or air velocity going through the filters the higher the clean filter pressure drop.
How do you use a Magnehelic gauge?
If you don’t know how to use one, it’s simple: The Magnehelic is attached to a static pressure tip with a rubber hose. The pressure travels through the tip and the hose, then moves the needle on the gauge. To use a Magnehelic gauge, you’ll need to drill 3/8-in test holes into duct and equipment at the right locations.
What is the unit of Magnehelic gauge?
Magnehelic gauges are available in pressure units ranging from pascals and inches of water column to pounds per square inch.
How do you read differential pressure?
Differential pressure – the third method of measuring pressure – is simply the difference between two applied pressures, often referred to as delta p (Δp). In the example, Δp = p1 – p2.
What is DP in HVAC?
HVAC systems use differential pressure switches to measure flow rates and pressures in lines and rooms. These switches help a system to efficiently and economically operate heating, ventilation, and air-conditioning systems. The pressure sensors are the core of controlling an HVAC system.
How accurate are Magnehelic gauges?
Accuracy: ±1% FS (±1.5% on -0, -100PA, -125PA, -10MM and ±2% on -00, -60PA, -6MM ranges) throughout range at 70°F (21.1°C). Pressure Limits: -20 in Hg to 15 psig (-0.677 bar to 1.034 bar).
What are Magnehelic gauges used for?
The Magnehelic® gage is the industry standard to measure fan and blower pressures, filter resistance, air velocity, furnace draft, pressure drop across orifice plates, liquid levels with bubbler systems and pressures in fluid amplifier or fluidic systems.
What does Magnehelic mean?
Magnehelicnoun. A brand of pressure gauge.
What is static pressure in HVAC?
Static pressure is a crucial aspect of heating and air conditioning maintenance. It’s defined as the resistance to airflow in ductwork or other components. A high level of static pressure indicates a problem with your HVAC equipment.
Why is Delta P dangerous?
Localised pressure differentials Commonly referred to by professional divers as delta-p (δp or ΔP), these hazards are due to a pressure difference causing a flow, which if restricted, will result in a large force on the obstruction to the flow.
What is Max differential pressure?
|Process Valves ①The “maximum operating pressure differential” is the allowable pressure difference between the inlet and outlet pressure during operation. When outlet pressure is 0MPa, the maximum operating pressure differential value is the upper limit for supply pressure.
What kind of pressure does a magnehelic Gage measure?
The Magnehelic® gage is the industry standard to measure fan and blower pressures, filter resistance, airvelocity, furnace draft, pressure drop across orifice plates, liquid. levels with bubbler systems and pressures in fluid amplifier or fluidic systems.
What do you need to know about magnehelic differential pressure?
It’s inexpensive, too. The Magnehelic®gage is the industry standard to measure fan and blower pressures, filter resistance, airvelocity, furnace draft, pressure drop across orifice plates, liquid levels with bubbler systems and pressures in fluid amplifier or fluidic systems.
What should my magnehelic Guage reading be on my air conditioner?
How big is the magnehelic gauge on an Aer?
These gauges are round, 5” in diameter for the Magnehelic and 3” in diameter for the mini-helic. These gauges are mounted on the side of the AER Control Units, but could be difficult to see from the ground.
What do you need to know about a magnehelic gauge?
Okay, so let’s look at the basic Magnehelic gauge and as you can see it’s a couple of things, just a set of magnets. It is a center that’s senses the differential pressure, the static pressure, and then it’s a helix that wind and unwind as the magnet is pulled from side to side.
How to zero out room pressure with a magnehelic?
When using a manometer or a Magnehelic, you will first zero it out to room pressure (for a Magnehelic, make sure it is level). Next, place the negative side probe in the return side of the unit after the filter but before the blower, and place the positive probe in the supply duct.
With clean filters in the unit the magnehelic guage reading will be very low, somewhere between zero and one is a good rule of thumb, although this could be higher if the airflow is higher, the higher the airflow or air velocity going through the filters the higher the clean filter pressure drop.
Is there such a thing as a magnehelic?

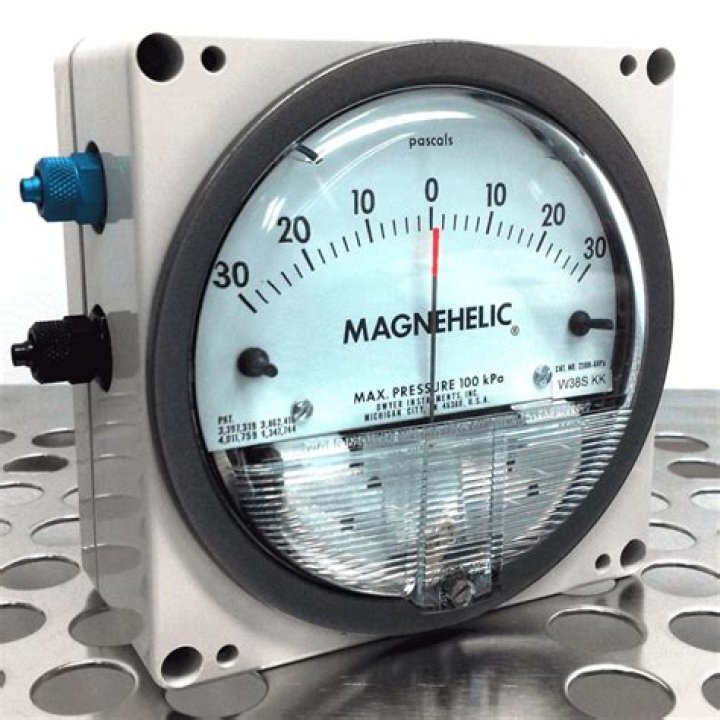

Magnehelic is a brand name for a high-quality Dwyer analog pressure gauge that comes in many different scales. Many techs will already have a high-quality digital differential manometer (like the Fieldpiece SDMN5) for reading gas pressure, which makes getting a separate Magnehelic largely unnecessary.
