What is Type NM cable
Sometimes known as “Romex,” named for one of the common brand names, NM cable is a flexible electrical cable that features an outer plastic sheathing that protects two or more insulated conductors, as well as a bare copper ground wire. …
What kind of wire is in NM cable?
Despite the NM label, the individual electrical conductors within the cable are indeed metal—normally about 65-percent copper. NM cable comes in many wire gauges, but most household circuits will use 12-gauge or 14-gauge wire, with either two or three conductors inside (plus the bare copper ground wire).
What use is NM cable suitable for?
NM Building Cable Standard NM cable is suitable for interior residential wiring, within ceiling cavities or walls and it is known as NM-8. This type of cable cannot be used in outdoor locations or buried underground. It is approved for use only in dry areas.
What is Type NMB wire used for?
NM-B is a non-metallic electrical wire used in residential building wiring for various devices and outlets. It is mostly used in devices characterized as damp or wet, such as washing machines and dishwashers. It can also be applied in switches, tile walls, and lighting.What is 2 wire NM cable?
A 2-wire NM contains one black wire (usually line) and one white wire (usually neutral) and a bare ground wire. When used in switch wiring, the white wire is sometimes used as a line wire.
Why is Romex illegal?
Staffers there said house wiring known by the brand name Romex can be dangerous if the insulation is gnawed by rodents or punctured by nails. They said the flexible insulation on the cable lacks the protection of conduit, the rigid metal tubes that encase wires.
Is Romex type NM cable?
Sometimes known as “Romex,” named for one of the common brand names, NM cable is a flexible electrical cable that features an outer plastic sheathing that protects two or more insulated conductors, as well as a bare copper ground wire.
What is the difference between UF and NM wire?
The primary difference between standard NM and underground feeder (UF) cable is in the cable construction. Standard NM cable contains wires that are wrapped with paper and a relatively loose plastic sheath. UF cable has wires that are completely encased in solid plastic.What is the difference between NM and NM-b wire?
Type NM is identified by the size of the conductors and number of them. For example, the very commonly used Type NM 12-2 cable contains two 12 American Wire Gauge (AWG) insulated conductors. … When the letter B is appended, as in NM-B cable, it indicates that the conductor insulation is rated for 90 degrees C.
What does NM-B stand for?NMB stands for non-metallic because it has a PVC jacket instead of a metal-clad jacket. It is a basic indoor electrical wire used to deliver power from an electrical box to lights, outlets and appliances.
Article first time published onCan you use nm wire outside?
Under the 2008 code, you must use UF cable anytime NM-style cable (even in conduit) exits the side of the house. That is, you are no longer allowed to put NM-B cable in watertight conduit outside of the house in wet locations.
Is NM cable safe?
Support devices that may damage the cables, such as bent nails and overdriven staples, are not permitted. NM and NMC cables should be secured at intervals that do not exceed 4½ feet, and they should be secured within 12 inches of junction boxes and panels to which they are attached.
Why is Romex wire so expensive?
The coverings are made from Petroleum products and as the price fluctuates with that the price varies as well not just the price of good copper. Because of supply and demand in the copper market. In the last 5 years copper prices have quadrupled.
Can NM cable be exposed?
Section 336-6 permits NM cable to be installed in exposed locations and has permitted this installation technique since the introduction of NM cable into the Code in the 1930s. If installed exposed, the cable must closely follow the building surface or be installed on running boards.
What is the difference between Romex and MC cable?
The primary difference when comparing Romex wire versus MC cable is the sheathing. MC cable has a metal casing, while Romex has a non-metallic sheath. … Handling: Romex cable is light and easy to handle — the smooth coating makes it simple to pull through holes and conduit.
What does the 2 stand for on a 14 2 cable?
DIY Frequently Asked Questions / What do numbers on electrical cable mean? They refer to the number and types of wire inside the cable. For example, 14-2 means the cable has two 14-gauge wires inside. 12-3 G means the cable has three 12-gauge wires plus a bare ground wire.
Can you put Romex in a raceway?
Yes, NM cable can be in conduit. In fact. NEC calls for it to be in conduit, when protection from physical damage is required.
Is it safe to splice Romex?
It must be noted that while it is possible to splice different types of Romex wire—12/2 to 12/3, for instance—you should never splice together wires of a different gauge. … Overloading a wire with more than its intended amperage could cause it to overheat, melt, and possibly catch fire.
Can you touch Romex?
As for the question of whether Romex can touch insulation or not, yes, it can. However, it is important to remember that the insulation shouldn’t come in contact with the copper inside. If the PVC sheathing is damaged, try to make a point of eliminating any point of contact.
Why is there paper in Romex wire?
1 Answer. From what I can tell, the paper around the bare grounding conductor is simply a separator. Where as the paper wrapped around all the conductors, is there to hold the assembly together while the outer jacket is applied.
What does 1 nm stand for?
The nanometre (international spelling as used by the International Bureau of Weights and Measures; SI symbol: nm) or nanometer (American spelling) is a unit of length in the metric system, equal to one billionth (short scale) of a metre (0.000000001 m).
What is the difference between nm nm?
Nm would signify Newton-metre, as upper-case n denotes Newton, unit of force. ‘nm’ however signifies nano-metre which is 10^-9 m .

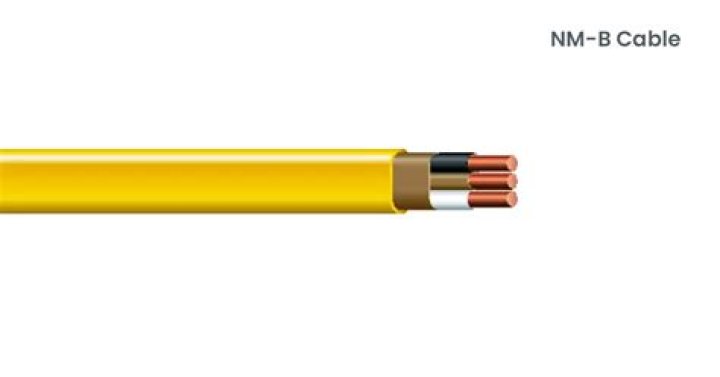

What color is NM cable?
Cable TypeNM-B# of Conductors4 Conductors w/ GroundConductor MaterialBare CopperAmpacity20Jacket ColorYellow
Is Romex suitable for outdoor use?
Romex© Outdoor Conduit. Romex is a type of electrical wire used in various applications. … Romex wires cannot be used outdoors because, if it gets wet with water, gas, oil or another solvent, these liquids could penetrate the jacket and ruin the connection by getting in contact with the bare copper ground wire.
Can type NM B Romex be exposed to corrosive vapors?
Section 334.12(B) does not allow type NM cable to be installed in wet locations or where exposed to corrosives such as chlorine but without the revised code language, sections 334.10 and 334.12(B) were in conflict with one another.
What is CU nm B W G wire?
New NM cable contains two or more insulated conducting wires and usually a bare ground wire. … A ground wire is indicated by “G,” “w/G,” or “with Ground.” The wire material is indicated by “CU” for copper and “AL” for aluminum.
How long can you run Romex?
14 AWG50 feet12 AWG60 feet10 AWG64 feet8 AWG76 feet6 AWG94 feet
What is the difference between Romex and Thhn wire?
THHN is a heat resistant thermoplastic insulated conductor, usually a single conductor. Romex is a brand name for a nonmetallic sheathed cable, it has multiple conductors inside, the insulated ones are insulated with THHN insulation.
What happens if Romex gets wet?
In most homes, ROMEX® wire is used for electricity, where the copper ground wire is wrapped in paper and then, in turn, wrapped in the live and neutral wires. If this wiring is exposed either through a break in the plastic coating or even at the socket, the moisture can be soaked up by the paper, creating rust.
Can you use NM cable in a shed?
This section was revised for the 2011 edition of the NEC by inserting the words “and their attached or detached garages, and their storage buildings” after the word “dwellings.” The new language was added to make it clear that the use of nonmetallic-sheathed cable as an exposed wiring method in one- and two-family …
Is Romex illegal?
Romex (NM) is listed for its use and is accepted throughout the United States. It just happens that IL doesn’t allow it in most of their State.
