What is the purpose of deck flashing

Deck flashing creates a barrier to prevent moisture from entering the house in the openings you create when attaching your ledger board connection. You can buy flashing either in roll form or in rigid Z- or L-shaped 10′ sheets made of stainless steel, copper or vinyl material.

Do you need flashing on deck?

Without flashing, there’s nothing to prevent water from seeping behind the ledger board that connects deck framing to the house. … As water travels, flashing carries it safely over the any crevices, cracks and gaps in the building’s exterior. If it’s going to work, flashing must be installed so no seams face uphill.

Can you install deck flashing on existing deck?

Installing deck flashing is not that difficult to do, even if the deck is already built. You will need to remove a deck board, or a section of deck boards pending if the deck boards run parallel or perpendicular to the deck ledger board. The deck ledger board is connected to the the house.

Does pressure treated wood need flashing?

A compromised structural integrity from rotted pressure treated wood can lead to the risk of a deck collapse. The lifespan of pressure treated deck structures can be extended by flashing the joists and beams with joist tape.

How do you attach flashing to wood?

Install a tube of construction adhesive in a caulking gun. Apply a generous amount of adhesive along the back of both fins of the flashing. Reposition the flashing at the deck-to-wall intersection and align the cuts at the lower edge with the sides of the corresponding joists. Press the flashing firmly into place.

Can you wrap treated wood with aluminum?

You can’t wrap treated wood on your porch or screen room in aluminum. … If so, count on replacing it in a few years after the chemicals from the treated wood cause a chemical reaction with the aluminum and it starts to corrode and flake away.

Is Joist Tape necessary on pressure treated wood?

Joist Tape: Why It’s Essential & When to Use It Even constructed with treated wood or built with dense wood such as ipe, a wood deck is eventually prone to mold, mildew, and rot. … You can protect your deck joists, double joists, rim joists, beams, ledger boards, and stringers with thin butyl tape.

Should I put a vapor barrier under my deck?

Do not install a vapor barrier beneath the deck. … Water vapor from the soil can cause severe cupping of the decking. The underside of the decking boards readily absorb moisture that evaporates from the soil.

Why does my deck wobble?

One reason for a wobbly deck may be that the floor joists are spanning too great a distance. The easiest way to correct this problem is by installing a support beam and posts under the joists to cut the span in half.

How do you use a deck flash barrier?

When applying to the tops and ends of deck joists, center over joist. Remove release paper and press in place. Firmly crease and fold Deck Flash Barrier over both sides of the joist. To maximize adhesion, roll with a small hand roller.

Article first time published on

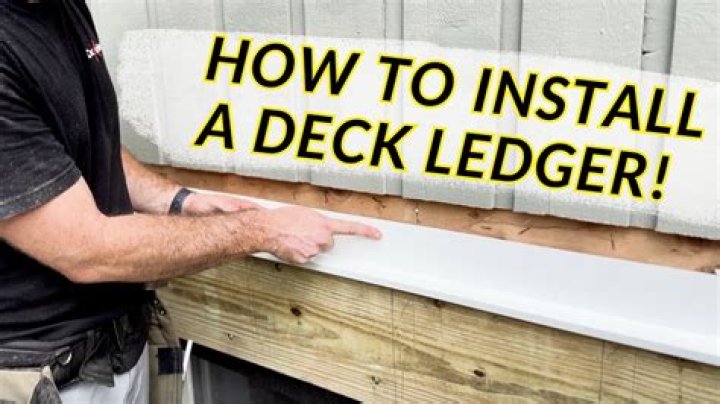

What is deck ledger flashing?

You will have to install ledger board flashing also known as a drip edge to act as a barrier to keep water out. If water can penetrate into the house framing it can result in severe mold, decay, and overall serious and expensive damage.

How do you rainproof a deck?

The best way to waterproof under your deck is with a deck drainage system installed during construction. A drainage system diverts water away from the joists and beams. An over-the-joist deck drainage system such as Trex RainEscape provides 100% protection from the damage caused by wood repeatedly getting wet.

How far apart should ledger bolts be?

Typically, you will need to install your bolts alternating high and low 2″ from the top and bottom of the ledger board. As a rule of thumb, bolts can be spaced 16″ on center for supporting joist span up to 12′ in length. Longer joists will require tighter bolting patterns.

What are the different types of flashing?

• Continuous flashing: Also known as “apron flashing”. …
• Drip edges: Often installed under the roofing felt along the eaves of a roof. …
• Step flashing: Step flashing is a rectangular piece of flashing bent 90 degrees in the center. …
• Valley flashing: A W-shaped piece of metal flashing.

Is flashing tape the same as joist tape?

Joist Tape, also referred to as Flashing Tape, is a thin, waterproof adhesive material that creates an impenetrable layer of protection against water, air and moisture infiltration.

Do you need to flash deck joists?

Deck joist flashing tape is used to protect your deck’s substructure – commonly made with traditional lumber – from moisture. As an organic material, traditional wood is highly vulnerable to mold, mildew, and rot. An effective and affordable way to protect your deck’s substructure is by using tape for your joists.

Should I stain deck joists?

It is not necessary to stain the underside of your deck for protection from the elements, especially if you use pressure-treated wood, which helps keep wood-boring insects out.

Can you use aluminum flashing with pressure treated lumber?

Never use galvanized steel or aluminum flashing in contact with an ACQ pressure-treated wood ledger board because it will corrode. … Copper works well because it is compatible with the chemicals used in commonly sold ACQ-treated lumber and is easy to bend.

What does ac2 stand for in lumber?

Alkaline Copper Quaternary (also known as ACQ) is a water based wood preservative method recently introduced in countries where there is a demand for alternatives to Chromated copper arsenate (CCA).

Should I wrap pressure treated lumber?

And because these new wood treatments are especially corrosive to aluminum, it’s best to use vinyl or copper flashing, or to wrap the wood in a protective rubberized membrane. … Allow treated wood to dry thoroughly before staining or painting. Test dryness by sprinkling the wood’s surface with water.

How do I stop my deck from shaking?

All decks using horizontal decking should have a diagonal sway brace to prevent racking. You may install a metal “T” brace, which is a long metal strip diagonally across the top of the joists, or install a diagonal deck board across the bottom of the deck frame. Decks using diagonal decking do not require sway bracing.

Are decks supposed to shake?

If your deck gets a case of the shakes when you walk across it, there’s probably no reason for concern. Still, in some cases, the deck movement puts extra stress on the fasteners and connectors.

Should I put rocks under my deck?

Companies that install decks recommend using washed gravel or crushed stone under the deck. The clean stone allows precipitation to drain, prevents plant growth, and moisture away from the wood members. It protects the ground from erosion and the wood from rot.

Do weeds grow under decking?

Weedy vines growing on the deck are a tripping hazard. … The tiny spaces between the deck boards allow rainwater and just enough sunlight to touch the ground below that weeds can flourish, but you might not be able to physically reach the weeds to remove them.

Do you need to remove grass under decking?

Grass can be damaging to your patio. To save you the trouble of decking repairs and replacements, make sure that you keep the grass from growing under the decking. Manually remove it, use some herbicides, or layer the ground with landscaping fabric and gravel or mulch.

What is joist tape used for?

Joist tape works to protect your deck framing and substructure by both creating a waterproof barrier along the areas where rain and condensation tends to pool; as well as protecting the screw holes in the lumber from penetrating moisture.
