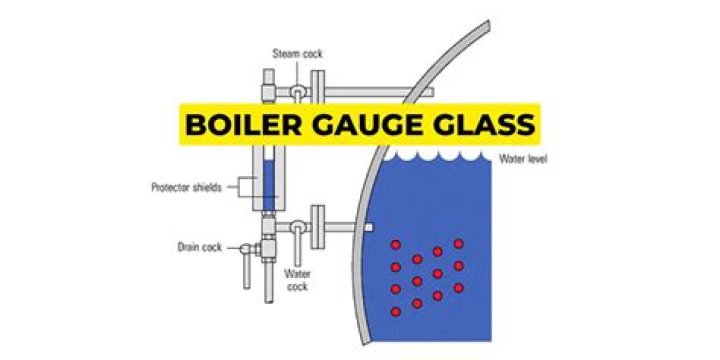

What is the purpose of a gauge glass on a steam boiler?

A gauge glass shows the current level of water in the boiler, regardless of the boiler’s operating conditions. Gauge glasses should be installed so that their lowest reading will show the water level at 50 mm above the point where overheating will occur.

Do hot water boilers have a sight glass?

Steam Boilers Steam systems operate on convection and normally have gravity return. Second, there will be a sight glass mounted on the side of the boiler. This will not be present on a hot water system. The sight glass tells you how full the water level is in the boiler tank.

What is gauge glass in boiler?

Gauge glass is a kind of a level indicator which shows the amount of fluid in a tank or any other storage place on a ship. Gauge glass are mainly used in boiler of the ship.

How does a boiler sight glass work?

A sight glass is a transparent tube that is used for observing the level of liquid contained within a tank or boiler. Tubular sight glass – This is where the sight glass acts as a transparent tube through which the operator of a tank or boiler can observe the level of liquid contained within.

What are the three types of sight glass?

Types of Sight Glass

Bullseye. A bullseye sight glass is installed by drilling a hole in a tank at the top of the optimum oil level.
Columnar. These are clear, vertical tubes mounted outside tanks that allow you to see a larger sample of oil than bullseye sight glasses.
BS&W Bowls.
3D.
Multifunctional.

What happen when there is too much water in a steam boiler?

Too much water flows from the boiler with the steam. That water loss sends the automatic feeder into action. Then the condensate returns, and the boiler floods.

Can you run a boiler without a sight glass?

At the same time if water comes out from the top of the sight glass fitting when the upper site glass valve is open then you’ve overfilled the boiler. If you can’t keep water in the boiler without it leaking because of the broken sight glass then you can safely run the boiler.

When should I add water to my boiler?

Whenever the water level is at the “add” mark, some water needs to be added. The system must be shut off and completely cooled down before performing any kind of maintenance, such as adding water. The feed water shutoff valves should be near the boiler — turn them off and wait.

What happens if I put too much water in my boiler?

However, if you overfill the system, it can put unnecessary strain on the whole heating system which causes the dreaded boiler pressure too high scenario. It’s going to mean copper joints are more likely to fail, the pump’s seals are more likely to blow, and it can even induce cracks in the heat exchanger.

Where can I find a crown boiler wiring diagram?

We include immediate downloads of example installation & repair manuals and wiring diagrams for air conditioners, heat pumps, and heating equipment from a variety of manufacturers as well as contact information to obtain the exact manual or wiring diagram for your unit.

What kind of valve does a steam boiler need?

A steam boiler must be fitted with a stop valve (also known as a crown valve) which isolates the steam boiler and its pressure from the process or plant. It is generally an angle pattern globe valve of the screw-down variety. Figure 3.7.3 shows a typical stop valve of this type.

Do you have a relationship with Crown heating?

We have no relationship with advertisers, products, or services discussed at this website. Crown heating boiler manuals, parts lists, wiring diagrams for HVAC equipment: air conditioners, boilers, furnaces, heaters, etc.

What does AWI stand for in a crown boiler?

Though it’s worth noting that for an electronic ignition gas pilot/flame we could have a bad sensor/thermocouple or for electronic ignition, a bad wire, connection, or igniter. In your boiler model number AWI is the series, 061 is the MBH (input BTUs), and the S suffix tells us it’s meant to have a standing polot.

How long does it take for Crown boiler to ship?

Usually ships within 2 to 3 days. Crown 70322 5/8″ Gauge Glass Packing Nut Kit. This kit includes everything you need to repair leaking gauge glass valves in the field.

What’s the marketing strategy for Crown Boiler Co?

Today, Crown’s marketing strategy is the same: provide the finest in customer service, the highest quality products and the shortest lead times, while remaining highly competitive in today’s market. Crown products are sold exclusively by Velocity Boiler Works. For more informatio, click here

What kind of gauge glass do you need for a boiler?

. Only 14 left in stock – order soon. Crown 70322 5/8″ Gauge Glass Packing Nut Kit. This kit Includes Everything You Need to Repair Leaking Gauge Glass valves in The Field. .

What is the purpose of a gauge glass on a steam boiler?
