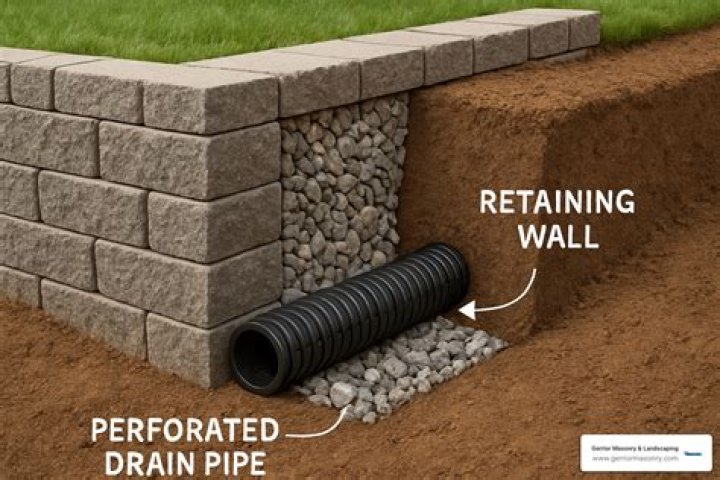

What is the minimum diameter of drainage pipe required for foundation drainage?
What is the minimum diameter of drainage pipe required for foundation drainage?
100 mm
Drain tile or pipe used for foundation drainage shall be not less than 100 mm in diam.
Why is my overflow running?
When an overflow pipe is dripping or running with water, one of the most common causes is a problem with a float valve. As the water level rises, the ball rises to switch the water feed off again when the tank is full. The maximum water level in the tank should be about one inch below the overflow pipe.
What should the size of a floor drain be?
Moreover , floor drains should be adequately sized and strategically located to avoid standing water on the floor, a potentially hazardous condition. Sizing of area drains for surfaces adjacent to the building is normally based on rainfall and size of the area to be drained.
How big of a slope do I need for a drain pipe?
If a plumbing fixture is located too far from the main building vent stack, then its own drain pipe must have its own vent stack connection piping. The usual slope on the fixture drain piping is 1/4″ of slope per 12″ (foot) of horizontal distance or “run” of piping.
Can a drain pipe be too far from a vent stack?
If a plumbing fixture is located too far from the main building vent stack, then its own drain pipe must have its own vent stack connection piping. The usual slope on the fixture drain piping is 1/4″ of slope per 12″ (foot) of horizontal distance or “run” of piping. Distances: How far can the plumbing vent piping be located from a plumbing fixture?
How tall does a plumbing vent have to be above the roof?
Plumbing Code Citations for Plumbing Vent or Vent Stack Clearance Distances. Vent pipes shall terminate not less than 6 inches above the roof, measured from the highest point where the vent intersects the roof.
Why does my basement drain keep overflowing?
Things like drywall mud, plaster, latex paint and caulks, etc. can all settle out and clog a drain. Clean the bulk of it outside, not in the utility sink. Using the proper head, etc is important when you run the drain.
Where does the drain from the basement go?
If you’re in doubt as to where your basement floor drain connects, ask a plumber to run a sewer camera down the pipe. From the basement, only the cover grate is visible. A catch bowl, drainpipe and plumbing trap lie beneath.
Can a basement drain connect to a sump pit?
If the floor drain connects only to a sump pit, it’s probably against local ordinances to drain any water that contains detergents, salt or chemicals. If the basement floor is lower than the spot where the main sewer line exits the home, the floor drain could connect to a third type of drainage system – a sewer pit with an ejector pump.
Can a backwater valve be installed on a basement drain?
You can install a backwater valve, also called a backflow valve or check valve, in the drainpipe. When sewage backs up, a float in the valve rises and seals the drain. If you install a backwater valve on the floor drain, install additional valves on any other basement fixture drains, such as tubs and showers.
