What is the invert level of a drainage pipe?

What is the invert level of a drainage pipe?

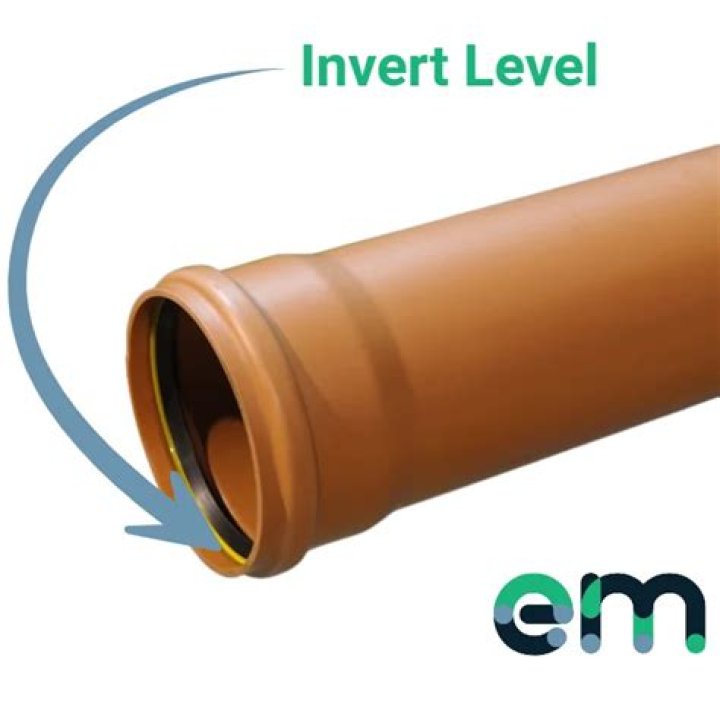

Invert level is the term given to the level of the bottom of the inside of a drainage pipe or inspection chamber. Drainage layout drawings usually show cover levels and invert levels of inspection chambers or manholes. The cover level is the finished ground level at a location, measured against a fixed benchmark.

What is the proper slope for a horizontal drain pipe?

¼ inch per foot
But do you know the proper slope? The ideal slope of any drain line is ¼ inch per foot of pipe. In other words, for every foot the pipe travels horizontally, it should be dropping ¼ inch vertically. Many drains either have too little slope or too much slope.

How do you calculate fall in drainage?

Drainage Gradients Falls

1. FALL = GRADIENT X DISTANCE.
2. Invert Levels.
3. The level at the crown of the pipe = the invert level + internal diameter of the pipe + pipe wall thickness.
4. Manholes can be manufactured from masonry or precast concrete.

Is Invert top or bottom of pipe?

In civil engineering, the invert level is the base interior level of a pipe, trench or tunnel; it can be considered the “floor” level.

How far can you run a 2-inch drain?

When builders look only at the table without reading the text, they find that a 2-inch-diameter drain can run a maximum distance of 8 feet to the vent. Maximum Distance According to the International Residential Code, the maximum vertical distance between the sink drain and the entrance to the p-trap is 24 inches.

How are drainage pipes installed in the UK?

As most drainage systems in the UK are installed during remediation project closures where time is limited speed of installation is also a very significant factor. The TerraRangeof drainage pipes and catch pits provides products which provide all the requirements in terms of load resistance, maintenance and fast installation.

What kind of pipe do I need for track drainage?

Pipes should be surrounded with granular filter material, and associated permeable geotextile, to reduce the ingress of silt whilst still allowing water to pass freely. TerraRange pipes are suitable for installing at depths of 300mm or more.

Why are French drain pipes not always effective?

Another reason why a French drain pipe is not always an effective solution relates to the basic properties of water. Water “sticks to itself” by a process called cohesiveness. A simple science class experiment in which a penny is placed on top of a glass of water makes the penny float.

Are there drainage problems in the northern periphery?

Currently most drainage maintenance works in the Northern Periphery are carried out by contractors and as a result drainage descriptions in the contract procurement documents have become highly critical issue. ROADEX classification of drainage problems on low traffic volume roads according to Berntsen and Saarenketo.

Where can I get fittings for drainage pipes?

Fittings for many types of pipes available either up to 12” in stock or by special order. West Chester is also your source for drainage needs with an assortment of options available. We put water in its place. Your Dust Control Water Truck, Snow Plow Equipment, and Construction Supplies Headquarters in Northern NJ.

What kind of pipe does a French drain use?

French drains and pipeless French drains can require a lot of effort with only marginal effectiveness for many reasons. Most descriptions of a french drain involve a slotted or perforated pipe, a trench, geotextile fabric and gravel backfill.

How do you slope a French drain pipe?

The drainage pipe (or drain tile as some call it) will lay on a bed of gravel in the bottom of the trench and it is very easy to move this gravel around to properly slope the drain pipe. So back to the stakes and strings.

What are the different types of plastic drainage pipes?

Plastic Drainage 1 9″ square, 12″ square, 18″ square drain basins 2 Trench drains in various sizes for all types of applications 3 Drywells
