What is the header checksum in hex

Checksum is a simple error detection mechanism to determine the integrity of the data transmitted over a network. Communication protocols like TCP/IP/UDP implement this scheme in order to determine whether the received data is corrupted along the network.

What is checksum in TCP header?

Checksum is a simple error detection mechanism to determine the integrity of the data transmitted over a network. Communication protocols like TCP/IP/UDP implement this scheme in order to determine whether the received data is corrupted along the network.

What is the size of header checksum?

The checksum field is the 16-bit ones’ complement of the ones’ complement sum of all 16-bit words in the header. For purposes of computing the checksum, the value of the checksum field is zero. If there is no corruption, the result of summing the entire IP header, including checksum, should be zero.

What is header checksum why it is needed and how it is calculated?

A check sum is basically a value that is computed from data packet to check its integrity. … This is because while traveling on network a data packet can become corrupt and there has to be a way at the receiving end to know that data is corrupted or not. This is the reason the checksum field is added to the header.

What is header checksum error?

If this checksum value doesn’t match, the packet is typically discarded. You can read more about IPv4 header checksums many places online including Wikipedia. So what this error is indicating is that the IP packet header checksum isn’t matching the IP packet headers.

Does TCP have a checksum?

TCP/UDP checksum is a end-to-end checksum meaning it is computed by the sender and verified by the receiver. TCP/UDP checksums cover the entire segment.

What is checksum explain with an example?

A checksum is a value used to verify the integrity of a file or a data transfer. In other words, it is a sum that checks the validity of data. Checksums are typically used to compare two sets of data to make sure they are the same. … For example, a basic checksum may simply be the number of bytes in a file.

What is checksum in networking?

A checksum is a small-sized block of data derived from another block of digital data for the purpose of detecting errors that may have been introduced during its transmission or storage. By themselves, checksums are often used to verify data integrity but are not relied upon to verify data authenticity.

What is flag in IP header?

Flags: flag in an IPv4 header is a three-bit field that is used to control and identify fragments. The following can be their possible configuration: Bit 0: this is reserved and has to be set to zero. Bit 1: DF or do not fragment.

How do you calculate checksum?

1. Add all bytes of the packet, except the start delimiter 0x7E and the length (the second and third bytes).
2. Keep only the lowest 8 bits from the result.
3. Subtract this quantity from 0xFF.

Article first time published on

What is IPv4 header size?

IPv4 uses 32-bit (4 byte) addressing, which gives 232 addresses. IPv4 addresses are written in the dot-decimal notation, which comprises of four octets of the address expressed individually in decimal and separated by periods, for instance, 192.168. 1.5. Size of the header is 20 to 60 bytes.

How many 32-bit words are in an IP header?

It is the length of the IP header in 4-byte (32-bit) units known as “words,” and includes any option fields present and padding needed to align the header on a 32-bit boundary. In Figure 7.2, this is 20 bytes, which is most common.

What is IPv6 vs IPv4?

The main difference between IPv4 and IPv6 is the address size of IP addresses. The IPv4 is a 32-bit address, whereas IPv6 is a 128-bit hexadecimal address. IPv6 provides a large address space, and it contains a simple header as compared to IPv4.

What is a header checksum Wireshark?

Operation The Header Checksum provides a verification that the information used in processing internet datagram has been transmitted correctly. The data may contain errors. If the header checksum fails, the internet datagram is discarded at once by the entity which detects the error. 3.1.

What happens if the checksum is corrupted?

If the TCP checksum is corrupted, then it will not match the TCP pseudo header and payload. There should only be one checksum that matches the pseudo header and payload, but there are multiple TCP pseudo header and payload combinations that will resolve to the same checksum. It is a one-way function.

How UDP checksum is calculated?

The basic idea is that the UDP checksum is a the complement of a 16-bit one’s complement sum calculated over an IP “pseudo-header” and the actual UDP data. The IP pseudo-header is the source address, destination address, protocol (padded with a zero byte) and UDP length. … Next is to add in the protocol and UDP length.

What is checksum in API?

The checksum is a digital signature that authenticates the sender of the message. This prevents others from sending payment requests in your name and prevents request tampering. It also assures you that any response or postback you receive actually originated from ICEPAY.

Where is checksum in networking?

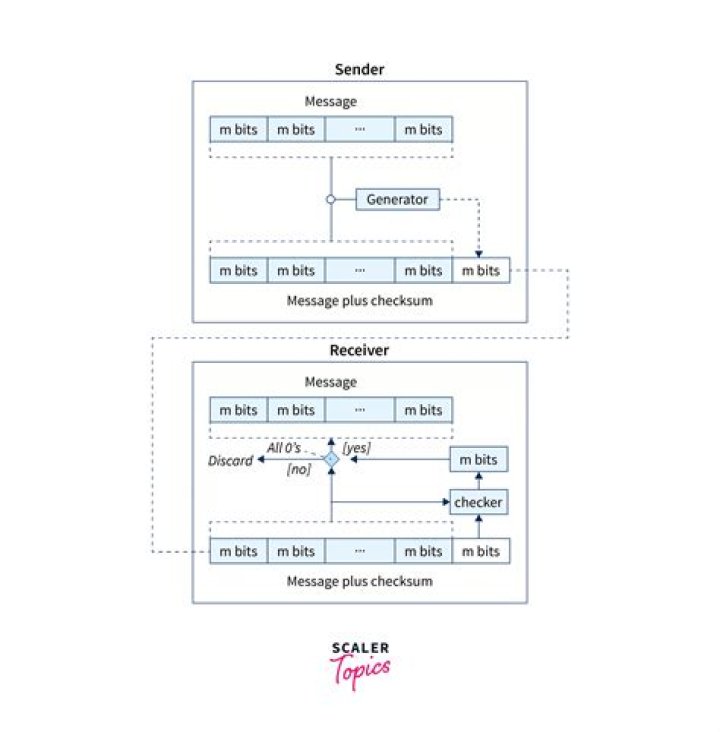

Checksum In checksum error detection scheme, the data is divided into k segments each of m bits. In the sender’s end the segments are added using 1’s complement arithmetic to get the sum. The sum is complemented to get the checksum. The checksum segment is sent along with the data segments.

What is checksum number?

A checksum is a value that represents the number of bits in a transmission message and is used by IT professionals to detect high-level errors within data transmissions. Prior to transmission, every piece of data or file can be assigned a checksum value after running a cryptographic hash function.

What is header in networking?

In a network transmission, a header is part of the data packet and contains transparent information about the file or the transmission. In file management, a header is a region at the beginning of each file where bookkeeping information is kept.

What is UDP header format?

The UDP datagram header consists of 4 fields, each of which is 2 bytes (16 bits). The data section follows the header and is the payload data carried for the application. The use of the checksum and source port fields is optional in IPv4 (pink background in table). In IPv6 only the source port field is optional.

What is header in data packet?

At each layer, a packet has two parts: the header and the body. The header contains protocol information relevant to that layer, while the body contains the data for that layer which often consists of a whole packet from the next layer in the stack.

Why do we use checksum?

A checksum is a string of numbers and letters that act as a fingerprint for a file against which later comparisons can be made to detect errors in the data. They are important because we use them to check files for integrity.

How can checksum detect errors?

For error detection by checksums, data is divided into fixed sized frames or segments. Sender’s End − The sender adds the segments using 1’s complement arithmetic to get the sum. It then complements the sum to get the checksum and sends it along with the data frames.

Can the value of a checksum be all 0s?

The value of a checksum can be all 0s (in binary). This happens when the value of the sum (after wrapping) becomes all 1s (in binary).

How long is TCP header?

TCP wraps each data packet with a header containing 10 mandatory fields totaling 20 bytes (or octets). Each header holds information about the connection and the current data being sent.

What is the length of the UDP header?

The UDP header has a fixed length of 8 bytes. Each of these 4 header fields is 2 bytes long.

What is the maximum header size of an IP packet?

As we discussed in Chapter 2, most IP packets have a 20-byte header, with a maximum of 60 bytes being used for this data. TCP segments also have their own header information, with a minimum value of 20 bytes (the most common), and a maximum size of 60 bytes.

How long is an IPv6 header?

IPv6 does not include a Header Length field because the IPv6 header is always a fixed length of 40 bytes. Each extension header is either a fixed length or indicates its own length. Replaced by the IPv6 Traffic Class field.

Who invented IP address?

This led to researchers trying to improve the system and eventually two computer scientiests, the aforementioned Robert Kahn of BBN and Vint Cerf of DARPA invented TCP/IP which gave birth to the not only IP Addresses, but the Internet as we know it.

What is the minimum header size of IP packet?

The minimum size is 20 bytes (header without data) and the maximum is 65,535 bytes. All hosts are required to be able to reassemble datagrams of size up to 576 bytes, but most modern hosts handle much larger packets.
