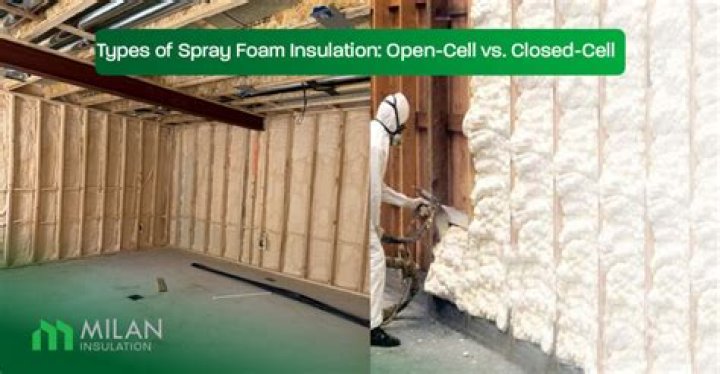

What is the difference between open cell and closed cell insulation
Open cell foam has tiny cells which are not completely closed. The open cells are filled with air and this affects the way the foam feels and performs. Closed cell foam has cells which are sealed off so air doesn’t get inside the structure at all.
What's the difference between open cell and closed cell?
Open cell foam has tiny cells which are not completely closed. The open cells are filled with air and this affects the way the foam feels and performs. Closed cell foam has cells which are sealed off so air doesn’t get inside the structure at all.
Which foam insulation is best?
Expanded polystyrene (EPS), or beadboard, serves as the best insulating rigid foam for homeowners on a budget. This material costs less than other rigid foam boards, but still offers an R–value of 3.6 to 4.2 per inch, according to Fine Homebuilding.
Is open cell foam insulation worth it?
In the case of leaks, open-cell foam will absorb water and hold it against the framing and sheathing elements facilitating mold and rot. Bottom Line: It’s a great and affordable insulation option when there is no chance of water intrusion, but you’re rolling the dice if you think it might get wet.Is open cell foam cheaper than closed cell?
Benefits of Open Cell Foam Open cell foam is also much more affordable than closed cell foam, however this foam won’t insulate a house as well as closed cell foam, so it’s not ideal for locations with extreme weather temperatures.
Is spray foam insulation open or closed cell?
Closed-cell polyurethane spray foam is known to be the most common of the two. It’s considered a “closed” cell due to its high R-value. The R-value is the material’s capacity to insulate and resist heat flow.
What is closed cell?
Closed cell foam is defined as a cell totally enclosed by its walls and hence not interconnecting with other cells. Closed cell foam is usually made by subjecting a rubber compound to a gas, such as nitrogen, under high pressure. … This type of material is ideal for sealing as it effectively reduces liquid and gas flow.
Why is closed cell foam so expensive?
Closed cell foam costs more than open cell foam because it is a denser material with less expansion, and therefore requiring more material to cover a designated area. Closed cell foam also provides a higher R-value because the cells are filled with high R-value chemicals.Is 2 inches of closed cell foam enough?
Closed cell spray foam should be 4- to 5- inches on the ceiling and 2- to 3-inches in the walls. This might come as a surprise to you, but honestly, this is all the spray foam it takes to get the biggest bang for your buck with the air seal and thermal resistance needed for certain areas of the home.
What is the R-value of closed cell foam insulation?The R-value of closed-cell foam is R-6.5-7 per inch. Contractors often use it to insulate under slabs, ceilings, walls, and roofs. It performs better than other insulation types.
Article first time published onWhat is the R-value of open cell foam?
The R-value of open cell spray foam is about 3.5 per inch, although the R-value can be different depending on the product. Open cell spray foam has a low density and is many times applied in interior walls and areas that are hard to reach in a home.
Does closed cell foam need a vapor barrier?
A vapour barrier is not necessary with closed-cell foam but with open-cell spray foam such as Icynene®, it is sometimes required. Any air that migrates though a building envelope will carry water vapour. … It is also vapour permeable, so any moisture in the property can escape through the insulation as it dries out.
How thick can you spray closed cell foam?
Closed cell foam expands to approx. 1 inch thick when applied. Open cell foam expands to a whopping 3 inches thick. It’s this ability to expand that allows the foam to completely fill every crevasse and open space it encounters, providing a superior air seal that far outperforms other insulation types.
Can you spray open cell over closed cell?
If you had a roof leak the water would not have anyway to get out. Now you can do the reverse, spray open cell over closed cell so long as you have sufficient thickness of closed cell SPF to prevent potential condensation on the surface of the foam. (typically 1 inch in mixed climates and 2 inches in cold climates.)
What are the disadvantages of spray foam insulation?
- Spray foam insulation does not always fill every possible cavity. …
- Spray foam insulation might encourage water damage for some homeowners. …
- Spray foam insulation can sometimes shrink. …
- Spray foam insulation requires a lot of experience to get it right.
What is the best R value for walls?
Typical recommendations for exterior walls are R-13 to R-23, while R-30, R-38 and R-49 are common for ceilings and attic spaces.
What is a closed cell insulation?
Closed cell foam is made of uniform cells that maintain their own shape. Because the cells are closed and have their own cell walls, they are more rigid and trap a large amount of air. This makes for more sturdy products that serve as great insulation.
What is closed cell insulation made of?
Closed cell spray foam insulation’s main ingredients are chemical and water-blown. They also have organic chemical compounds derived from petroleum extracts. The closed cell spray foam RetroFoam of Michigan offers is environmentally safe, Class One Fire Rated, and doesn’t retain water.
What is the difference between closed cell and open cell backer rod?
The main difference between open and closed cell rods is the density. Open cell offers a breathable material while closed cell rods are denser as well as firmer. It is easier to bend an open cell because of its flexibility and softness thus it is easier to install.
How much does Closed cell insulation cost?
Closed-cell insulation runs $1 to $1.50 per board foot, while open-cell costs about $0.44 to $0.65 per board foot. Have it applied during the home’s initial construction. Before the interior drywall is on, spray foam insulation is the least expensive because less labor is necessary.
What is the R-value of spray foam in a 2x6 wall?
Thermal Control When blown or sprayed cellulose insulation is used, the R-value is typically R-20 for 2×6 walls. Exterior insulating sheathing is typically added as expanded polystyrene (EPS) at R-4/inch, extruded polystyrene (XPS) at R-5/inch or foil-faced polyisocyanurate at R-6.5/inch.
What is the R-value of 4 inches of spray foam?
Typical installations are limited to a total thickness of 4 inches.” Since Comfort Foam 158 has an R-value of 6.2 per inch, the max- imum thickness of 4 inches yields an R-value of about 24.8.
What is the R-value of 3 inches of spray foam?
Since closed cell foam has a higher R-value per inch, installers generally spray 2″ in walls and 3″ in rooflines to meet the energy code requirements of R-13 and R-19, respectively.
How much does it cost to insulate a 1500 sq ft house?
Property owners should expect to spend about $975 to $11,250 to insulate a 1,500-square foot home. Take note that insulation costs may vary and can increase or decrease, depending on whether the insulation comes during or after the construction of the house.
How much does it cost to insulate a 1500 sq ft attic?
How much does it cost to insulate a 1,500 sq ft attic? With average costs ranging from around $1 per sq ft to $5 per sq ft (excluding structural insulation panels as these are best for new installations) expect to pay from $1,500 to $7,500 to insulate a 1,500 sq ft attic.
How much does it cost to spray foam a 2000 square foot house?
Size in Square FeetPrice*2,000$880 – $3,0002,500$1,100 – $3,7503,000$1,320 – $4,500
How long does closed cell foam last?
Take a look at the following: Foam is more energy efficient. The R-Value of closed cell foam is 300% that of fiberglass. It’s estimated to last for 80 years.
What is the R-value of 2 inches of spray foam?
R-Value In 2 Inches Of Spray Foam Open-cell spray foam is vapor-permeable. The R-value ranges from R-3.5 to R-3.6 per inch. The filling of a 2×4 cavity yields about an R-13.
What is the R-value of 1 1 2 spray foam?
Closed cell spray foam has an R-value of R-7 per inch. In comparison, open cell spray foam has an R-value of R-3.8 per inch.
Is closed cell foam good for soundproofing?
Both open cell and closed cell foam are useful for vehicle soundproofing and insulation. Open cell foam absorbs sound, but closed cell foam is more durable. Both are great for insulation.
Is open cell foam flammable?
Open-Cell Spray Foam Insulation has non-flammable formulation.
