What is the C wire used for on a thermostat

A C

Does C wire need?

Many conventional, non-connected thermostats don’t need a “c-wire” to function. But today, most Wi-Fi thermostats have new features such as Wi-Fi radios and LED color screens that require the unit be powered at all times. Thermostats can get this constant power through a common wire or “c-wire.”

What color wire is the C wire on a thermostat?

Blue wires are also called C wires because they are the Common wire. C wires are necessary for any smart thermostat that needs to be connected to a power source 24/7, regardless of your heat pump type.

Does the C wire power the thermostat?

A common wire (C-Wire) provides Wi-Fi thermostats continuous power by connecting it to a heating and cooling system (e.g. furnace). C-Wires are required on most Honeywell Wi-Fi thermostats, with the exception of the Smart Round Thermostat (formerly known as the Lyric Round).

Do all thermostats require C wire?

Do I Really Need a C Wire? Yes, you should install a C-wire if you are upgrading your thermostat. Nearly all modern thermostats, smart or not, require a power source, and that doesn’t look likely to change any time soon.

Does C wire have voltage?

A C-wire, or a common wire, runs from your low voltage heating system (24v) and carries continuous power to your thermostat. In today’s electric market, most newer heating and cooling systems have C-wires, which guarantees compatibility for the installation of all smart thermostats.

How does nest work without C-wire?

In a system with a C-wire, the Nest charges itself from the C-wire’s current and all is fine. In a system without a C-wire, though, Nest recharges its battery when the heating or cooling runs. It diverts a little bit of the power to itself and charges its own battery.

Why is my C wire Brown?

A brown wire is mostly likely a heat pump wire and should be connected to the O/B connector on the Nest thermostat. If the B wire is blue, it should most likely be connected to the C connector.

What color is ob wire?

MarkingWire Color CodeDescriptionOOrangeChange-over relay to cool relayBBlueChange-over relay to heat relayAHeat and cool active to any relayLEmergency heat active lamp

What do the different color wires mean on a thermostat?

This is the most typical thermostat wiring style, and it applies to systems that regulate both heat and air conditioning. The wires are typically arranged as follows: red for 24-volt hot, white for heat, yellow for cooling, green for the fan, and blue for common (although the common wire may be a different color).

Article first time published on

What happens if you wire a thermostat wrong?

Potential consequences of improper installation could include: Electric shock. Blowing a circuit breaker. Damaging the thermostat unit, the electrical system or even the AC/furnace unit itself.

Can I install ecobee without C wire?

Even though it comes with an adapter for missing c-wires, ecobee is what we’d pick even for systems with a c-wire. If you’ve got a 24v HVAC system but no C-wire, check out the ecobee product line. Every ecobee ships with an adapter that you can install yourself at your furnace to make up for a missing C-wire.

How do you hook up a C wire to a furnace?

Option 1: Add a C Wire to Your Furnace Remove the access panel from the furnace and locate the thermostat wires and terminals. Connect an 18 AWG wire to the C terminal at the furnace. Next, remove the thermostat face plate. Now, run the new C wire from the furnace to the back of the new thermostat.

What does RC and RH mean on a thermostat?

RC: The RC terminal is the 24-volt cooling power supply. RH: The RH terminal is the 24-volt heating power supply. (Note: The RC and RH terminals are jumpered together in a four-wire heat/cool system and a single-stage heat pump system, but not in a five-wire heating/cooling system.)

Is B wire same as C wire?

The common wire, usually labeled C, should go in the C Terminal of the Zen Thermostat. A wire labeled O, B, or O/B is used to control whether a heat pump is in heating or cooling mode. However, on some thermostats, a wire labeled B is the common wire C. In most cases, the common wire is labeled C.

What is the GREY wire on a thermostat?

Other Wire Colors: Gray wire: may be Aux emergency heat, mayu connect to E. The temperature actuated on off switch in a thermostat is actually a single pole double throw switch which will have either the heating or the cooling side closed at all times.

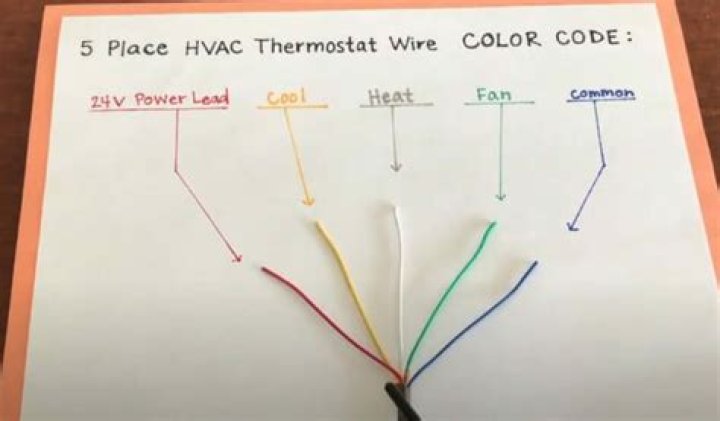

What are the 5 thermostat wires?

• Red wire for power (24V).
• White wire for heating (connected to W or W1 terminal).
• Green wire for fans.
• Blue or yellow wire for cooling (connected to Y).
• Black wire for “C” or “Common” wire.

Should my thermostat be on E or F?

The thermostat fan operation switch, labeled FUEL SWITCH in the diagram below, is factory-set in the “F” position. This is the correct setting for most systems. … The “E” setting will allow the fan to turn on immediately with the heating or cooling in a system where the G terminal is connected.

Why is my AC blowing hot air after changing thermostat?

If your AC is blowing hot air, the thermostat may have been accidentally set to “heat.” If this is the case, it’s easy to fix on your own. Simply flip the thermostat setting back to “cool” and see if the air conditioner begins to blow cool air again.
