What is gasket in heat exchanger

Heat exchanger gasket is a term used for gaskets used in shell and tube type heat exchangers. This is usually a metal jacketed gasket with a soft filler for higher temperatures. … These gaskets are used in areas where extreme temperatures and excessive movement due to thermal expansion exist.

How do you seal a heat exchanger?

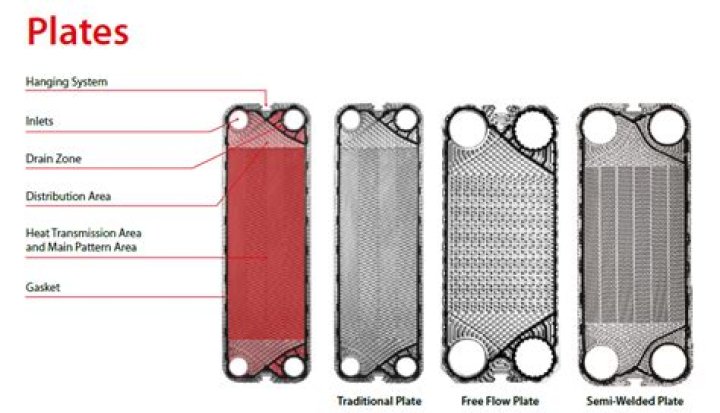

Adhesives are a cost-effective solution for sealing heat exchanger tubes onto endplates and are popular alternatives to welding or brazing. The result is a superior leak-free assembly. Adhesives can also be used for bonding heat exchanger fins and rubber gaskets to flat plate heat exchangers.

What are the parts of a heat exchanger?

• SHELL. SHELL is the component of HE which keeps everything inside it. …
• TUBES. TUBES are the second component that carries either hot or cold fluid. …
• TUBESHEET. TUBESHEET is located on both sides of HE. …
• BAFFLES. …
• TIE ROD. …
• SPACERS. …
• NOZZLES. …
• PASS PARTITION PLATE.

How many types of gaskets are there?

Non-MetallicMetallic – Ring GasketCompositeCompressed Non-Asbestos Fibre Gasket (CNAF)Oval Ring GasketSpiral Wound GasketsPTFE GasketOctagonal Ring GasketCamprofile GasketsRubber GasketMetal Jacketed Gasket

What is jacket gasket?

A jacketed gasket has a construction composed of a soft filler material, wrapped by a metal outer layer. Often, this is a two-piece metal construction with a flat layer against the soft facing and a wrap layer that wraps at both sides to form a complete enclosure to encapsulate the filler.

Where is gasket used?

One of the most common industrial uses of a gasket is acting as a seal for joining two water pipes. You can also find gaskets used to seal boilers and fuel tanks. In all cases the gasket prevents leakage of liquids and gases between the component parts.

Why are gaskets needed?

A gasket stores energy, like a spring, and seals two mating surfaces that fail to perfectly meet. Wikipedia: “Fills the space between two objects, generally to prevent leakage between the two objects while under compression.

What is nozzle in heat exchanger?

The prime purpose of nozzles, headers, and turnarounds is to distribute fluid through a heal exchanger matrix, as shown in Figure 1 for a typical case. … In many instances this approach results in poor distribution of the fluid within the heat exchanger.

How are gaskets classified?

Flange gaskets come in a variety of sizes and are categorized by their inner diameter and outer diameter. … The metal provides the strength and resilience of the gasket, while the non-metallic component provides the conformable sealing material.

What is tube sheet in heat exchanger?

Tube sheets have holes drilled to accept a series of tubes inside of an enclosed tubular pressure vessel. These pressure vessels, commonly referred to as shell and tube heat exchangers, are the most common heat exchangers used in oil refineries and large chemical plants.

Article first time published on

What is tubes in shell and tube heat exchanger?

These two integral pathways are usually built out of thermally conductive metals that allow easy heat transfer (steel, aluminum alloys, etc.). The tubes carry a fluid from their inlet to their outlet (the “tube-side” flow), while the shell passes a separate fluid over these tubes (the “shell-side” flow).

What is inside bolt circle gasket?

(inner bolt circle) gasket, is a ring that sits within the diameter of the bolts holding the flanges together. It is contrasted with a full faced (F.F.) gasket which covers the face of the flange and has bolt holes.

What is corrugated gasket?

Corrugated metal gasket (CMG) consists of a metal core with concentric grooves on both sides and coated with expanded graphite, PTFE layer or non-asbestos plate. … In addition, corrugated metal gasket is a versatile sealing element when bolt loads are low. Unlike other materials and structures, it can be very resilient.

What is RTJ gasket?

Ring type joint gasket (RTJ Gasket) is a high integrity sealing gasket, high temperature and high pressure gasket for applications in petroleum industry, oilfield drilling, pressure vessels joints, pipes and valves etc from Goodrich Gasket Pvt. Ltd.

What do you mean by gaskets?

A gasket is a mechanical seal which fills the space between two or more mating surfaces, generally to prevent leakage from or into the joined objects while under compression. … Gaskets allow for “less-than-perfect” mating surfaces on machine parts where they can fill irregularities.

What's another word for gasket?

linerliningringsealstopperwashercapcoveringpacking

How do seals differ from gaskets?

Generally speaking, gaskets serve as a static seal between flat surfaces, such as joints, while seals are used in more dynamic environments between active components such as rotating shafts, pumps, and engines.

What is the difference between a flange and a gasket?

The terms “gaskets” and “seals” are often used interchangeably. The fundamental difference is that a gasket is a physical piece that goes between two flanges to create a seal at a joining point between two components. A gasket is a seal.

What is gasket in flange?

Flange gaskets are used to create a static seal between two flanges faces, at various operating conditions, with varied pressure and temperature ratings. A gaskets fills the microscopic spaces and irregularities of the flange faces, and then it forms a seal that is designed to keep liquids and gases.

What is plain gasket?

Gaskets are also available in a number of high performance materials which address typical gasket issues such as creep, bore intrusion and ineffective sealing caused by thermal cycling in steam and hot WFI systems. …

How do you measure a gasket?

When measuring a circular gasket, think of it as a clock. Use a tape measure or ruler and measure across the gasket from the 9:00 position to the 3:00 position. Measure the inside edges for the I.D. and the outside edges for the O.D. Next, count the number of BH (Bolt Holes) around the face of the gasket.

What is style in gasket?

The Style CGI is for use with flat face and raised face flanges. This gasket features increased compressive force for blow-out prevention and is specified for high pressure/temperature service or where corrosive or toxic media are present.

What is baffle spacing?

Baffles are used to increase the fluid velocity by diverting the flow across the tube bundle to obtain higher transfer co-efficient. The distance between adjacent baffles is called baffle-spacing. The baffle spacing of 0.2 to 1 times of the inside shell diameter is commonly used.

What are TEMA standards?

TEMA stands for “Tubular Exchangers Manufacturers Association” and is a set of standards that were developed by leading shell and tube manufacturers. These standards define the style of heat exchanger and the machining and assembly tolerances.

What is tube and shell side?

One flows through the tubes (the tube side) and the other flows outside the tubes but inside the shell (the shell side). Heat is transferred from one fluid to the other through the tube walls, either from tube side to shell side or vice versa.

What is the function of tube sheet?

A tube sheet is usually made from a round flat piece of plate,sheet with holes drilled to accept the tubes or pipes in a accurate location and pattern relative to one another. The tube sheets are used to support and isolate tubes in heat exchangers and boilers or to support filter elements.

How do you find a leak in a heat exchanger?

Locating a Leak in 6 easy steps! Simply attach the unit to a water supply and note the leaking tube. 2). For smaller leaks, it may be necessary to submerge the heat exchanger under water and pressurize it with air at 50 psig maximum. Leaks can then be located by the “bubble trail.”

How many tubes are there in shell and tube heat exchanger?

The three types of Shell and tube heat exchangers as Follows : Fixed Tubesheet – this heat exchanger type has straight tubes through the shell and are fixed at both ends. U-Tube – as the name describes, the tube bundle in this heat exchanger is U shaped.

What is shell and tube evaporator?

The main function of Shell & Tube Type Evaporator is to act as a heat exchanger in a vessel form. This is mainly done to cool closed circuit for re-circulating fluid flow. … The refrigerants passed through the expansion device that passed into tubes and evaporates to produce a cooling effect.

Is O ring a gasket?

O-rings are circular, ring-shaped pieces that sit in a groove between two (usually cylindrical) parts. … Terminology note: Any o-ring can technically be called a gasket since they prevent the transfer of liquid and air, but while o-rings are a specific shape of gasket, any gasket cannot be called an o-ring.

What is RF gasket?

The Raised Face flange is the most common type used in process plant applications, and is easily to identify. … The purpose of a RF flange is to concentrate more pressure on a smaller gasket area and thereby increase the pressure containment capability of the joint.
