What is efficiency of water pump?
What is efficiency of water pump?
Pump efficiency is defined as the ratio of water horsepower output from the pump to the shaft horsepower input for the pump. Water horsepower is determined by the flow rate and pressure delivered from the pump.
How do you calculate pump efficiency?

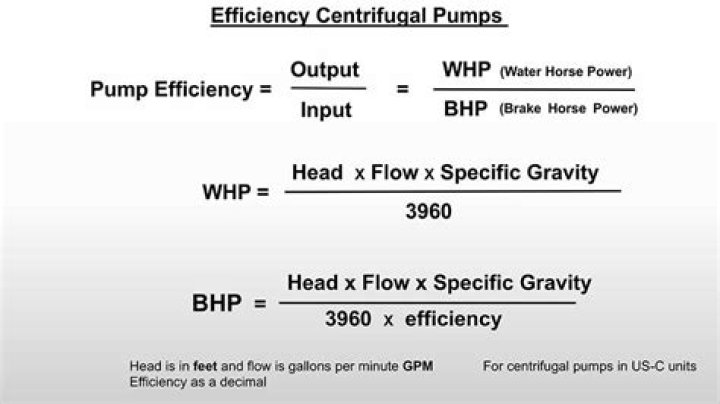

Pump efficiency is the “water horsepower” divided by the “brake horsepower” and multiplied by 100 to present it as a percentage (see formulas in Image 1). Water horsepower is a system design tool and is the power that the pump would require to accomplish the hydraulic conditions if it was 100 percent efficient.
What is a typical pump efficiency?
Many medium and larger centrifugal pumps offer efficiencies of 75 to 93 percent and even the smaller ones usually fall into the 50 to 70 percent range. Large AC motors, on the other hand, approach an efficiency of 97 percent, and any motor—ten horsepower and above—can be designed to break the 90 percent barrier.
Which pump has high efficiency?
Efficiency & Performance In general, a reciprocating pump is more efficient than a centrifugal pump. Reciprocating machines are generally applied on low-flow/high-head service. Centrifugal pumps can have efficiencies as low as 40 percent on low-flow/high-head service.
How do you increase the efficiency of a water pump?
7 ways to improve the energy efficiency of your pump
- Avoid oversizing the pump.
- Impeller trimming.
- Variable frequency drives.
- Parallel pumping systems.
- Limit pipework pressure loss.
- Eliminate unnecessary use.
- Carry out maintenance.
Why is pump efficiency important?
Since it is pumps that are doing the bulk of the work, it is important to assess the efficiency of pumps in wastewater plants to see if all that power is being used effectively. The further away your pump is from its best energy point, the more energy it will use and the less reliable and efficient your system will be.
What is RPM of pump?
Rotational speed (also called speed, or speed of rotation) can be quantified as the number of revolutions a rotating system makes within a defined period of time. The unit used for rotational speed is s–1 (rev/s); pump speed is generally given in min–1 (rpm). The unit is rad/s.
What affects pump efficiency?
Factors that affect the deviation from attainable efficiency are surface roughness; internal clearances; mechanical losses like bearings, lip seals, mechanical seals and packing; high suction specific speed; impeller trim and viscosity of the fluid pumped.
What is the most efficient water pump?
positive displacement
The most efficient pumps are “positive displacement” pumps, which pump a fixed amount of water with each rotation. If it is cloudy or early morning, the pump will receive less energy and run more slowly, but with no loss of efficiency—so at half speed, it simply pumps half the amount of water at the same pressure.
What reduces pump efficiency?
Viscosity of liquid. Liquid viscosity affect pump performance. This is because two of the major losses in a centrifugal pump are caused by fluid friction and disc friction. As viscosity of the liquid increases the head developed by the pump decreases and the efficiency decreases.
What is the principle of pump?
The operating principle of the pump is to convert mechanical energy to pressure. In operation, a rotating impeller accelerates a liquid and as the area of the pump casing expands the velocity of the fluid is converted to pressure. As a result pressurized fluid exits the pump discharge.
What are the efficiencies of a water pump?
• Brake horsepower: pump efficiency only (size the motor) • Wire-to-water horsepower: pump x motor efficiency (size the electrical service) Typical Pump Efficiencies Pump only (brake, no motor) Non-clog centrifugal, 25 hp: 65% Submersible wastewater, 34 hp: 75% Vertical turbine, water, 30 hp: 81% End Suction, water, 30 hp: 75%
How is the efficiency of a centrifugal pump determined?
Pump efficiency is defined as the ratio of ___________ Explanation: Pump efficiency is defined as the ratio of water horsepower to the pump horsepower. The unit of flow rate in a centrifugal pump is m3/s. It is denoted as ‘Q’. It plays an important role to determine the efficiency of the pump.
How is the efficiency of a pump preserved?
How pump efficiency can be preserved by changing impeller speed rather than reducing it diameter will also be examined. Then I will compare the value of peak efficiency versus the breadth of efficiency over a range of flow.
How many horsepower does a centrifugal water pump have?
• Wire-to-water horsepower: pump x motor efficiency (size the electrical service) Typical Pump Efficiencies Pump only (brake, no motor) Non-clog centrifugal, 25 hp: 65% Submersible wastewater, 34 hp: 75% Vertical turbine, water, 30 hp: 81% End Suction, water, 30 hp: 75% Bigger is better: add about 5 points at 200 hp
• Brake horsepower: pump efficiency only (size the motor) • Wire-to-water horsepower: pump x motor efficiency (size the electrical service) Typical Pump Efficiencies Pump only (brake, no motor) Non-clog centrifugal, 25 hp: 65% Submersible wastewater, 34 hp: 75% Vertical turbine, water, 30 hp: 81% End Suction, water, 30 hp: 75%
determined, pump efficiency is a simple calculation that can be determined by this formula: If the horsepower input to the previous centrifugal pump example was 33 horsepower, the pump efficiency would be: h = 24.2 33 = 0.73 or 73% h = hp water of pump hp Deepwell turbine pump Ultrasonic flow meter
How pump efficiency can be preserved by changing impeller speed rather than reducing it diameter will also be examined. Then I will compare the value of peak efficiency versus the breadth of efficiency over a range of flow.
