What is cut-in pressure on a pressure switch?
What is cut-in pressure on a pressure switch?
All Pressure switches have two operating points known as the cut-in (Reset Point) and cut-out (Trip Point) settings. The cut-in point is for the falling pressure and the cut-out point is for the rising pressure. Every switch also includes a differential or a range based on the cut-in and cut-out points.
Why does my well pressure switch keep tripping?
Continuous tripping could be caused by a broken wire leading to or inside the water pump. Check the well tank pressure gauge to see if it is at least 40 PSI (or the cut-off PSI for your pressure switch model). If it isn’t, make sure your filter isn’t clogged or in need of a change.
What are the symptoms of a bad well pressure switch?
Some of the tell-tale signs of pressure switch failure include: A pump that cycles continuously for no apparent reason. A pump that works, but has very weak water pressure. A pump that doesn’t turn on and does not provide any water.
At what pressure should my well pump shut off?
Setting the cut-out pressure above the pump’s capacity can cause the pump to run continuously. Check / change pressure switch pressure settings to correct adjustment for cut-in and cut-out. Normally we see about 20 psi between cut-in and cut-out pressures.
What is the difference between a low pressure switch and a pressure switch?
When someone opens up a faucet, it goes from 60 psi down to 40 psi. The pressure switch senses the drop to 40 psi and that’s when it sends an electrical signal down to the pump to turn on. The low cut off pressure switch would turn the pump off if the pressure drops 10 psi below the cut-in pressure (low number).
Why does my pressure switch Keep clicking on and off?
It is normal for the relay switch to “click” on and off slowly when you are running water continuously. It’s the pump switching on and off as pressure falls and rises.
How does a low pressure switch work?
A low-pressure switch is connected to the suction, or “low” side of the system to sense suction pressure. When the pressure in the system exceeds the high pressure switch setting, the switch will open circuit the compressor clutch and the compressor will stop circulating refrigerant.
What’s the pressure on a 40 / 60 pressure switch?
When you open up a faucet the pressure drops. For example on a 40/60 pressure switch (most popular option) a home’s water pressure sits at 60 psi. When someone opens up a faucet, it goes from 60 psi down to 40 psi. The pressure switch senses the drop to 40 psi and that’s when it sends an electrical signal down to the pump to turn on.
What does a low cut off pressure switch do?
A low cut off pressure switch turns the pump off in the event that the water pressure in your lines drops lower than the cut-in pressure (low number). Imagine that there was a leak or break in your water line.
When to use a high pressure pressure switch?
Use in high-pressure applications up to 20, 000 psi. Sensitive to low pressures, these switches electrically activate automated controls or alarms when a set pressure is reached. A clear cover allows you to see if the switch is on or off.
What does the second number on a pressure switch mean?
The second number tells the pressure switch to send a signal down to your pump to turn off. You may hear the terms “cut-in pressure” and “cut-off pressure” = cut-in pressure / cut-off pressure. When you open up a faucet the pressure drops. For example on a 40/60 pressure switch (most popular option) a home’s water pressure sits at 60 psi.
How do you adjust the water pressure switch?
Adjust the switch counterclockwise using a wrench as you fill the tank with air using an air pump or compressor. To increase water pressure in your well, check the gauge for the proper pressure level every so often.
Where is the pressure switch on a well pump?

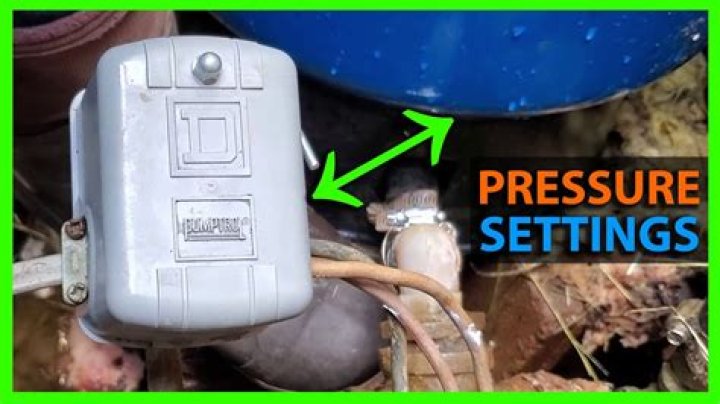

The pressure switch sits in a gray box atop the feed line from the well pump to the pressure tank. Alongside it, you’ll find a small silver bar. When it is tripped, the bar rests parallel to the ground. When operational, the trip handle sits at a 30- to 45-degree angle.
Where is the water pump pressure control switch?
The pump switch will be usually be located on the pump itself (above ground water pumps) or on a tee at the water pressure tank outlet. If your pressure tank and pump controls are not inside the building they may be located in a basement crawl area or outside in a well pit.
What is a well pump pressure switch?
The standard operating pressure per square inch (PSI) range for well pump pressure switches is 20 – 40 PSI, reaching up to 100 PSI, with typical differentials of about 10-40 PSI.
