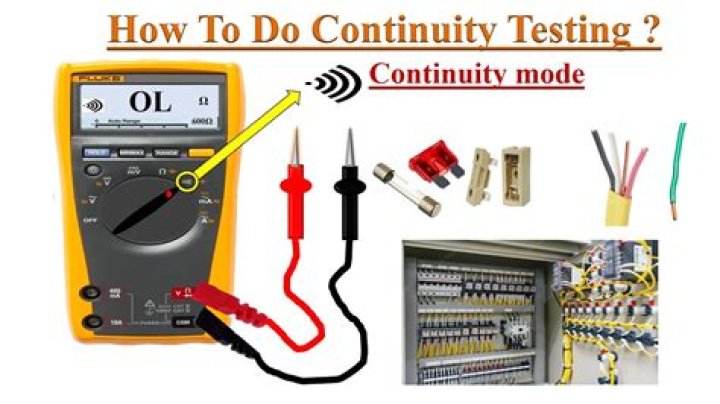

What is continuity in electrical testing

May 9, 2021 | Electrical. Continuity is the presence of a complete path for current flow. A closed switch that is operational, for example, has continuity. A continuity test is a quick check to see if a circuit is open or closed. Only a closed, complete circuit (one that is switched ON) has continuity.

What is continuity tester used for?

Continuity Tester These testers are great for checking to see if something like a single-pole switch is working properly. Unlike other testers, a continuity tester is always used when a circuit is turned off or on wiring or devices that are disconnected from the circuit.

Can you test continuity on a live circuit?

You can measure the voltage and the current of a live circuit and use those figures to calculate the resistance (Ohm’s Law), but you can’t actually measure the resistance of a live circuit. Continuity testing is the act of testing the resistance between two points.

What is a good continuity reading?

Know that a reading of 0 indicates perfect continuity. If your multimeter reads 0 ohms, it means that there is perfect continuity in the wire, fuse, battery, or device. Most multimeters will beep continuously when testing a connection with good or perfect continuity. A constant 0 indicates a perfect connection.

What is the symbol for continuity?

Continuity: Usually denoted by a wave or diode symbol. This simply tests whether or not a circuit is complete by sending a very small amount of current through the circuit and seeing if it makes it out the other end.

What does no continuity mean?

It means there is a break in the circuit if there is no continuity. This could be a sign of a blown fuse, bad solder joint or an incorrect wired circuit. The most useful test for electronics repair is continuity.

How do I check continuity without a multimeter?

With two wires tape or hold one wire on each end of the contacts (if no tape, you may want to ask someone for help to do this. Turn on the flashlight. Touch the two ends of the wires together and the light should come on. When that works you can now test away.

Is continuity the same as resistance?

Think of it this way: Continuity is a binary version of resistance. If the resistance of the thing we’re testing—the wire we want to make sure isn’t broken, the connection we want to be certain actually goes to ground, the switch we want to know works—is low (like less than 1 ohm), we say that it has continuity.

What is electronic continuity?

Continuity is the presence of a complete path for current flow. A circuit is complete when its switch is closed. A digital multimeter’s Continuity Test mode can be used to test switches, fuses, electrical connections, conductors and other components. A good fuse, for example, should have continuity.

How do I calculate current?

The current is the ratio of the potential difference and the resistance. It is represented as (I). The current formula is given as I = V/R. The SI unit of current is Ampere (Amp).

Article first time published on

What is a diode test?

A diode is best tested by measuring the voltage drop across the diode when it is forward-biased. A forward-biased diode acts as a closed switch, permitting current to flow. A multimeter’s Diode Test mode produces a small voltage between test leads.

What does a 0 reading on an ohmmeter mean?

Measuring resistances below one ohm is just a guess with most DMM ohmmeters. For one ohm and lower resistances a four wire connection (Kelvin) is required. In reality a 0 ohmmeter reading just means “low” or below one ohm. Any numerical value is not to be considered accurate.

What does red mean on a test light?

These don’t pull any power from the tested circuit. Instead, they plug into the cigarette lighter. A red LED means the circuit has power. A green LED means the circuit is connected to ground.

What is use of voltmeter?

voltmeter, instrument that measures voltages of either direct or alternating electric current on a scale usually graduated in volts, millivolts (0.001 volt), or kilovolts (1,000 volts). … The potentiometer operates by comparing the voltage to be measured with known voltage; it is used to measure very low voltages.

How do I test if a wire is live?

To test for a live electrical wire either a non-contact voltage tester or a digital multimeter is used. A non-contact voltage tester is the safest way for testing live wires, performed by placing the machine near the wire.

Is continuity a power?

Continuity is UNBROKEN Conductive path for electricity to flow. This conductive path can be an insulated copper electric wire or a Circuit on a Printed Circuit Board. An Operational Close Circuit is Simplest Example of Continuity in Electricity.

What is the difference between an ohm test and continuity test?

An ohmmeter is used to measure the resistance to electrical flow between two points. Continuity is not a “measurement” as much as it is a yes/no statement. … To say there is continuity is to say that there is a good electrical path between two points.

What is the maximum resistance allowed for continuity?

It will equal zero when the load resistance equals the internal resistance. That will be the maximum.

What is energy formula?

The energy stored in an object due to its position and height is known as potential energy and is given by the formula: P.E. = mgh. Unit. The SI unit of energy is Joules (J).

How is voltage calculated?

When spelled out, it means voltage = current x resistance, or volts = amps x ohms, or V = A x Ω.

What is E in current electricity?

current density and is denoted by j. The SI units of the current density. are A/m2. Further, if E is the magnitude of uniform electric field in the. conductor whose length is l, then the potential difference V across its.

What is diode unit?

diode, an electrical component that allows the flow of current in only one direction. In circuit diagrams, a diode is represented by a triangle with a line across one vertex.

What is forward bias?

What is Forward Bias? Forward bias or biasing is where the external voltage is delivered across the P-N junction diode. In a forward bias setup, the P-side of the diode is attached to the positive terminal and N-side is fixed to the negative side of the battery.

Can I test a diode in circuit?

A diode is a bipolar semiconductor that only allows current to pass in one direction. The positive terminal of a diode is called the anode, and the negative terminal is called the cathode. You can damage a diode by exceeding its rated voltage or current values. … You can test a diode using a multimeter.
