What is an air pressure switch

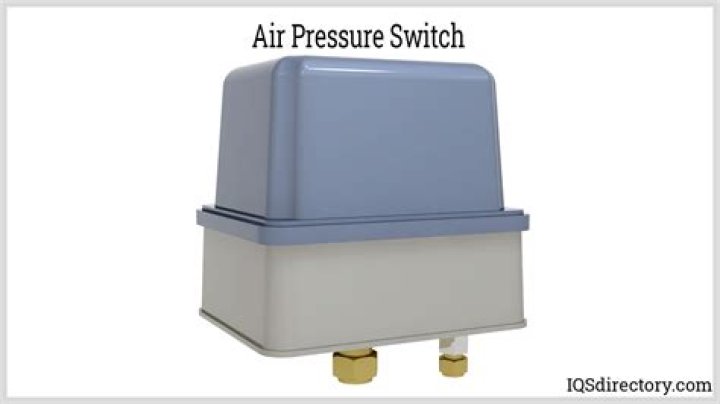

An air pressure switch is a mechanical device that depends on pressure for controlling the electric air compressor’s operation process. The air pressure circuit mechanism of the device sends power to the motor to function. The air compressors’ pressure switch has a pressure switch relief valve.

How does an air pressure switch work?

How Does an Air Compressor Pressure Switch Work? Air compressor pressure switches use air lines to monitor pressurized air as it moves to and from your air tank. … Once this pressure — called cut-in pressure — lightens to a certain level, an internal operator within the diaphragm will deform in an opposite manner.

What causes pressure switch failure?

A pressure switch that fails to turn on could be caused by a number of problems, including: Failure of the draft inducer motor. Restricted intake air vent. Restricted combustion air vent.

What are two types of pressure switches?

• Mechanical (electromechanical)
• Electronic (solid state)

Do Pressure switches need power?

Pressure switches rely on water pressure to do all the work. The change in pressure that activates the switch is provided via the water from the well. The pressure moves up through the diaphragm which presses against a piston and spring, which in turn opens or closes the contacts.

What are the 3 types of pressure?

• absolute pressure.
• gauge pressure.
• differential pressure.

What devices use a pressure switch?

• Water Pumping Systems: This may be the most common use of pressure switches. …
• Compressed Air Systems: …
• Pneumatic and Hydraulic Systems: …
• Air Conditioning and Refrigeration: …
• Furnace and Boiler Systems: …
• Filtering and Screening Equipment:

How do you know if a pressure switch is bad?

Here are some tell-tale signs that your pressure switch is beginning to fail: Your water pressure is at or above the cut-out pressure, yet the pump doesn’t turn off. Your pump doesn’t turn on at the proper cut-in pressure. … Your pump runs, but it cycles on and off repeatedly.

Where is AC pressure switch?

The AC pressure switches are located on either side of the AC unit. You will find one switch on the high side and another on the low side. The low-pressure side switch is found before the AC compressor, while the high-pressure switch comes after the compressor.

What happens if pressure switch goes bad?

It’s what senses when water pressure has dropped to the point where the pressure tank requires more water. The switch then powers up the well pump. If the switch is bad, it won’t start the well pump and you won’t have water, so testing the switch is your first step.

Article first time published on

Where is a pressure switch used?

Pressure switches are important components for controlling the activation and deactivation of pumps in fluid systems when pressure thresholds are reached. They are also used in process control systems for maintaining steady pneumatic or mechanical pressure.

What are the different types of pressure sensors?

• Strain Gauge – Chemical Vapor Deposition Pressure Sensors.
• Strain Gauge – Sputtered Thin Film Pressure Sensors.
• Variable Capacitance Pressure Sensors.

What does a pressure switch do on a air compressor?

A pressure switch is a mechanical device that relies on air pressure to control the operation of an electric air compressor. This simple mechanism completes the circuit and allows power to the motor as long as system pressure is below a specified setting.

What are the 4 types of pressure?

• Absolute pressure. The clearest reference pressure is the pressure zero, which exists in the air-free space of the universe. …
• Atmospheric pressure. The probably most important pressure for life on earth is the atmospheric pressure, pamb (amb = ambiens = ambient). …
• Differential pressure. …
• Overpressure (gauge pressure)

What is air pressure called?

That pressure is called atmospheric pressure, or air pressure. It is the force exerted on a surface by the air above it as gravity pulls it to Earth. Atmospheric pressure is commonly measured with a barometer. In a barometer, a column of mercury in a glass tube rises or falls as the weight of the atmosphere changes.

What is hydrostatic law?

A Hydrostatics Law state that rate of increase of pressure in a vertically downward direction in fluid/liquid is equal to weight density of the liquid.

How much does it cost to replace an AC pressure switch?

If advised an A/C pressure switch has failed and needs to be replaced, be prepared to pay around $250 to $500, depending on your vehicle and where the switch is located.

What is the purpose of a high pressure switch?

A high pressure switch (HPS) and a low pressure switch (LPS) are protective devices for the compressor and refrigeration circuit. The high pressure switch monitors the system for an inoperative outdoor motor, and/or a dirty/restricted condenser (outdoor) coil.

How long does a pressure switch last?

The pressure switch can last for several years, but sometimes it can fail much sooner than you expect. To avoid being left without a functioning well, some homeowners simply have the switch replaced every year. Your well pump contractor can make this replacement when they come out for their yearly maintenance visit.

Why does my pressure switch Keep clicking on and off?

Switch Clicks On and Off Repeatedly One of the most frequent culprits is a blown bladder in the water tank. You’ll need to replace this component, and also inspect the switch contacts to see if they’ve suffered any damage from the cycling.

Will a bad pressure switch trip the breaker?

Pressure Switch If the contacts aren’t working right or at all, it can cause a pressure relay problem that can make your system overdraw amperage that can trip your breaker.

Why does my furnace have 2 pressure switches?

Two Stage: If you have a two stage furnace, it is likely that you will have two pressure switches. This is because your furnace has two heat exchangers, requiring each exchanger to have its own switch. Draft pressure switches tend to operate at 24 volts.

Are furnace pressure switches Universal?

Different furnaces may have different types of pressure switches in them. Based on the size of the unit (meaning heat output capability, not the physical dimensions), the amount of suction the pressure switch requires to work will vary.

What is manual air ride?

Details. The Bag Riders Manual Air Management is one of the most reliable air management options for your car due to its simple design and lack of electrical or digital components. The heart and namesake of the system are the Manual Paddle Valves which function as both the controller and valve block (manifold).

How far can pressure switch be from tank?

You can use a 1″ or 1 1/4″ pipe to connect the main line to the 1 1/4″ bladder tank. Never use a 1 1/4″ line to connect to a 1″ tank inlet. Never start with a larger size for any distance and then change over to a smaller size pipe before the tank. Always have at least 12″ of pipe from the main line to the tank.

What size well pressure switch do I need?

For a single level home or a two story home without water fixtures on the 2nd floor a 30/50 PSI setting may be sufficient. For two or more levels with water fixtures on more than one level you may want to use 40/60 PSI setting. It’s easier for a pump to supply the lower pressures and it’s less strain on old plumbing.

How does boiler air pressure switch work?

The air pressure switch in a boiler ensures that waste gases are being expelled, before allowing to fire up. The fan creates a draft which allows harmful gases to be released from the boiler via the flue. For your boiler to fire up, the pressure switch needs to have recognised that the fan is running first.
