What is a tapping sleeve and valve?
What is a tapping sleeve and valve?
A tapping sleeve and valve allows access to and branching off of an existing water main. A Tapping Sleeve and Valve differs from an ‘Inserting Sleeve and Valve’ in that it does not allow closure of the mainline, only closure of the branch being added by way of the new valve.
What is a tapping sleeve used for?
Tapping sleeves are used to attach tapping valves or gate valves to water mains so water mains can be extended for future develop, to install new fire hydrants on existing lines, increase fire protection for buildings, etc.
What is the difference between a tapping sleeve and a tapping saddle?
Use of service saddles eliminate problems common to direct taps, such as leaking threads or split pipe and they reinforce the critical connection. JCM Tapping Sleeves place design emphasis on eliminating problems inherent with older pipe and field installations.
What is a tapping gate valve?
A tapping valve is used to connect domestic service lines and is the transition from the main supply pipe to the building. It realizes a branch, without taking the supply line out of service and thus avoids the impairment of entire districts or supply areas.
What is hot tapping in pipeline?
Hot tapping is also referred to as line tapping, pressure tapping, pressure cutting, and side cutting. The process involves attaching branch connections and cutting holes into the operating pipeline without interruption of gas flow, and with no release or loss of product.
What is a TS&V?

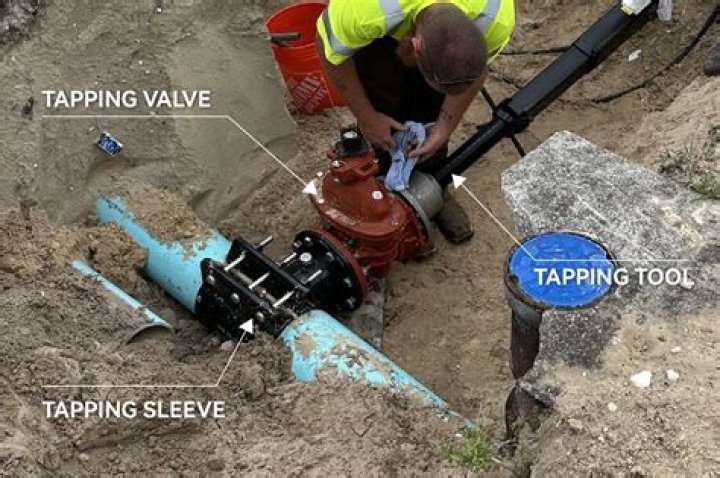

Wet Tapping and Hot Tapping are synonymous terms describing the cutting of a hole in an existing pressure main. A Tapping Sleeve and Valve are used to facilitate the cutting of the hole in the main while under pressure, providing a permanent branch connection.
What is a tapping saddle?
Tapping saddles are ideal for service connections and provide an effective means of conducting an under pressure tapping. The saddle body supplies a strong reinforced aperture for the parent and offtake pipe.
Can you hot tap copper pipe?
You save time and money by avoiding shut-downs and draining the system. Hot Tap Copper Pipe while it is under pressure to 150 psi on waterworks applications. They come in the hard-to-find smaller Copper Pipe O.D. and size-on-size to 4.0″ IPS outlet.
Is a tapping valve a gate valve?
Tapping valves may also be used to install other system valves, such as a ball or gate valve, into an existing main or pipeline. A swedge tapping valve is a type of hot tapping valve that enables the tapping of butterfly valves and adding new connections to existing pipelines without interrupting the flow in the line.
What is wet tapping?
When you do wet tapping, you place a tapping fitting on the water main in addition to a valve to control the water at that line. Once the fitting and valve are in place, the main is tapped. Once the drill is pulled back, the valve is closed, keeping water from leaking out of the main.
What are tapping valves and sleeves used for?
Tapping Valves & Sleeves (Mueller ®) Mueller ® tapping materials include a full range of sleeves and crosses, stainless steel tapping sleeves, tapping valves, split sleeves, cut-in valves, and valve parts. These products are used on a wide variety of pipe materials and diameters.
What kind of metal is a tapping sleeve made of?
Tapping sleeves are typically made of primarily stainless steel and aside from the bolts/etc, are typically two piece assemblies. The first piece will have a flange on it (for connection to the gate valve) and will be attached to a rubber gasketed saddle which will ultimately be placed over the existing pipe.
Can a live tap be used on a main line?
The isolated section of main may require bacteria and pressure testing before reopening. The benefit of a live tap however is avoiding loss of water services to residences or businesses that would have otherwise been shut down due to a section of the main line being shutdown.
When to use hot tap or wet tap?
-A live (aka ‘wet’ or ‘hot’) tap when the existing main remains in operation. An example of when a standard tap might be done is when the section to be tapped can be isolated with existing valves and no other branches/services exist on the isolated piece.
Tapping Valves & Sleeves (Mueller ®) Mueller ® tapping materials include a full range of sleeves and crosses, stainless steel tapping sleeves, tapping valves, split sleeves, cut-in valves, and valve parts. These products are used on a wide variety of pipe materials and diameters.
What is the pressure of a tapping sleeve?
Up to 175 psi. 6″ – 12″: up to 250 psi; 14″ – 42″: up to 150 psi; 48″ and larger: up to 100 psi. For higher pressures, contact your representative. Fabricated steel tapping sleeve with side and end gasket seals. Used to make a branch outlet from a main supply line with extra protection for lines subjected to excessive beam loads.
Tapping sleeves are typically made of primarily stainless steel and aside from the bolts/etc, are typically two piece assemblies. The first piece will have a flange on it (for connection to the gate valve) and will be attached to a rubber gasketed saddle which will ultimately be placed over the existing pipe.
What kind of tapping sleeves does Mueller use?
Mueller Co. offers a full range of NSF 61 and Annex G certified mechanical joint tapping sleeves and crosses to fit most types of pipe, including cast iron, ductile iron, A-C and cast iron O.D. PVC. Outlet sealed tapping sleeves for C900 O.D. PVC, ductile iron, and cast iron pipe are also available.
