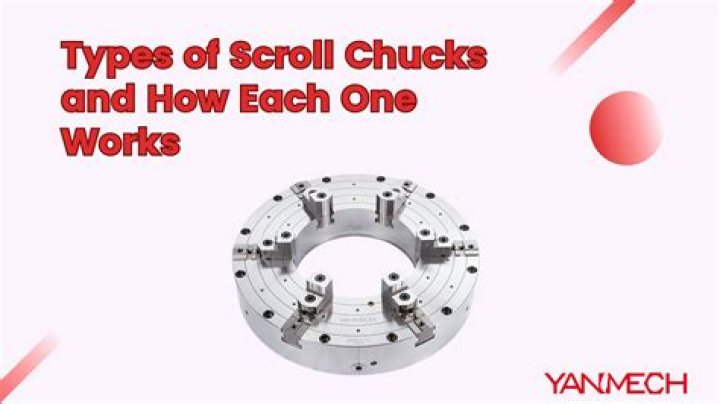

What is a scroll chuck

Three-jaw chuckFour jaws chuckThree jaw chuck has less gripping power than four jaw chuck.Four-jaw chuck has more gripping power than three-jaw chuckIn three-jaw chuck, heavier workpieces cannot be turned.In four chuck heavier workpieces can be turned.

How many types of chuck are there?

Three-jaw chuckFour jaws chuckThree jaw chuck has less gripping power than four jaw chuck.Four-jaw chuck has more gripping power than three-jaw chuckIn three-jaw chuck, heavier workpieces cannot be turned.In four chuck heavier workpieces can be turned.

What is a chuck on a lathe?

Lathe chucks are used to accurately clamp a workpiece on a lathe for turning operations or can be used on an indexing fixture for milling operations. Manual lathe chucks manually open or close jaws with a screw or pinion. … Forged Steel or steel chucks have greater accuracy, less wear and can be operated at higher RPMs.

Do you need a lathe chuck?

While this chuck is convenient it is not necessary for your turning. Most lathes come with a small faceplate. We will look at turning between centers and how to use a faceplate when mounting wood on your lathe. Here are two ways you can turn without using a multi-jawed chuck.

Which type of chuck is used for self?

Explanation: Three jaw chuck is also known as universal or self centering chuck. The majority of the chucks have two sets of jaws for holding internal and external diameters.

How accurate is a 3 jaw chuck?

A 3 jaw is reliably accurate to around 0.010, while a 4 jaw can be accurate between 0 and 0.001. Number of chuck wrench holes: Choose a 4 jaw chuck and you’ll have four separate holes to adjust the jaws. A 3 jaw type chuck only has one hole for tightening or releasing the workpiece.

What is 4 jaw chuck used for?

4 jaw independent chucks have four separate jaws that can be adjusted to grip onto a workpiece. This offers significant advantages. You can use a 4 jaw chuck lathe to safely hold square, hexagonal, wound, and irregular-shaped workpieces, with the independent movement of the jaws enabling accurate adjustment.

What is a scroll chuck for wood lathe?

Now variously called engineering or scroll chucks, the jaws of these are usually of two pieces. The bottom jaw has a rack on the bottom and fits snugly in a T-shaped radial keyway in the chuck body. A scroll plate engages the racks on the bottom side of the jaws.

Why is 3 jaw chuck called universal?

Three-jaw universal chuck: It grasps the work quickly and within a few hundredths of a millimeters or thousandths of an inch of accuracy, because the three jaws move simultaneously when adjusted by the chuck wrench. This simultaneous motion is cause by a scroll plate into which all here jaws fit.

How does a power chuck work?

The power chuck is a work-holding device that uses jaws (typically 3 or 4 jaws) to secure the workpiece. The clamping force comes from an automated power source (mechanical, electrical, or other mechanisms), hence the name.

Article first time published on

What is a plain back chuck?

For those of you who are not familiar with chuck mounting, “plain back”” means that a backing plate is required to mount the chuck to your lathe. … This top quality chuck has a semi-steel body and comes with two sets of hardened jaws. It is self-centering and has plain backs.

Which type of job does the scroll perform in three jaw chuck?

Which type of job, does the scroll perform in three jaw chuck? Explanation: Scroll does both jobs. The scroll not only clamps a component in place but also locates the component. This is fundamentally a practice since any wear in the scroll and/or the jaw impairs the accuracy of location.

How does a 3 jaw chuck work?

How Does a 3 Jaw Chuck Work? Three-jaw chucks are often used on lathe machines and indexing heads. All of the jaws of three-jaw chucks are fitted into a scroll plate, which makes the 3 jaws can move simultaneously when adjusted by the chuck wrench, then grasps the lathe part very quickly and accurately.

Is known as Universal chuck?

Detailed Solution. Explanation: Three Jaw Chuck: It is also known as three jaws universal chuck, self-centering chuck, and concentric chuck having three jaws that work at the same time.

What is spigot turning?

A woodturning tenon that is simply a straight cylinder is usually actually called a spigot. And there is a chuck designed with straight jaws to hold this type of tenon called a spigot chuck. … In my experience, it is very easy to apply too much force and move the bowl when it is mounted to a serrated style chuck.

What is the demerit of 3-jaw chuck?

Disadvantages of a 3-jaw: can’t hold square bar-stock. run-out/off-center can’t be easily fixed. can’t hold irregularly shaped work.

Why should a work piece be placed at the center of the chuck?

The primary use of a center is to ensure concentric work is produced; this allows the workpiece to be transferred between machining (or inspection) operations without any loss of accuracy. A part may be turned in a lathe, sent off for hardening and tempering and then ground between centers in a cylindrical grinder.

Is 4-jaw chuck accurate?

Differences between a 3-Jaw chuck and a 4-jaw chuck Accuracy level is about 0.010 Accuracy level is between 0 and 0.001 3-Jaw chuck has one hole for the chuck key/wrench to tighten or release the jaws’ grip. 4-Jaw chuck has four holes for the chuck key/wrench to control each jaw, one at a time.

What is the most accurate Chuck to use on a manual lathe?

Three jaw lathe chuck: This version of the chuck is one of the most commonly used due to its versatility. This type excels at centering materials quickly and accurately. However, it tends to have less grip strength than the four jaw chuck.

What is one of the two most common lathe workholding devices?

> Chucks – Chucks are probably the most widely adopted type of workholding device on the lathe. They are efficient and accurate and work well with most types of workpieces.

What type of chuck is used in capstan lathe?

The work holding devices used on the capstan lathe are generally automatic type. These automatic type work holding devices reduces the setup time. Collets are also called as collet chucks. It is mainly used to long bar stocks of various shapes operated either by hand or by power.

What is four jaw independent chuck?

a device that holds a workpiece in a lathe or tool in a drill, having a number of adjustable jaws geared to move in unison to centralize the workpiece or tool. b. Also called: four jaw chuck, independent jaw chuck. a similar device having independently adjustable jaws for holding an unsymmetrical workpiece.

What is TPI in lathe?

Make the choices to define your lathe below before calculating a thread pitch. Enter the desired pitch in TPI (Threads Per Inch) or millimeters (mm from crest to crest).

How are metal lathe chucks measured?

Measure the distance between both ends of the center of the chuck. Slide the tape measurement through the hole in the chuck and take a measurement of the chuck’s length. This measurement represents the maximum amount of material the lathe can accommodate.

What is faceplate turning?

In faceplate turning, a chunk of wood, called a blank, is mounted on a plate or chuck, and attached to the headstock of a lathe, most commonly with the direction of the grain running perpendicular to the lathe bed. The tailstock is often not used, but can temporarily steady an unwieldy workpiece.

What is a bowl gouge woodturning?

Bowl Gouges. Bowl gouges are designed to be strong and remove wood quickly relative to the size of the tool. Unlike spindle gouges the flute is U shape or V shape with a radius at the bottom of the V, this enables the efficient removal of shavings.

What are Cole jaws used for?

Cole jaws are most commonly used to clear away mounting spigots, or tidy up any unwanted mounting marks from turning. But you could always add some decoration to the base of your work to create that extra special finish to your work.
