What is a plumbing rough-in inspection?
What is a plumbing rough-in inspection?

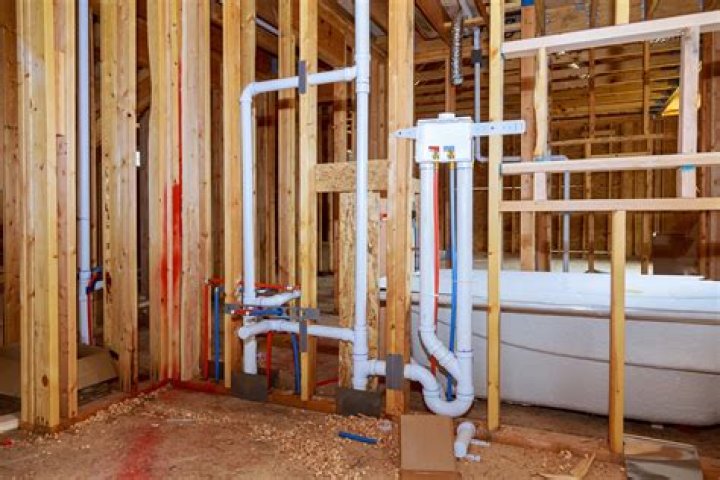

A plumbing rough-in means that all water supply and drain pipes have been run through bored holes in the studs and other framing members and that all pipe connections have been made. A rough-in plumbing installation will need to be pressure-tested before it is deemed complete.
How many PSI is the required test for the drainage system?
d) Water Supply System. Upon completion of a section, or the entire water supply system, the system shall be tested and proved tight under a water pressure at least one and one-half (1 ½) times the system pressure but at least 100 p.s.i., by air or water.
How do you pressure test a plumbing drain?
Fill the pipes to a pressure of 5psi, then turn off the compressor. Watch the air-pressure reading for 15 minutes. If the pressure drops at all, then you have a leak in the pipes.
When carrying out a pressure test on a pipe it should be?
The test pressure for service air and water piping should be 1½× the design pressure or 700 kPa (100 psi) for steel piping, whichever is higher.
What is the minimum psi per 2015 IRC Code?
1,500 psi
Masonry systems shall be designed and installed in accordance with this chapter and shall have a minimum specified compressive strength of 1,500 psi (10.3 MPa).
What kind of test is done on drain pipes?
Hydrostatic testing is a method used to test sanitary drain pipes for strength and leaks. When performing a hydrostatic test on a home’s drain pipes, a plumber typically fills the drain system with water and notes if the water level goes down over time.
How can you tell if your sewer line is clogged?
Here are some signs that you may be facing a clog in the main sewer drain line. An obvious sign of a sewer drain clog is when more than one plumbing fixture backs up at the same time.
What do you need to know about plumbing testing?
The TREC Standards Of Practice for licensed inspectors specifically states under the plumbing section of the SOP that the inspector SHALL inspect for leaks in the waste water and potable water supply systems. This can only been completed by performing a hydro-static test on the sewer lines under a slab.
What do you need to know about toilet drain lines?
Check that the pipe slopes 1/8 to 1/4 inch down to the fitting. (If necessary you can trim the top of the closet bend after the flooring has been replaced.) Once you are sure the toilet drain setup is correct, mark the alignment of the fittings and disassemble. Prime and glue the pieces. Support the closet bend with a strap.
How do you test the pressure of a drain system?
For drain systems, it’s much lower — about 5 psi. Turn off the compressor and leave the system pressurized for 15 minutes. Any reduction in pressure during that time signifies the presence of a leak. Air-test a system of water pipes by turning off the main shutoff valve and draining the water from the system.
How much psi do you need to test drain waste vent?
According to IRC, for supply system testing. You have to test using the maximum working pressure (80 psi) of water, or 50 psi of air. And you have to maintain the pressure for 15 minutes. For air testing drain-waste-vent (DWV) systems, you have to maintain 5 psi for 15 minutes.
When do you test a new plumbing line?
Pressure testing identifies potential problems before you pay for the inspector. Testing new plumbing lines occurs after installation and before drywall or other building materials cover the pipes. Local building codes forbid using the pipes or concealing the pipes in any way before their inspection by a city or county official.
Can a home inspector test a drain system?
Just called the inspector regarding either air or water testing for the drain and vent system for a new house. He was very nice and tried to be helpful, but it was difficlut to get a complete picture of what he was saying.
