What is a gasifier system
Gasification Introduction. Gasification is a technological process that can convert any carbonaceous (carbon-based) raw material such as coal into fuel gas, also known as synthesis gas (syngas for short). Syngas is so called because of its history as an intermediate in the production of synthetic natural gas. …
How does a gasifier work?
Combustion uses an abundance of oxygen to produce heat and light by burning. Gasification uses only a tiny amount of oxygen, which is combined with steam and cooked under intense pressure. This initiates a series of reactions that produces a gaseous mixture composed primarily of carbon monoxide and hydrogen.
What gas does a gasifier make?
2.2. Air-based gasifiers typically produce a product gas containing a relatively high concentration of nitrogen with a low heating value. Oxygen and steam-based gasifiers produce a product gas containing a relatively high concentration of hydrogen and carbon monoxide, with a higher heating value [17].
What are the benefits of installing a gasifier?
There are manifold benefits to be gained from installing a gasifier, including: Cost Stability: Gasifiers operate on wood blocks/ wood chips, which has a relatively stable price. So the variation (sudden spurts) of oil prices does not affect the cost of production.What is gasifier technology?
Gasification technology is basically a process for converting solid or liquid feedstock into a gaseous or liquefied fuel that can be burned to release energy.
How many types of gasifiers are there?
There are three types of fixed bed gasifiers: updraft (counter-current), downdraft (co-current), and cross draft gasifier.
What are the different types of gasifiers?
- 1 Updraught or counter current gasifier. The oldest and simplest type of gasifier is the counter current or updraught gasifier shown schematically in Fig. …
- 2 Downdraught or co-current gasifiers. …
- Cross-draught gasifier. …
- Fluidized bed gasifier. …
- 5 Other types of gasifiers.
What are the three main types of gasifiers?
6.1. Based on the gas–solid contacting mode, gasifiers are broadly divided into three principal types (Table 6.1): (1) fixed or moving bed, (2) fluidized bed, and (3) entrained flow.What are the disadvantages of gasification?
There is a lack of internal heat exchange in comparison to the updraught gasifier. Less efficiency due to the low heating value of gases. The gasifier can turn inefficient under high uniform temperatures and may become impractical for power ranges above 350 kW.
When was gasification invented?History of Gasification By 1850, the major cities of the world had “gaslight.” About 1880, the internal combustion engine was invented and “Producer Gas” was used to make electricity. Eventually, natural gas pipelines displaced the municipal plants.
Article first time published onHow does a gasifier stove work?
With a TLUD stove, the fuel is loaded all at once into a container and lit from the top of the stove. Slowly, the top fire heats biomass below, and it gasifies. The flame burns the gas emitting from hot biomass below. When all the gas is gone, only charcoal is left and the flame goes out.
Why do we do gasification?
An advantage of gasification is that syngas can be more efficient than direct combustion of the original feedstock material because it can be combusted at higher temperatures so that the thermodynamic upper limit to the efficiency defined by Carnot’s rule is higher.
Who invented the gasification?
The first public piped gas supply was to 13 gas lamps, each with three glass globes along the length of Pall Mall, London in 1807. The credit for this goes to the inventor and entrepreneur Fredrick Winsor and the plumber Thomas Sugg, who made and laid the pipes.
How does wood gasifier work?
A wood gasification boiler. Wood is burned in the firebox (top), and gases travel downward and are burned at 1,800 to 2,000 F in the ceramic chamber below. The hot gases then pass through a fire-tube heat exchanger to transfer heat to water stored in a large tank.
What is a gasifier plant?
Gasification is a technological process that can convert any carbonaceous (carbon-based) raw material such as coal into fuel gas, also known as synthesis gas (syngas for short). … Polygeneration plants that produce multiple products are uniquely possible with gasification technologies.
What are the products of gasification?
The main product of gasification is a mixture of gases (“producer gas”) with the main components H2, CO, CO2, H2O, CH4, and air nitrogen. This technology produces a gas with a low heating value (4–6 MJ/m3) and an 8–14 vol% H2 content only.
What is the difference between updraft and downdraft gasifier?
In downdraft gasifiers, both fuel and the gas move downward. In updraft gasifiers, fuel moves downward and gas upward. In co-current gasifiers, the fuel and gas move in the same direction, usually downward (downdraft gasifiers), but the movement can also be upward.

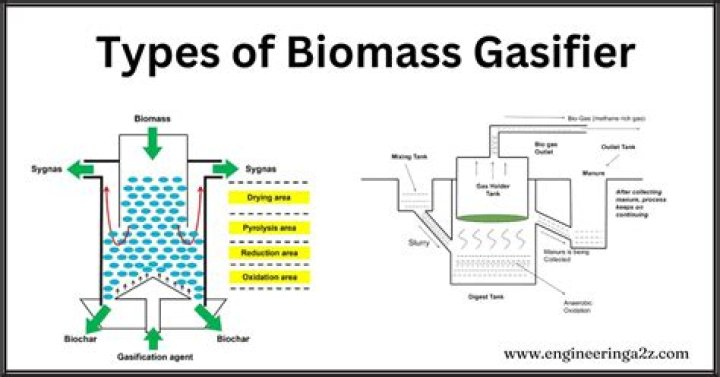

What are characteristics of four different zones in a gasifier?
The gasification process in the updraft fixed-bed gasifier also has four zones, namely, the drying zone, the pyrolysis zone, the oxidation zone and the reduction zone; however, the oxidation zone is at the bottom and the reduction zone is above it.
Why is gasification better than combustion?
Combustion route is much better known for a long time technically and commercially. Gasification process converts solid fuel into a gaseous fuel through a process of high temperature oxidation-reduction reactions.
What is a fixed bed gasifier?
Fixed bed gasifiers, which consist of a fixed bed of biomass through which the oxidation medium flows in updraft or downdraft configuration, are simple and reliable designs and can be used to gasify wet biomass economically on a small scale for CHP applications (Wang et al., 2008).
Is gasification bad for environment?
Gasification and co-gasification can be an environmentally safe and an effective method for the disposal of various types of waste.
Is gasification an incinerator?
Incineration is direct combustion of feedstock by rapid flame oxidation, resulting in ash. Gasification is a chemical process that occurs at high temperatures in the absence of sufficient oxygen to propagate and maintain a flame (also “starved air” combustion).
Why is gasification expensive?
As we can see, gasification is more expensive technology than incineration (up to 1.5 times), as due to technological differences, so due to mass production of incinerators. … So, gasification is more efficient, but more costly.
Which of the following are key to design a gasifier?
Which of the following are keys to design a gasifier? Explanation: The key to gasifier design is to create conditions such that biomass is reduced to charcoal and the charcoal converted to carbon monoxide and hydrogen at suitable temperatures. It is important to note that biomass is reduced and not oxidized. 14.
Which is the oldest and simplest type of gasifier?
Explanation: The oldest and simplest type of gasifier is the counter current or up draught gasifier. The major advantage of this type of gasifier are its simplicity, high charcoal burnout and internal heat exchange leading to low gas exit temperatures and high equipment efficiency.
What is coke gasification?
Gasification is a known method for converting petroleum coke (petcoke) and other refinery waste streams and residuals (vacuum residual, visbreaker tar, and deasphalter pitch) into power, steam, and hydrogen for use in the production of cleaner transportation fuels.
What is syngas used for?
The name comes from its use as intermediates in creating synthetic natural gas (SNG) and for producing ammonia or methanol. Syngas is usually a product of coal gasification and the main application is electricity generation. Syngas is combustible and can be used as a fuel of internal combustion engines.
What are gasifier stoves?
A gasifier produces gas from biomass wastes such as wood chunks, corn cobs and straw. The gas burns cleanly with high heat release and high combustion intensity in a conventional stove burner. The gasifier-stove consists of a down-draft gasifier and a stove with two burners.
Is a rocket stove a gasifier?
To expand on that, gasifiers are usually made out of very thin material and get smoking hot, where rocket stoves can be thicker, and the thicker material doesn’t get quite as hot, but still enough to burn oneself. … It’s not a true rocket stove or a true gasifier.
What are the steps of gasification?
- Step 1: Gasification. Gasification turns coal into a very hot (up to 1800°C) synthesis gas, or syngas, which is composed of carbon monoxide, hydrogen and carbon dioxide, as well as small amounts of other gases and particles. …
- Step 2: Cooling and Cleaning. …
- Step 3: Shifting. …
- Step 4: Purification. …
- Step 5: Usage.
How is gasification different from burning garbage?
In a waste-to-energy plant that uses incineration, these hot gases are used to make steam, which is then used to generate electricity. Gasification converts MSW to a usable synthesis gas, or syngas. … In the gasification process, the MSW is not a fuel, but a feedstock for a high temperature chemical conversion process.
