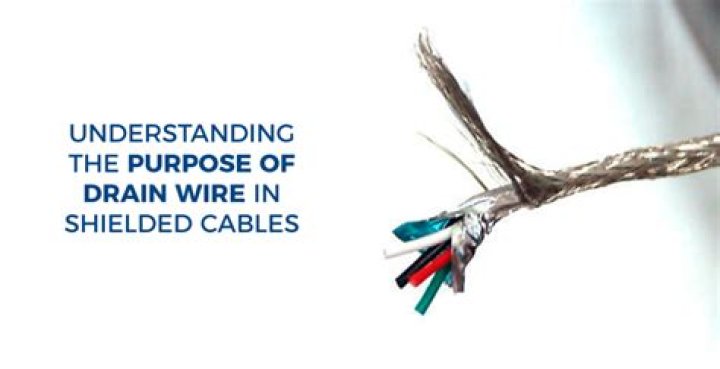

What is a drain wire in shielded cable

Drain wires are used in cables in conjunction with a metallic shield to ensure effective grounding. The drain wire serves to complete an electrical circuit from the shield and carry unwanted electrical noise to ground away from the circuit.

What is a drain shield wire?

The drain wire is a part of a shield within a cable that reduces the resistance from any point on the shield to ground. A drain wire carries extraneous electrical noise to ground and away from the circuit or system.

What should you do with the drain wire of a screened cable?

The wire remains in contact with the metallic side of the shielding tape all through the body of the cable. That places the drain wire in an ideal position to connect a shielded cable to its ground terminal.

Where do you connect shield drain wire?

In general the shield should go the chassis if the chassis is also connected to circuit common. Otherwise it should probably be connected to circuit common. You may have to try both to see which works best if you have an EMI problem. For RF protection the shield is connected at both ends.

Do you ground both ends of a shielded cable?

The cable shield works best when the signal lines are completely surrounded by a conductive “tunnel” that is completely at ground potential. That means it should be grounded at BOTH ends (grounded at one end means the other end is similar to an antenna at some frequencies).

What is USB drain wire?

That is the drain wire that helps carry charge off of the foil jacket and carries more current than the foil can. It is part of the shield/ground of the cable.

What is a drain wire in cable?

Drain wires are used in cables in conjunction with a metallic shield to ensure effective grounding. The drain wire serves to complete an electrical circuit from the shield and carry unwanted electrical noise to ground away from the circuit. … The drain wires are usually tinned copper conductors.

What happens if you don't ground a shielded cable?

If you do not ground the shield, EMI will induce voltages in the shield which will also be seen on the signal owing to the capacitance effect of the coaxial cable. (Note that the shield should be grounded at one end only in order to prevent current loops in the shield… but that’s another story).

Where should the shield of a shielded cable to terminated?

The best way to wire shielded cables for screening is to ground the shield at both ends of the cable. Traditionally there existed a rule of thumb to ground only the source end of the shield to avoid ground loops. Best practice is to ground at both ends, but there is a possibility of ground loops.

What is the difference between shielding and grounding?

Grounding means to connect electrical equipment to a common reference ground or earth. Shielding is used both for immunity (protecting against external interference) and emission (preventing interference to be radiated).

Article first time published on

How do you shield electrical interference?

An easy and effective way to minimize capacitively coupled interference is to use cable shielding. The shield is a Gaussian or equi-potential surface on which electric fields can terminate and return to ground without affecting the internal conductors.

How do you ground shielded Ethernet cable?

1. Connect the shield at the source switch end of the cable only. …
2. Ground the Patch Panel itself to earth ground.
3. For the ETH cable leaving the Patch Panel, connect the shield at the Patch Panel End and leave the destination end shield unterminated/unconnected.

How do you shield a cable with aluminum foil?

aluminum) foil with a 1/2-mil thick polyester backing to increase mechanical strength. The shield can be overlapped with the foil facing in or the foil facing out. A drain wire is placed in contact with the foil side of the shield to provide easier grounding of the shield at cable terminations.

How do you stop shielding?

Usually, rather than attempting to ground the entire shield, the drain wire is used to terminate and ground the shield. A braid is a woven mesh of bare or tinned copper wires. The braid provides a low-resistance path to ground and is much easier to termination by crimping or soldering when attaching a connector.

What is cable grounding?

Grounding gives electricity the most effective way to return to the ground via your electrical panel. A grounding wire gives an appliance or electrical device a safe way to discharge excess electricity. An electrical circuit relies on both positive and negative electricity.

What is EMI shielding?

EMI Shielding in electronic devices and equipment is the use of manufacturing techniques and materials to protect signals from being disrupted by external electromagnetic signals as well as preventing generated signals from interfering with surrounding components.

Is shielding an effect?

The shielding effect can be defined as a reduction in the effective nuclear charge on the electron cloud, due to a difference in the attraction forces on the electrons in the atom. It is a special case of electric-field screening. This effect also has some significance in many projects in material sciences.

What is shielding in measurement?

The purpose of shielding is to reduce or eliminate noise currents from coupling into electrical measurements. These currents can originate from point sources of charge, generating E‑fields and voltage distributions.

What are the three ways to prevent electromagnetic interference?

There are three different methods to help reduce or eliminate EMI: filtering, grounding, and shielding.

Why is cable shielding necessary?

Shielded cable is necessary to reduce and prevent all the effects of EMI and the other hazards found in busy, industrial workplaces. The shield reflects energy and grounds electrical noise by surrounding the power-carrying conductors or inner signals.

How can I protect my cable from EMI?

Use twisted pair shielded cable to carry instrumentation signals. Twisting the wires equalizes the effect of EMI on both wires, greatly reducing error due to EMI. Surrounding the instrument wires with a shield protects them from EMI, and provides a path for EMI-generated current to flow into ground.

Does shielded CAT6 need to be grounded?

Any shielded cable must be properly grounded. That requires connectors and equipment that properly ground the shield, at least on both ends. Improperly-grounded, shielded cable will be a problem because the shield will exacerbate the problems it is meant to prevent.

When should you use a shielded Ethernet cable?

Shielded cables are stiffer, larger, and require grounding, but if transmission speed and added security (suppression of alien cross talk and containment of network signals) are critical to the operation, shielded cables may be the way to go.

Can shielded wire be repaired?

This can be done either with electrical insulation tape or by cutting off the damaged area entirely and then retrimming the wires inside. … Use a utility knife to strip back the sheathing.

Why are wires wrapped in foil?

In communication cables, aluminium foil gives long-term insulation against moisture and attack from naturally occurring corrosive elements found above and below the ground. Aluminium foil also acts as an insulator against the magnetic and radio frequency fields associated with metal electrical cables.
