What is a common wire in irrigation?
What is a common wire in irrigation?

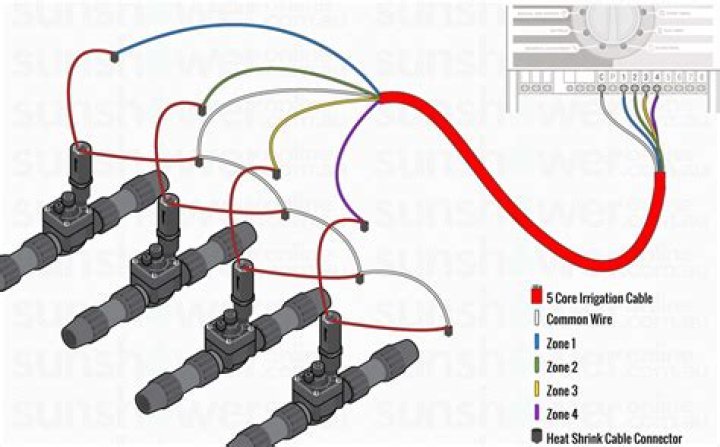

The “common wire” is run in series and is connected to all the valves in the system, whereas the “hot wires” are run from each zone at the irrigation controller to each valve in the field. This is how each zone is operated independently from the irrigation controller.
What color is the common wire on a sprinkler system?
white
The common wire is usually white in color and runs from your controller to your master cylinder and then to each of the other valves on your irrigation system in turn. If something happens to cut your common wire, then every valve after the cut will fail to turn on when activated.
How to design your own irrigation system with Toro?
1. Follow the instructions in this guide and use the layout paper on page 6 to design and draw your irrigation system . OR, 2. let Toro do the irrigation system design for you! See page 4 for more information on Toro’s Sprinkler Design Service . In either case, you will need to complete sections A – D .
Where can I find the Toro service manual?
Access to ALL Service Manuals pertinent to your fleet is available by subscribing to TORO myTurf. If myTurf is not an option, due to lack of high speed internet connectivity, or your Distributor does not yet support myTurf, our entire library of Service Manuals is available on the Service Reference.
How to design and install an automatic irrigation system?
There are two options for getting a design for your automatic irrigation system: 1. Follow the instructions in this guide and use the layout paper on page 6 to design and draw your irrigation system . OR, 2. let Toro do the irrigation system design for you! See page 4 for more information on Toro’s Sprinkler Design Service .
What should the spacing be for Toro sprinklers?
For example, if you are using Toro 570™ sprinklers with a radius of 15’, place your sprinklers no more than 15’ apart – closer together if you are in a windy area . Tip: To make sure you have proper head-to-head spacing, use a compass to draw arcs representing sprinkler coverage, as shown in the diagram.
1. Follow the instructions in this guide and use the layout paper on page 6 to design and draw your irrigation system . OR, 2. let Toro do the irrigation system design for you! See page 4 for more information on Toro’s Sprinkler Design Service . In either case, you will need to complete sections A – D .
There are two options for getting a design for your automatic irrigation system: 1. Follow the instructions in this guide and use the layout paper on page 6 to design and draw your irrigation system . OR, 2. let Toro do the irrigation system design for you! See page 4 for more information on Toro’s Sprinkler Design Service .
For example, if you are using Toro 570™ sprinklers with a radius of 15’, place your sprinklers no more than 15’ apart – closer together if you are in a windy area . Tip: To make sure you have proper head-to-head spacing, use a compass to draw arcs representing sprinkler coverage, as shown in the diagram.
What is the Toro flow and pressure gauge?
The Toro Flow and Pressure Gauge is a dual purpose device designed to measure water pressure to 160 PSI and water flow to 13 GPM . This flow and pressure gauge is not intended for use on lines larger than one inch . The gauge will only measure flow through the outside faucet – not in the line .
