What is a clamp on ammeter used to measure?
What is a clamp on ammeter used to measure?
Clamps measure current. Probes measure voltage. Having a hinged jaw integrated into an electrical meter allows technicians to clamp the jaws around a wire, cable or other conductor at any point in an electrical system, then measure current in that circuit without disconnecting/deenergizing it.
What does an amp clamp do?
Current clamps are also referred to as clamp-on current probes or Amp clamps in America. They enable you to measure currents without breaking the electrical circuit. Current clamps feature opening and closing jaws that can be placed around a wire (conductor) where a magnetic loop is formed.
What does a current clamp measure?
In a current-clamp experiment, one applies a known current and measures the change in membrane potential (Vm) caused by the applied current. This type of experiment mimics the current produced by a synaptic input.
What is the difference between voltage clamp and current clamp?
Unlike in the voltage clamp mode, where the membrane potential is held at a level determined by the experimenter, in “current clamp” mode the membrane potential is free to vary, and the amplifier records whatever voltage the cell generates on its own or as a result of stimulation.

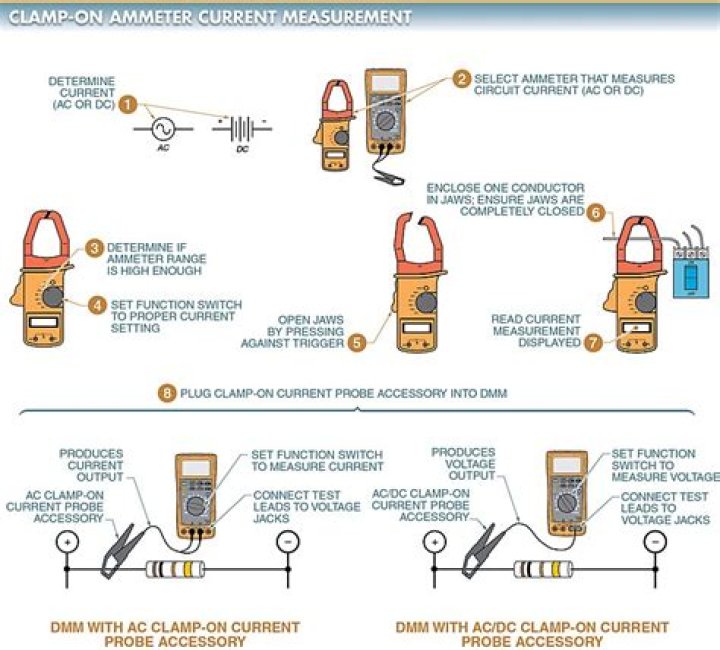

How to use a clamp meter to measure Amps?
How to Use a Clamp Meter to Measure Amps. To measure current using a clamp-on ammeter, the following procedure is applied: Determine if AC or DC current is to be measured. Select the ammeter required to measure the circuit current (AC or DC). If both AC and DC measurements are required, select an ammeter that can measure both AC and DC.
How does an ammeter measure current in a circuit?
Current is the measure of the flow of electricity through a circuit in amperes (amps) by a device known as an ammeter. You can check amperage by wiring an ammeter into the circuit (also called “in-series”), or you can detect current by clamping an induction meter around a wire.
How does a clamp meter work on a DMM?
Read the current measurement displayed. If required, plug the clamp-on current probe accessory into the DMM. The black test lead of the clamp-on current probe accessory is plugged into the common jack. The red test lead is plugged into the mA jack for current measurement accessories that produce a current output.
How are amps used to measure electricity usage?
How to measure electricity usage & measure electrical current or amps – the current drawn by an electrical circuit, device, or appliance.
How to Use a Clamp Meter to Measure Amps. To measure current using a clamp-on ammeter, the following procedure is applied: Determine if AC or DC current is to be measured. Select the ammeter required to measure the circuit current (AC or DC). If both AC and DC measurements are required, select an ammeter that can measure both AC and DC.
Current is the measure of the flow of electricity through a circuit in amperes (amps) by a device known as an ammeter. You can check amperage by wiring an ammeter into the circuit (also called “in-series”), or you can detect current by clamping an induction meter around a wire.
Can a single clamp measure total current from 3?
A single clamp meter around all three phase conductors at once is also no good, because they are seperated in phase so they won’t be summed correctly. The question implied that a single clamp would be used around 3 phase plus neural, and that also won’t work because the neutral field should cancel the live fields. – Martin Feb 22 ’11 at 13:36
Can a clamp be used on a digital multimeter?
Most such clamp meters have most of the functions of a normal digital multimeter too. First, the electrical appliance’s wire you are going to measure needs removal before from power source before applying the clamp. This step is for multiple reasons, one of them is – users are not electricians.
