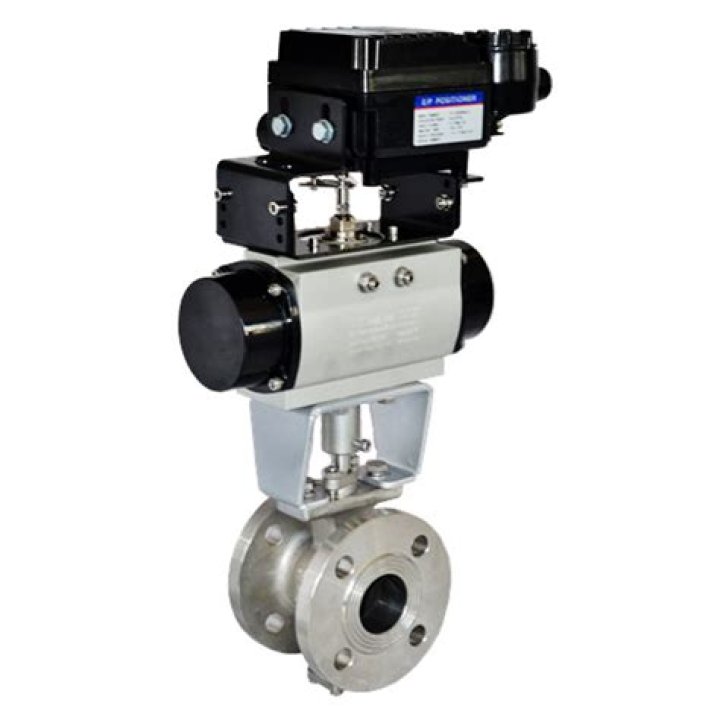

What happens when an actuator fails?

Actuators are designed and manufactured to the most exact tolerances possible, and every product must be tested and produced with the utmost care. A failure could result in a catastrophic spill, explosion, chemical release, environmental contamination, power loss, property damage, injury, or even loss of life.

Can actuators be repaired?

It doesn’t do any good to repair an actuator when the valve is what’s causing the trouble. If the valve does operate in manual mode, then you may have an actuator problem. Actuators only have four major components that can break down and require repair.

What causes actuator to fail?

Normally, failure is caused by application errors, such as side loading, incorrect wiring, poor mounting fixity, excessive loading, and exceeding duty cycle.

Can you test an actuator?

To test a linear actuator’s current draw, simply connect a multimeter in series with one of the leads of a powered linear actuator, and watch the amperage reading as you extend/retract the rod. Based on the reading, you can determine a power supply that will be able to handle that current draw.

How do you diagnose a bad actuator?

There are a few factors which determine an actuator failure:

Flashing engine management light;
A complete loss of power, causing the vehicle to go into limp home mode;
Low boost;
Over boost;
Noise from the turbocharger;
Fault codes.

How much does it cost to fix an actuator?

The average cost for a HVAC blend door actuator replacement is between $295 and $353. Labor costs are estimated between $220 and $278 while parts are priced at $75.

Can I drive with a bad actuator?

Can I drive with a blend door actuator problem? Driving with a bad blend door actuator may not be comfortable, but it won’t hurt the vehicle.

How long does it take to fix an actuator?

Expect the replacement work to take one to two hours, including testing. Usually a bad or failing power door lock actuator will produce a few symptoms that can notify the driver of an issue that should be serviced. Unusual noises coming from inside the door.

Are there any water leak detectors from Honeywell?

The Lyric™ Water Leak and Freeze Detector detects water with sensors on base of unit or has expanded coverage with included water sensing cable. The Honeywell Water Leak Alert takes water sensing to a new level of reliability.

Can a Honeywell heat and AC unit be repaired?

If the actuator doesn’t move when your heat/AC is active, or you notice water leaks from the valve then it may be the VC valve cartridge that needs replacing (or some other issue). You should NOT attempt to repair the valve yourself since it may require draining, venting, soldering, etc.

What kind of actuator to replace Honeywell vc8111-11?

The actuator I replaced was a VC8111-02, which seems to be a discontinued model. However, the VC8111-11 has the exact same specs so I bought that. On the side of the actuator, you’ll see a label for wiring. It will say either SPST or SPDT. Make sure your replacement has the same type. I found my part on build.ca for $61.40 CAD as of Feb 2019.

Can a Honeywell motorised valve be replaced without draining water?

However, be warned! With very old Honeywell motorised valves the powerhead could not be removed without draining the water first. “On older style valves pre-1985, which do not have the replaceable head feature, the adaptor plate assembly can be used to upgrade the valves, to allow the replaceable powerhead to be used.”
