What does the pressure switch on a water pump do?
What does the pressure switch on a water pump do?

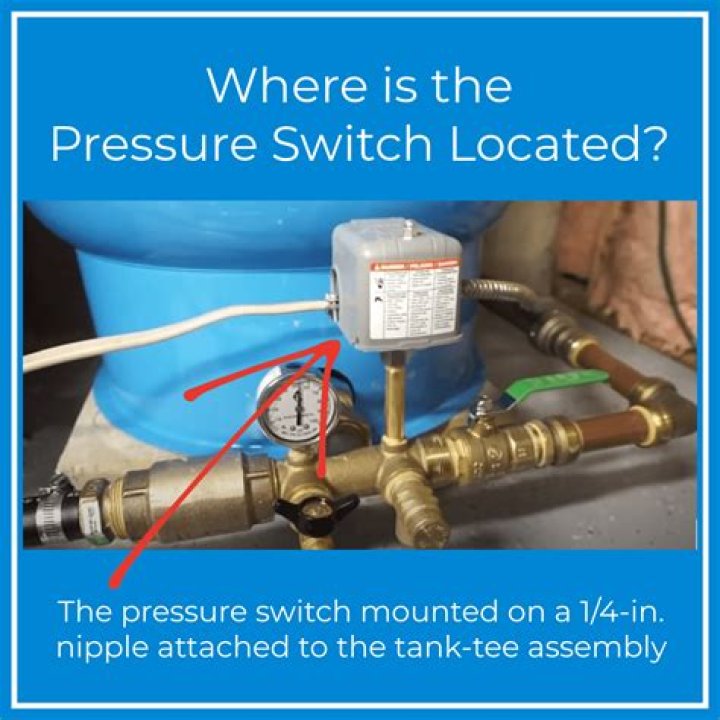

The pressure switch also controls the pump, telling the pump when to start and when to stop. The pressure switch senses the water pressure in the waterline. When the water line’s pressure falls below the lower setting on the pressure switch, the switch tells the water pump to start.
What should the pressure be on a water tank?
Add air or release air to set the pressure in the tank. Ideally, the tank’s pressure should be 2 lbs. per square inch less than the pump start pressure on your pressure switch. For example, if you have a 30/50 switch, the tank’s pressure should be set to 28 lbs. per square inch.
How does a pressure tank on a well work?
The pressure tank provides immediate access to well water without having to manually turn on the pump. The pressure tank/pressure switch combination allows the pump to operate automatically in an intermittent way, running only when needed.
How to adjust the pressure of a pressure switch?
***PRESSURE TANK MUST BE SET TO 2-3 PSI BELOW CUT-ON PRESSURE OF SWITCH.*** Adjusting the Range pdf: Adjusting the Differential pdf: Visual Adjustment Example:
Why is it important to set the pressure on a pressure tank?
The pressure tank ensures a constant flow at a constant pressure. It is important to set the tank pressure correctly to work with the pressure switch. A correct setting allows your entire water system to operate most efficiently.
The pressure switch also controls the pump, telling the pump when to start and when to stop. The pressure switch senses the water pressure in the waterline. When the water line’s pressure falls below the lower setting on the pressure switch, the switch tells the water pump to start.
What should the pressure be on a 30 / 50 switch?
Ideally, the tank’s pressure should be 2 lbs. per square inch less than the pump start pressure on your pressure switch. For example, if you have a 30/50 switch, the tank’s pressure should be set to 28 lbs. per square inch. We advise against using a compressor to add air to your pressure tank.
How do you adjust the pressure on a pressure switch?
Adjusting the differential will only adjust the cut-off pressure. Turn the differential nut counterclockwise to lower cut-off pressure or turn the nut clockwise to raise cut-off pressure. Click on the hyperlinks below to see pressure switch videos on the RC Worst YouTube channel:
