What does the pressure relief valve do on a water heater

The purpose of the temperature pressure relief valve is to release water, and in turn lower the pressure inside the tank, in the event that the temperature or pressure gets too high in your water heater.

When should you use a pressure relief valve on a water heater?

The valve should always be in good working order to ensure the water heater is safe in the event of extreme pressure buildup. It’s designed to open temporarily and discharge short spurts of water when the temperature exceeds about 210 degrees F, and it releases pressure if the tank gets above 150 psi.

What happens when a pressure relief valve goes bad?

When the valves go bad they start to vent when the pressure is not at the danger level. This can be just dripping to a full blown spray. There is not an adjustment on a pressure relief valve. You will need to replace it if it is venting and leaking water.

How do I know if my pressure relief valve is bad?

1. Low or Fluctuating Water Pressure. …
2. No Water Pressure. …
3. Hammering or Vibrating Noises. …
4. A Leak in your Flower Bed. …
5. High Water Pressure.

Why is water coming out of my water heater pressure relief valve?

Why might your water heater’s relief valve start leaking? Your water heater’s relief valve can start leaking for one of two reasons: either the valve was triggered to open because of excessive temperature or pressure, or the valve itself is faulty. … If the problem is a faulty valve, then you might have an actual leak.

Why is my hot water heater building too much pressure?

Without proper maintenance, your water heater can go from heating up your water to exploding under increased pressure. … In short, when the temperature or pressure of the water heater gets too high, the valve opens, and releases water that’s causing the increase in pressure.

Why does my hot water heater overflow keep discharging water?

Causes of Excess Pressure in a Water Heater Since water expands as it’s heated, higher-temperature water occupies more volume, which, in the confines of a water heater, results in increased pressure. If the pressure increases too much, your relief valve will activate, releasing water through the drain pipe.

How do you adjust a pressure relief valve?

Loosen the lock nut on the pressure reducing valve with a wrench and back it off by unscrewing it. Fit a socket wrench over the adjustment nut on the top of the valve. Turn the nut counterclockwise to reduce the pressure downstream from the valve and clockwise to increase it.

How do you reset the pressure relief valve on a hot water heater?

First, turn off the gas to the water heater, or flip the breaker if it’s electric. Close the cold water cut-off valve going into the water heater. Open the valve at the bottom and the pressure relief valve for a minute to drain a little water out of the tank and relieve the pressure.

Why is water dripping from my overflow pipe?

When an overflow pipe is dripping or running with water, one of the most common causes is a problem with a float valve. Float valves are found in toilet cisterns, cold water tanks and central heating feed and expansion tanks. … This movement turns the cold-water feed on so the tank refills.

Article first time published on

Why is hot water coming out of my overflow pipe?

Hot water systems It’s also called the relief valve. Water expands when heated, pressure builds up in the tank and is released through the overflow pipe. So water dripping or running from the valve can be a sign of a normal, functioning system.

What is code for water heater pressure relief valve?

Item 10 requires the relief valve to terminate no more than 6 inches (152mm) above the floor surface, a waste receptor or floor drain in order to prevent hot water discharge from being directed onto a building occupant that may be nearby.

How do I stop my water heater from overflowing?

Turn off the gas to your water heater or flip the breaker if you are having the electric type. Then, close the cold water cut-off valve that goes into the heater. 2. Open the overflow at the bottom for about 60 seconds to drain the water out of the tank and relieve the pressure.

How often should you replace pressure relief valve?

Make sure you replace your PRV every 4-5 years to avoid problems due to age.

How do you know if your water heater is going to explode?

The signs your water heater is going to explode are leaking tank water, the faulty pressure relief valve, cloudy water, popping noise, and the lack of hot water. A hot water heater explosion can lead to death, physical injury, and serious damage.

Do you open pressure relief valve when draining water heater?

Closing the pressure relief valve on a hot water heater. It’s important to remember to close the pressure relief valve on the hot water heater when you are through draining it. Otherwise, water will run out the valve and through the discharge pipe once it refills.

How does a pressure relief valve work?

How do pressure relief valves work? Relief valves are designed to protect compressed air systems from over-pressurisation by releasing excess pressure. Pressure acts against the valve seat and the force generated opens the valve against a spring tension.

How do you fill a hot water system after draining?

1. With the drainage valve closed, turn on the cold-water valve.
2. Wait for the tank to fill back up completely.
3. Turn on the cold water tap in the sink or a tub and wait for cold water to start flowing. …
4. Turn the gas or electricity back on depending on your system.

What is the normal water pressure for a house?

Normal psi for a home pipe system is between 30 and 80 psi. While you don’t want the psi to be too low, it violates code to be above 80. Instead, you should aim for a psi that’s between 60 and 70.

How do I increase water pressure in my pipes?

Look on the main supply pipe near your water meter for a conical valve that has a bolt sticking out of the cone. To raise pressure, turn the bolt clockwise after loosening its locknut. Keep an eye on the gauge to make sure the pressure is within bounds, then retighten the locknut.

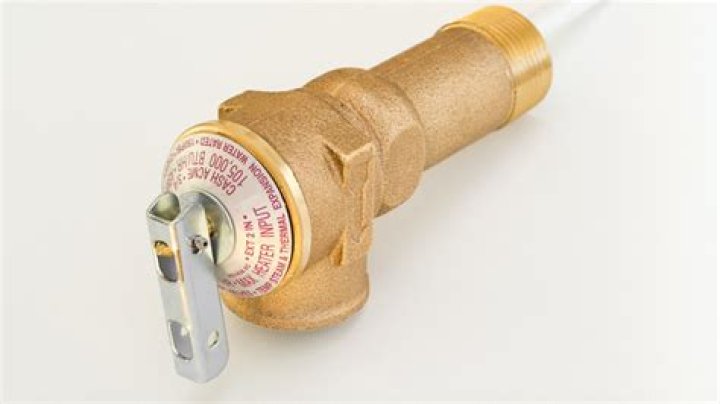

Where is water heater relief valve?

Also known as the temperature/pressure relief valve, or the TPR valve, this valve is located near the top of the water heater. It usually features a lever you can lift up or down and has a discharge pipe that runs from the valve down to the water heater’s base.

Does a hot water heater have an overflow pipe?

When functioning properly, your water heater’s overflow pipe works in conjunction with the relief valve to drain excess pressure. The pipe is directly connected to the valve and points downward at the floor.

Why is my hot water heater constantly running?

Reasons Why Your Water Heater is Constantly Running Your water heater might have insufficient insulation – If the water heater is not properly insulated, it will be unable to maintain the water temperature. … Your water heater might have sediment build-up – Over time sediment builds up in the bottom of your water heater.
