What does the center link connect to

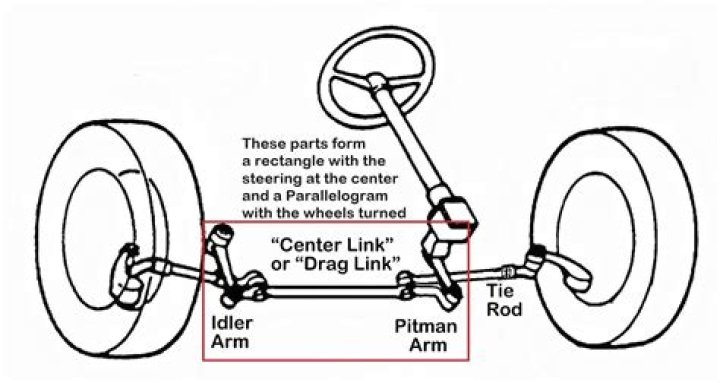

The center link has ball joints on either end, and connects the pitman arm and idler arm on your car’s suspension. This part is sometimes called the relay rod or the drag link. The main purpose of the center link is to move your front wheels at the same time so your vehicle can turn smoothly.

What is the center link attached to?

The drag link, sometimes also called the center link, connects the pitman arm to the steering arm. In some vehicles, it connects to the tie rod assembly. The drag link is the element that keeps both of your two front steering wheels in line.

What does the steering center link do?

A center (drag) link is a suspension component that is found on many road going vehicles equipped with steering gear box suspension systems. It is the component that links the steering gear box to the pitman arm so that the vehicle can be steered and maneuvered when the steering wheel is turned.

What connects Center link to steering arms?

“The drag link connects the pitman arm to the steering arm, or in some applications it connects to the tie rod assembly.

How is the center link operated?

The center link bar transfers the movement from the pitman arm and pitman shaft to the idler arm on the passenger side. The inner tie rods are mounted to the center link and transfer steering motion to the steering arms and outer tie rods. … The most common type of steering is the parallelogram.

What is the purpose of a rack and pinion and steering box?

The rack and pinion gear set has two main functions: Conversion of the steering wheel’s rotational motion into the linear motion needed for the vehicle’s wheels to turn. Reduction of gears, which makes it easier for the steering wheel to turn the wheels.

How do I know if my center link is bad?

Common signs include poor handling, car wandering or pulling to the left or right, vibrations in the steering wheel, and uneven tire wear.

What causes bump steer?

Bump Steer: Bump steer occurs when a vehicle is traveling down the road in a straight line, hits a bump, and now pulls to one side. It happens because one of the front tie rods is now higher than the other. This is usually caused by a worn or loose idler or pitman arm in a parallelogram steering system.

What does a pitman arm connect to?

Pitman Arms connect the steering linkage to steering column and supports the other end of linkage from the idler arm. Pitman arms also convert the turning movements from the steering gear box to the center link. They are responsible for the back and forth movement that actually steers your tires.

What does the idler arm connect to?

Function. The idler arm connects the steering box to the center link. The center link is what turns the hubs and allows a vehicle’s tires to rotate. The idler arm controls the passenger side steering in a vehicle.

Article first time published on

What are the symptoms of a bad ball joint?

Clunking Noises From the Front Suspension.
Excessive Vibration From the Front of the Vehicle.
Uneven Wear on Front Tires.
Steering Wheel Wandering to the Left or Right.

What are the symptoms of a bad tie rod?

Inability To Steer.
A Squealing Sound When You Turn. …
Uneven, Excessive Tire Wear. …
Misaligned Front End. …
A Steering Wheel that Feels Unusual. …

What does a jeep drag link do?

What is a drag link on a Jeep? This piece is responsible for transforming the rotating motion of the steering box or crank to a second crank or link. This directly affects your ability to turn your tires at any given moment while you’re on the move.

What cars use parallelograms?

The typical steering system used on passenger cars and light trucks is called a parallelogram system because all the pivot points are paralleled. This allows each wheel to be flexible and to travel independently.

What is Haltenberger linkage?

The Haltenberg linkage consists of a pitman arm, drag link, tie-rods, outer tie-rod ends, steering knuckles or arms, and possibly a steering stabilizer. Advantages of this linkage include very high strength, lower cost than parallel linkage, and can be designed to fit around other vehicle components.

Can a bad drag link cause death wobble?

Steering Components That Contribute To Death Wobble Turning the tires when the vehicle is not moving creates an even greater strain on the tie rod ends, drag link ends, steering box, and steering shaft.

Can a bad idler arm cause vibration?

Generally, worn steering parts such as idler arms, pitman arms and center links result in shimmy. … Wheels that aren’t properly balanced can cause shimmy or shake. Imbalance usually causes the symptoms at a certain speed, above or below which there is no problem.

What does the rack and pinion connected to?

A rod, called a tie rod, connects to each end of the rack. The pinion gear is attached to the steering shaft. … The rack-and-pinion gearset does two things: It converts the rotational motion of the steering wheel into the linear motion needed to turn the wheels.

What connects to the rack and pinion?

A rod called a tie rod connects to each end of the rack. The pinion gear is attached to the steering shaft. When you turn the steering wheel, the pinion gear spins, moving the rack. The tie rod at each end of the rack connects to the steering arm on the spindle.

Is the rack and pinion connected to the power steering?

When a rack and pinion system is connected to a power steering system, the design changes slightly. A cylinder with a piston in the middle is placed in the rack. … When pressure is placed on the fluid on one side of the piston, it forces the piston to move, which turns the rack and assists with steering.

What connects the pitman arm to the drag link?

The idler arm is attached between the opposite side of the center link from the Pitman arm and the vehicle’s frame to hold the center or drag link at the proper height. A worn ball joint can cause play in the steering, and may get worse over time.

What's the difference between a pitman arm and idler arm?

The arm that connects the steering box to the steering link is called the Pitman arm. On the passenger’s side, the other end of the steering link is attached to the frame via a similar looking arm, but this arm is bolted to the frame via a shock absobring bracket. This assembly is called the idler arm and bracket.

What connects to the pitman arm to the idler arm?

Attached between the ends of the pitman arm and the idler arm is the track rod. The track rod is used to transfer the steering motion to both sides of the vehicle. To transfer the motion to the steering knuckle we have two components.

Why does my car slide when I hit a bump?

THE SHIMMY: What’s causing the shimmy after hitting a bump? Generally, several vehicle conditions can cause vibrations, from worn suspension parts to brakes and transmissions to tires. … If you feel a fast, vibrating shimmy, hitting the bump may have knocked your vehicle’s weight off, and now a tire is out of balance.

What is death wobble?

Death wobble is used to describe a series of sudden, often violent front suspension vibrations exhibited by solid front axle suspensions, and more infrequently, independent front suspensions. … Even just one death wobble incident can cause permanent—and dangerous—suspension or steering damage.

Can bad shocks cause bump steer?

When one of the shocks is worn out, that side of the car will bounce more with each bump, pulling and pushing the vehicle to one side or the other as you drive. …

What connects the tie rod to the tie rod end?

Ball joints and tie rod ends are not connected to each other but are both connected to a mechanism called a spindle. This spindle is connected to your front wheel.

How do you know when ball joints need to be replaced?

For example, a ball joint is usually replaced if it has excessive play or if it’s loose. It’s also replaced if the dust boot is broken or torn. This worn-out ball joint has separated. When a dust boot is damaged, grease can come out and water and dirt can get inside the ball joint.

Can a bad pitman arm cause death wobble?

While death wobble will cause the steering stabilizer to fail, it is not the result of a worn out stabilizer. … Worn tie rods, idler arm, track bar, wheel bearings, pitman arm, steering center link and shaft, ball joints, alignment and even tire pressure can combine to cause the death wobble.

Is it safe to drive with a bad pitman arm?

Inability to steer When the pitman arm completely fails, you will lose all steering in your vehicle. … This is a dangerous situation, so if you notice any of the symptoms above, they should be looked at before the pitman arm completely fails. If you do lose the ability to steer, do not keep driving.

What will a bad pitman arm do?

A bad or failing idler arm or pitman arm can cause your vehicle to not respond appropriately when you turn the steering wheel. As a result, your vehicle may pull to one side of the road or the steering seems difficult to control.
