What does an expansion tank do on a water heater?
What does an expansion tank do on a water heater?
The expansion tank is designed to handle the thermal expansion of water as it heats up in the water heater, preventing excessive water pressure. If water pressure gets to high it can damage valves in plumbing fixtures, joints in supply pipes and the water heater itself.
What happens when a water heater expansion tank fails?
If the expansion tank is missing or not operating properly, pressure in the system may cause the boiler’s pressure relief valve to vent water. Or, air bubbles being released by the heating water may gather somewhere else in the system, causing a blockage that stops the flow of hot water.
How much does it cost to replace a water heater expansion tank?
$145 – $350, Installed The cost to install a water heater expansion tank ranges from $55 and up for the rare DIY project, to about $350 when a pro adds an expansion tank to a large residential water heater.
What makes expansion tanks go bad?
Oftenthe diaphragm dividing the two systems will fail, causing the two systems to become one. When this happens, the expansion tank turns into a “dead leg” that will eventually cause damage and premature failure to your water heater.
When should I replace my water heater expansion tank?
If you don’t have an expansion tank in your system, you really should get one. Expansion tanks will normally wear out after anywhere from 5-10 years. To extend their service life as much as possible, it’s vitally important to match your expansion tank’s air pressure to your house’s water pressure.

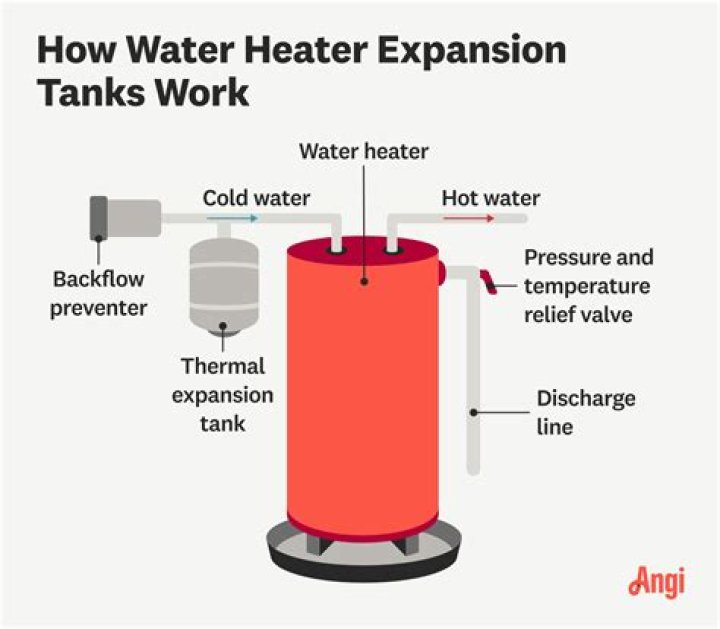

How does an expansion tank on a water heater work?
You install the expansion tank down the line from the inlet valve that sends hot water into your home. The tank has two sections that are separated by a rubber valve.
How can I tell if my expansion tank needs to be replaced?
If the pre-charge pressure is less than your home’s water pressure, a higher level of water will make its way into the expansion tank, which can damage the diaphragm over time. You can check your water’s pressure by using a water pressure gauge and attaching it to the drain valve of your water heater.
Do you need thermal expansion protection on a water heater?
Thermal expansion protection is required on new water heater tanks. Thermal expansion protection can be done 3 different ways: installing a thermal expansion tank properly sized for the tank. using a thermal expansion relief valve. using a governor 80 ballcock.
Why does a 50 gallon water heater expand?
Since water expands when it is heated due to thermal expansion, the water heater creates extra water volume every time it heats water. It’s estimated, for example, that the cold water in a standard 50-gallon water heater expands to 52 gallons when heated to 120 degrees Fahrenheit.
You install the expansion tank down the line from the inlet valve that sends hot water into your home. The tank has two sections that are separated by a rubber valve.
Thermal expansion protection is required on new water heater tanks. Thermal expansion protection can be done 3 different ways: installing a thermal expansion tank properly sized for the tank. using a thermal expansion relief valve. using a governor 80 ballcock.
How often does a hot water expansion tank wear out?
If you don’t have an expansion tank in your system, you really should get one. Expansion tanks will normally wear out after anywhere from 5-10 years. To extend their service life as much as possible, it’s vitally important to match your expansion tank’s air pressure to your house’s water pressure.
What should the pressure be on an expansion tank?
It could also rupture the rubber diaphragm since it’s not designed to be inflated beyond 80 psi. Most expansion tanks are set to a pre-charge of 20 psi when they leave the factory, while the majority of residential water systems have significantly higher water pressure than that.
