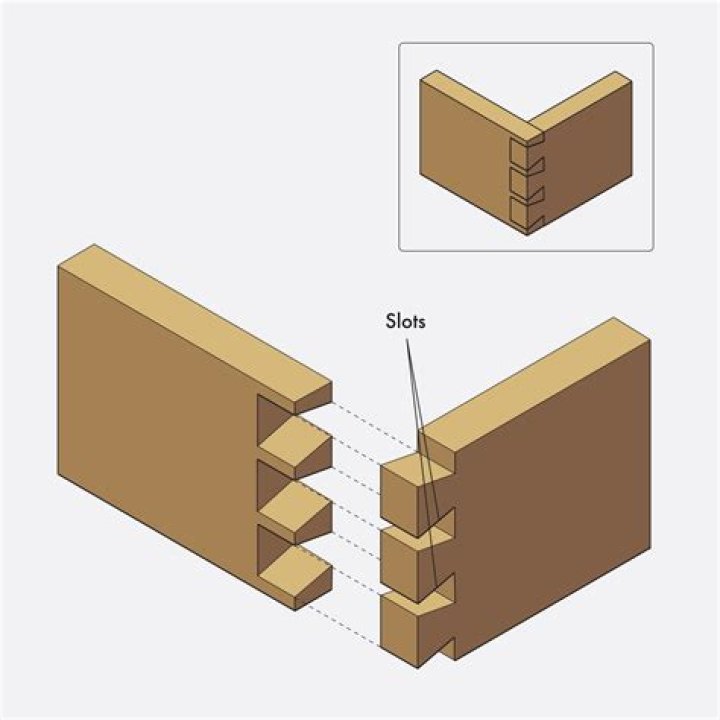

What does a dovetail joint look like

There are two parts to a dovetail joint, pins and tails. The tails look like the tail of a dove (hence the name), and the pins are on the opposite board and fit in between the tails to create a joint that is impossible to pull apart in at least one direction.

How do you identify a dovetail joint?

Examining these joints helps determine the age of old furniture. It’s called a “dovetail” joint because the flat-bottomed triangular shape of the wood insert looks like a dove’s tail. Whether that tail is fat, skinny, symmetrical or used sparingly reveals a clue to the origins of the piece.

What is a dovetail joint commonly used for?

A dovetail joint is a joinery technique used in woodworking, traditionally used to joint wooden furniture. Dovetail joints are known for their inherent strength and resistance to being pulled apart (tensile strength).

What does dovetail look like?

Dovetail refers to a type of joint in which two pieces of wood interlock. … Dovetail drawers are recognized by their distinct pattern at the outside corner of a drawer. They look like jigsaw puzzle pieces joined together at a 90 degree angle.

What is a dovetail joint?

Dovetail joints are most commonly used woodworking. … Rather, dovetail joints use pins and tails to interlock together, where one side has a pin that locks into the other side’s tail, and then glued together for a solid dovetail construction. The benefits of dovetail drawers are endless.

What furniture uses dovetail joints?

This type of joint is used in box constructions such as drawers, jewellery boxes, cabinets and other pieces of furniture where strength is required.

When did they stop making dovetail furniture?

Wider, uniform machine-cut dovetails were common in factory-made pieces from 1890 until the modern era. If a piece has no dovetails, it can still be a candidate for refinishing if it’s sturdy and well-designed, but it’s not likely to be an old piece with antique value.

Should dovetail joints be glued?

Dovetail joints show the care and craftsmanship applied to woodworking projects. A few simple gluing and assembly tips make dovetail joint easier to put together. … The glue can be applied while the pieces are completely separate, which is easier, but can be messy and difficult to fit joints together.

Why it is called dovetail joint?

Dovetail joints are made up of two parts called pins and tails. When a master craftsman wants to marry two boards together, they cut a series of pins on one board and matching tails on the other. They are trapezoidal in shape, resembling the tail feathers of a dove (hence the name dovetail).

What is the angle of a dovetail joint?

Any angle between 7° and 15° will work, regardless of the wood. But stay within that range. If you go below 7°, you’ll start to lose the mechanical strength of the dovetail. Go above 15°, and you’ll leave too much short grain at the tips of the tails, which weakens the joinery.

Article first time published on

What is dovetail research?

Dovetail is a tool for capturing customer feedback and user research in one place. It acts as user research repository for centralising interview notes and storing video and images, with tagging and annotations to help with analysis.

Is a dovetail joint a carcass joint?

A through dovetail is also known plain dovetail joint which common in carcass and box construction. In the joint, the end grain of both boards is visible when the joint is assembled. The joint is often referred to “English dovetail”.

What is a pin and tail on a dovetail joint?

Dovetail joints are a sign of a true craftsman. … There are two parts to a dovetail joint, pins and tails. The tails look like the tail of a dove (hence the name), and the pins are on the opposite board and fit in between the tails to create a joint that is impossible to pull apart in at least one direction.

How many dovetail joints are there?

Of the four types of dovetail joints (through dovetail, half blind dovetail, secret mitered dovetail, and the sliding dovetail), the through dovetail is the most basic method, and a perfect one for hand cutting. Contrary to what seems to be popular belief on the internet, they are not really all that hard.

What does a miter joint look like?

In essence, a miter joint is like a bisected butt joint. If you look at a picture frame that uses one, you can spot the miter joint at each corner of the picture frame. The joint meets at a sharp point. This picture frame is composed of miter joints at each corner.

What is the strongest wood joint?

Mortise and Tenon Woodworking Joints One of the strongest woodworking joints is the mortise and tenon joint. This joint is simple and strong. Woodworkers have used it for many years.

How do I identify my furniture maker?

A telltale sign of the furniture’s maker is a manufacturing tag, label or stamp bearing the name of the creator. Such a marking or label may have been placed inside a drawer on an old dresser, on the back of a chest of drawers, or on the underside of a chair or sofa seat.

How can you tell how old a piece of furniture is?

1. Look Past the Style of a Piece.
2. Examine Bottoms, Insides, and Backs.
3. Check for Perfectly Matching Elements.
4. Try to Figure Out What Tools Were Used.
5. Look at the Wood and Upholstery Fabric.
6. Investigate the Screws and Other Hardware.

What is French dovetail?

French dovetails have sliding joints and are shorter in height. A piece of furniture with a curved front will always have French dovetails, because English dovetails will not work with that shape. … If you see one dovetail on each side, they’re French dovetails.

What is English dovetail joinery?

Dovetail drawers use locking joints. … Also referred to as an English dovetail, these dovetails are offset on adjoining sides of the drawer box so that they that interlock with one another when put together to create a box. The interlocking edge pieces are also referred to as tails and pins.

Which are pins and which are tails?

The pin is the part that fits into the socket, which is formed by two tails. Pins and tails are often confused, but there’s an easy way to remember which is which. If you look at the face of the workpiece and see birdtail-shaped protrusions, those are tails; if you see rectangles, you’re looking at pins.

Which is stronger box joint or dovetail?

For this test, the box joint proved stronger. Plus, the box joint is strong in both directions, whereas the dovetails are useful only for pulling from one piece, but not the other. So really, to use a dovetail joint for the sake of strength is obsolete, mostly on account of the strength of wood glues.

What is the best dovetail angle?

Answer from the experts: Clearly, there’s no shortage of advice about the “best” dovetail angle: Some woodworkers recommend using 12° for “coarse work” and 7° to 10° for decorative joints.

Do I need a dovetail jig?

When looking to increase the craftsmanship of your woodworking projects, a dovetail jig could be the answer. These jigs allow you to create strong and accurate dovetail joints for boxes, drawers, and furniture without fasteners. In fact, you could consider a dovetail jig an essential tool for any woodworking shop.

What is the easiest dovetail jig to use?

Leigh Super 12 in Dovetail Jig. The Leigh Super 12 is a great dovetail jig. It is easy to use and can make most types of dovetail joints. It accepts widths of up to 12 inches and has three router bit options to allow you to make different kinds of cuts.

How much does a dovetail cost?

Dovetail Pricing Overview Dovetail pricing starts at $15.00 per feature, per month. They do not have a free version. Dovetail offers a free trial. See additional pricing details below.

Do you cut pins or tails first?

When you cut tails-first, that means your second cut is pins. And pins are straight up and down. And straight up and down is easier to do perfectly.

What is a housing Dado?

A dado (US and Canada), housing (UK) or trench (Europe) is a slot or trench cut into the surface of a piece of machinable material, usually wood. When viewed in cross-section, a dado has three sides.
