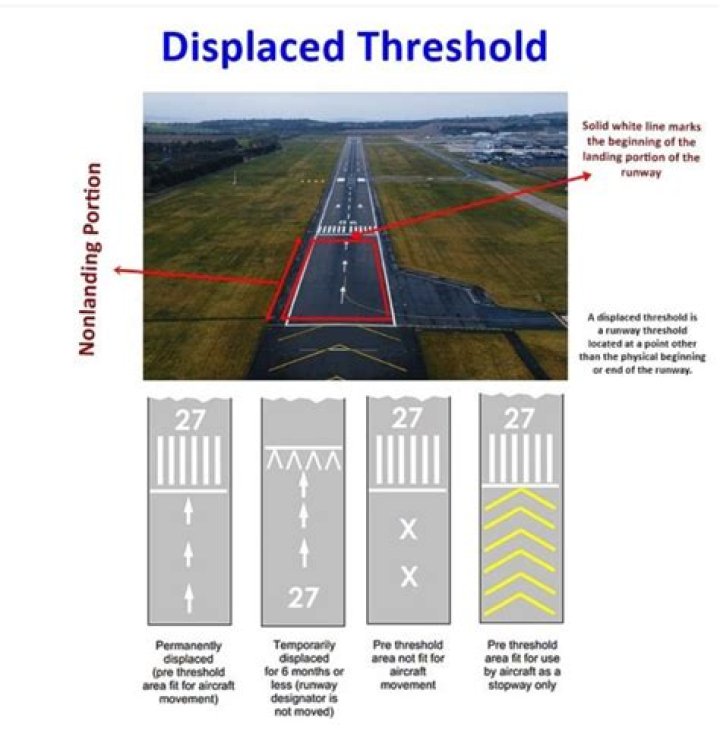

What does a displaced threshold mean
If you’re landing on a runway with a displaced threshold, you can’t land before the marked threshold. … But, you can taxi onto the runway using the pavement before the displaced threshold and you can also use it to start the takeoff roll.
Can I land before a displaced threshold?
If you’re landing on a runway with a displaced threshold, you can’t land before the marked threshold. … But, you can taxi onto the runway using the pavement before the displaced threshold and you can also use it to start the takeoff roll.
Why are runway thresholds sometimes displaced?
A landing aircraft may touch down before the Touchdown Zone (TDZ). This is often caused by either poor pre-flight preparation or by inadequate ground marking. In any case, the reason for displacing the threshold (whether temporarily or permanently) is that landing before the TDZ was considered unsafe.
What is the use of a displaced threshold?
A displaced threshold is usually used to increase the clearance between arriving aircraft and obstacles. By displacing the threshold further down the runway, it increase the height at which the aircraft will cross the airport boundary.Why can't you land on displaced threshold?
If it’s displaced, the usual reason is an obstruction. Sometimes, the “pavement” prior to the threshold is an arresting system, and you’ll be really unhappy if you end up on it for any reason. It’s marked differently from a displaced threshold, however. Chevrons, rather than arrows.
How wide is my runway?
Have you ever wondered what the threshold markings mean on each runway? The number of markings represents the runway’s width. The threshold markings are 150 feet long and 5.75 feet wide.
Can a displaced threshold be used for takeoff?
Displaced Threshold. A displaced threshold is a threshold located at a point on the runway other than the designated beginning of the runway. … The portion of runway behind a displaced threshold is available for takeoffs in either direction and landings from the opposite direction.
What do the white lines on a runway mean?
The Runway Aiming Point is the broad white stripe located on each side of the runway centerline that marking provides a visual aiming point for landing aircraft.Why are airport lights green and white?
Airport beacons help a pilot identify an airport at night. The beacons are normally operated from dusk until dawn. Sometimes they are turned on if the ceiling is less than 1,000 feet and/or the ground visibility is less than 3 statute miles (VFR minimums). … Flashing white and green for civilian land airports.
Why are runways black?Every time an airplane lands, it deposits about a pound to a pound and a half of rubber on the runway. When the rubber accumulates it doesn’t just make black marks on the surface, it begins to reduce the friction needed for safe aircraft landings.
Article first time published onHow long are the thousand foot markers?
Aiming point markings Sometimes called “thousand-footers,” they are located about 1,000 feet from the threshold and provide a visual target for landing operations.
What color are runway threshold lights?
The lights marking the ends of the runway emit red light toward the runway to indicate the end of runway to a departing aircraft and emit green outward from the runway end to indicate the threshold to landing aircraft.
Can you land on a blast pad?
Other Facts About Blast Pads Aircraft are NOT allowed to taxi, takeoff, land or otherwise use blast pads for normal operations. With that said, they CAN be used in an emergency. Blast pads can be as short as 50 ft., and more than 200 ft.
Where is the touchdown zone on a runway?
The TDZ is marked by pairs of stripes symmetrically placed on the two sides of the runway centreline. The number of pairs depends on the runway length (e.g. one pair for runways that are shorter than 900 m, 6 if the length is 2 400 m or more, etc.).
What is landing distance available?
Landing Distance Available (LDA). The length of the runway which is declared available by the appropriate Authority and is suitable for the ground run of an aeroplane landing.
Can you take off before the threshold?
You can, but it’s not wise. Thresholds are used for takeoffs only, not landings. Most often, the threshold is in place to give arriving aircraft clearance over an obstruction while still allowing departing aircraft the maximum amount of runway available.
What's the longest runway in the world?
The longest commercial service runway in the world is 18,045 feet long—that’s 3.4 miles or 5.5 kilometers—at the Qamdo Bamda Airport (BPX) in the mountains of Tibet.
What does L and R mean on runways?
The ”L” and ”R” designate the relative position (left or right) of each runway respectively when approaching/facing its direction. A small number of airports have three parallel runways—the runway in the middle gets a “C” for center.
How far apart do runways have to be?
To conduct parallel approaches in the United States, the Federal Aviation Administration dictates that airports must have at least 3,000 feet (910 m) between runways. The FAA can grant special permission to conduct parallel approaches with less separation if deemed necessary.
What do the blue lights on a runway mean?
The blue taxi lights are easy to spot from the terminal and are often the first airport lights seen by passengers. Blue taxiway lights are typically illuminated after dark and during bad weather. For many airports, the blue lights are all that is necessary to mark the taxiways.
What is helicopter beacon?
An aerodrome beacon or rotating beacon or aeronautical beacon is a beacon installed at an airport or aerodrome to indicate its location to aircraft pilots at night.
How far apart are runway edge lights?
Runway Edge Light Spacing and Color Both High Intensity Runway Lights (HIRLs) and Medium Intensity Runway Lights (MIRLs) require a maximum spacing of 200 feet between each runway edge light. For runways with intersecting taxiways or other runways, the maximum gap cannot exceed 400 feet.
What do the piano keys on a runway mean?
*Sealed runways generally have a center line, a number at each end and the threshold markers, sometimes nicknamed piano keys. … The threshold markers indicate the safe beginning for landing on the runway.
How long is a runway for a small plane?
SMALL AIRPLANES WITH APPROACH SPEEDS OF LESS THAN 30 KNOTS. Their recommended runway length is 300 feet (92 meters) at mean sea level. Runways located above mean sea level should be increased at the rate of 0.03 x airport elevation above mean sea level to obtain the recommended runway length at that elevation.
What is a runway Stopway?
The term stopway is defined in 14 CFR part 1 as follows: Stopway means an area beyond the takeoff runway, no less wide than the runway and centered upon the extended centerline of the runway, able to support the airplane during an aborted takeoff, without causing structural damage to the airplane, and designated by the …
Where are you supposed to land on the runway?
In just about every case on a runway long enough for a jet, the runway aim point will be around 1,000 feet down the runway and the touchdown zone markers occur every 500 feet. Look Down Angle.
What gets you to 100 above the touchdown zone?
What Gets You To 100′ Above The Touchdown Zone? If you can see the white approach light system and nothing else, you can descend down to 100′ above touchdown zone elevation, regardless of the type of approach you’re flying (even if it’s a non-precision approach).
What kind of lights identify the runway threshold?
Runway End Identification Light Frequently named as Runway Threshold Identification Light (or RTIL), this is a white flashing light, unidirectional, that identifies beginning of a runway. Unlike approach lights, there only two RTIL lights installed per one side of a runway.
Can two pilots log PIC time?
Sport pilots can act as PIC with a valid and current driver’s license in lieu of the FAA medical (FAR 61.23). … The FARs provide several situations (see scenarios listed below) where two or more pilots may log PIC time, even though there can only be one pilot acting as PIC.
Can you land on a runway without lights?
This is referred to as Edge Lighting, Threshold Lighting and Runway End Lighting. … ICAO guidance requires that runway lighting shall not be operated if a runway is not in use for landing, take-off or taxiing purposes, unless such operation is required for runway inspection or maintenance purposes.
Why are runways not flat?
Runways aren’t flat because it allows rainwater to run off the sides and keep the surface as free of standing water as possible. … Additionally, many runways are also built on land with a slight gradient, so they can, therefore, have an uphill and downhill direction, or a high point or low point in the middle.
