What category is a Ford 8n tractor

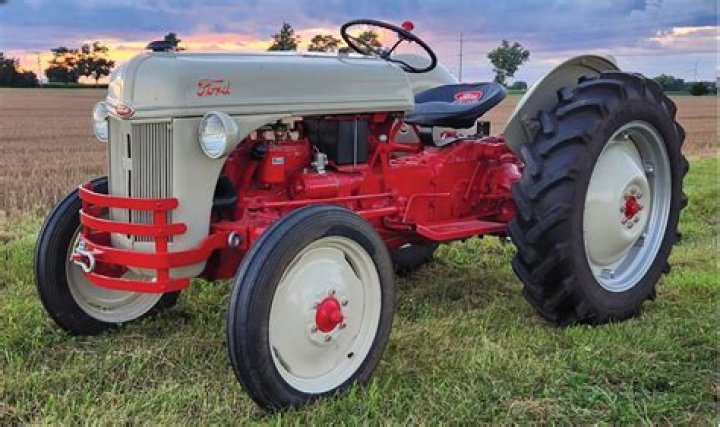

The Ford 8N tractor has a Category 1 three point hitch and a claimed pto rated 27.32 hp. The Ford 8N is shown on the left with a rear scrap blade attachment.

What category is a 9N Ford tractor?

The Ford 9N tractor has a Category 1 three point hitch and a claimed pto rated 23.07 hp. The Ford 9N is shown on the left.

What is a Ford 8N tractor?

The 8N, which debuted in July 1947, was a largely new machine featuring more power and an improved transmission. By some measures the 8N became the most popular farm tractor of all time in North America.

How many HP is a Ford 8N tractor?

Ford 8N PowerDrawbar (claimed):23.16 hp17.3 kWPTO (claimed):27.32 hp 20.4 kWDrawbar (tested):21.95 hp 16.4 kWPTO (tested):23.24 hp 17.3 kW

What's the difference between a Ford 8N and a Ford 9 in?

You can also tell between an 8n and 9n Ford tractors by the positioning of the brake pedal. The 9n has the two brake pedals on opposite sides, so you have a brake pedal close to your right foot and another close to your left foot. On the other hand, the 8n has both brake pedals on the right side.

How much weight can a Ford 8N pull?

The Ford 8N utilizes manual drum brakes and has a 10 gallon fuel tank. The tractor features a type 1 rear three-point hitch with a maximum lift of 800 lbs. The internally mounted hydraulic system features four pistons and a maximum pressure of 1,500 psi.

Is a Ford 8N a Category 1 tractor?

The Ford 8N tractor has a Category 1 three point hitch and a claimed pto rated 27.32 hp. The Ford 8N is shown on the left with a rear scrap blade attachment.

How fast will a Ford 8N go?

A 1952 Ford 8N tractor dubbed the “8NCREDIBLE” is reported to have taken the title of world’s fastest farm tractor, reaching a speed of just over 96 miles per miles per hour and breaking a record that has stood for 81 years. Cathy Isom tells us about the new world record for the fastest farm tractor.

What is a Ford 8N good for?

I use one frequently for blading the driveway, brush hogging, and pulling a wagon to and from the woodpile. It’s also great for hobby farmers or someone who wants to plant a small feed plot to attract wildlife. The Ford 8N is the standard of reliability, built to last for generations.

Does 8N have live PTO?

One disadvantage of the Ford N’s was, they are not Live pto and Live hydraulic. When you push the clutch in, they stop. The mower stops mowing and if it was raised, it lowers to the ground.

Article first time published on

How do I tell what year my Ford 8N tractor is?

To determine the year of a Ford 8N tractor, the serial number must be located and then compared to a list of serial numbers used by Ford for each of the years in which the tractor was manufactured. Locate the serial number imprinted on the Ford 8N tractor.

Are 8N and 9N parts interchangeable?

Other major differences are the shape of the dash & steering box, a 3-speed (9N-2N) versus 4 speed (8N) transmission, factory running boards (8N) and draft control lever on 8N. AND, just to make it interesting, many parts are interchangeable. … 9Ns and 2Ns originally did not have running boards – just foot pegs.

How do you use a 3 point hitch on a Ford 8N tractor?

Press the hydraulic pump lever back to raise the three point hitch. Put the lever in “Neutral” to maintain the hitch’s position. Press forward on the lever to release pressure from the hitch’s hydraulic lines and lower the hitch. Check to see if the PTO is spinning and that the three point hitch is in the proper place.

Will an 8N run a square baler?

It can be done! I’ve baled with a Farmall C (22hp) before with both a 14t and a NH 268. It’s not ideal and won’t pull a wagon behind the baler but it’ll work if it’s all you have.

How many gears does a Ford 8N have?

TransmissionTransmission:Sherman Combination TransmissionGears:12 forward and 3 reverse

What is a live PTO?

Live (two-stage clutch) A live PTO works with the use of a two-stage clutch. Pressing the clutch half-way will disengage the transmission while pressing it fully will disengage the transmission and the PTO. This allows the operator to slow down or change gears while the PTO is still operating.

What is a Ford Golden Jubilee worth?

The preauction estimate is $5,000-$7,000 which is not unreasonable. While Golden Jubilee NAA’s aren’t difficult to find they are popular with collectors and in like-new condition can command premium prices.

What is the fastest farm tractor in the world?

JCB has created the world’s fastest tractor: the Fastrac Two, which achieved 135.19 mph.

How many horsepower is a Ford 800?

Power, Mechanical and Electrical Each model has three, 14-inch plows and a claimed belt power of 40 horsepower.

How much horsepower does a Ford 2N have?

Ford 2N PowerDrawbar (claimed):12 hp 8.9 kWPTO (claimed):23 hp 17.2 kW

How many quarts of oil does a 8N Ford tractor hold?

Engine OilOil capacity:6 qts 5.7 L

How much is a tractor worth?

New Tractor Average Costs A bare-bones compact tractor might sell for less than $10,000, while the largest and most powerful farming models could go for as much as several hundred thousand dollars. Most tractors fall somewhere in between. Mid-size tractors with 30 to 75 hp usually cost anywhere from $25,000 to $50,000.

When did Ford stop making tractors?

Henry Ford and Harry Ferguson.In 1928, Fordson tractor production was halted in the United States, only to be resurrected in 1939 as the Ford Model 9N.

What year is a Ford 2N tractor?

Farm Tractors – Ford Model ‘2N’ This two-tone gray and red-painted, semi-streamlined tractor was built in 1946. It is an “offspring” of the Ford 9N which was produced from 1939 – 1941.

How much does a Golden Jubilee weigh?

Dimensions & TiresWheelbase:73.875 inches 187 cmWeight:2550 to 2814 poundsFront tire:5.50-16Rear tire:10-28

How do you use a Ford 8N tractor?

Press the clutch using your left foot. …
Pull out the chock halfway. …
Make sure the PTO is not activated by checking the lever. …
Place your 8N into gear and slowly release the clutch. …
Press the clutch and any of the break to stop.

How much HP do you need to run a square baler?

Most standard square balers on the market require 35 horsepower at your tractor’s PTO, and a minimum tractor weight of around 3000 pounds. That means that they cannot be run with today’s compact tractors.
