What are the symbols on an electric oven?
What are the symbols on an electric oven?

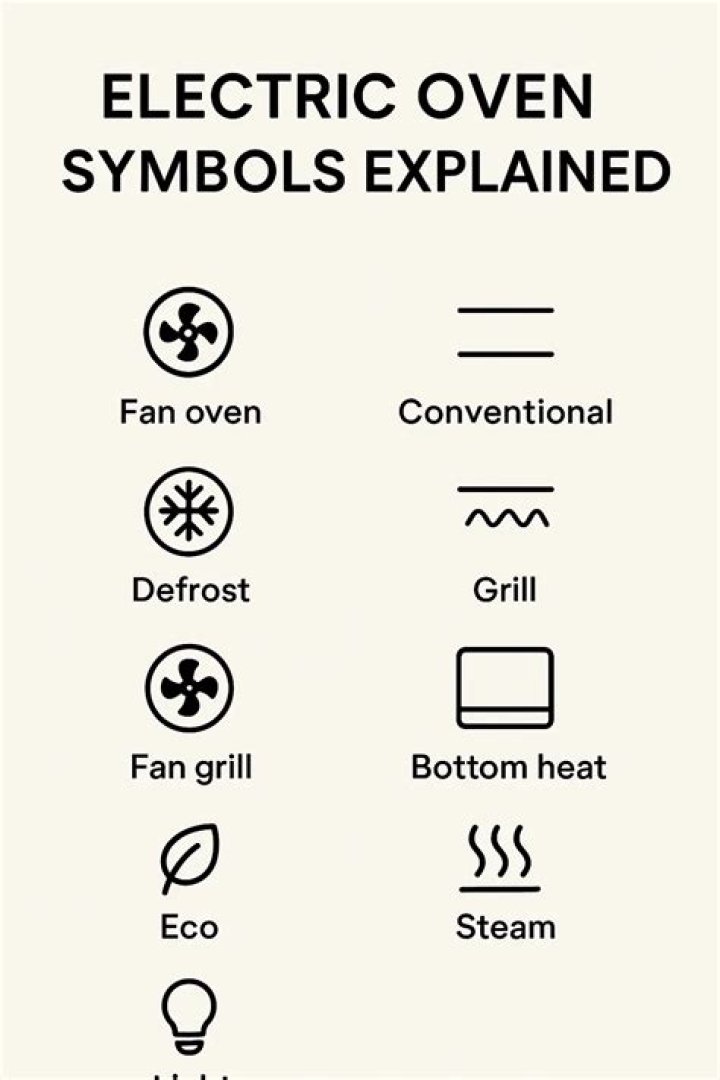

Oven Symbols Guide
- Fan oven symbol. The standard setting for many electric fan-assisted ovens shows a fan, often inside a circle.
- CircoTherm® symbol.
- Circo-roasting/grill with fan symbol.
- Bottom heat symbol.
- Top and bottom heat symbol.
- Pizza symbol (fan with bottom heat)
- Bread baking symbol.
- Slow cooking symbol.
What do oven fan symbols mean?
A fan in a circle represents an oven that uses a fan to distribute heat generated from a circular element that surrounds the fan. If you have a combination oven and you want to use the fan, then the symbol won’t have a circle around the fan.
What is the preheat symbol on an oven?
Samsung Oven Symbols
| Symbol | Description |
|---|---|
| Quick Preheat | A box with three wiggly lines inside, plus two small triangles in the bottom corner |
| Convection | A box featuring a fan symbol with three-quarters of a circle over it |
| Conventional | A box featuring two horizontal lines, one at the top and one at the bottom |
How do I know if my oven is reaching temperature?
To test the oven: Hang an oven thermometer in the center of the middle rack and preheat the oven to 350˚F (176.67˚C). Allow the oven to preheat for at least 20 minutes and take a temperature reading. This will tell you if the oven is even reaching the desired temperature from the beginning.
What is the symbol for a self cleaning oven?
Self cleaning A series of black circles or diamonds of decreasing size from top to bottom of the square is commonly used to indicate self-cleaning. Alternatively, you may have a setting that shows a P which stands for pyrolytic (meaning heat) cleaning.
What is bake mode in oven?
Both modes (simple convection or micro + convection) serve the same purpose. The difference is that micro+convection mode runs on micro mode for some time and convection mode for the rest of the time. This is done to bake the food item on varying levels of heat at different point of time.
What does R mean on a oven?
fan ovens heat up quickly; but the Rapid Response. feature speeds this process up enabling you to. commence cooking sooner. To use the Rapid Response feature, simply turn the. function control knob to R and set the temperature.
What is the symbol for self cleaning oven?
A series of black circles or diamonds of decreasing size from top to bottom of the square is commonly used to indicate self-cleaning. Alternatively, you may have a setting that shows a P which stands for pyrolytic (meaning heat) cleaning.
How can I tell what the temperature is in my oven?
Simply, turn the dial to where you roughly believe your most commonly used temperature is (e.g. 180), wait for the oven to heat up and check the thermometer. After a handful of tweaks and retests, you should have a good idea what’s where and can mark accordingly using one of the methods above.
Is it good to know what the symbols on your oven mean?
Oven symbols can be obscure, but if you don’t know what they mean you won’t make the most of your oven and you could be missing out on getting the best cooking and baking results.
Where is the temperature sensor on my oven?
Open your oven door to locate the temperature sensor. It will most likely be found attached to the back wall, near the top. After allowing the sensor to reach room temperature, set your multimeter to Rx1 and touch the probes to the sensor’s terminals to test for continuity.
Are there temperature markings on the knob of an oven?
When it comes to ovens, they are by no means an exception to the rule and this fact also extends to the oven knobs attached to the cooker. Many oven knobs have the temperature markers printed onto the dial itself. As such, the likelihood you may rub out some of the markings over time is pretty high.
Oven symbols can be obscure, but if you don’t know what they mean you won’t make the most of your oven and you could be missing out on getting the best cooking and baking results.
Simply, turn the dial to where you roughly believe your most commonly used temperature is (e.g. 180), wait for the oven to heat up and check the thermometer. After a handful of tweaks and retests, you should have a good idea what’s where and can mark accordingly using one of the methods above.
When it comes to ovens, they are by no means an exception to the rule and this fact also extends to the oven knobs attached to the cooker. Many oven knobs have the temperature markers printed onto the dial itself. As such, the likelihood you may rub out some of the markings over time is pretty high.
