What are the rules for series and parallel circuits
Voltage drops add to equal total voltage.All components share the same (equal) current.Resistances add to equal total resistance.
What are the 3 rules for parallel circuits?
From this definition, three rules of parallel circuits follow: All components share the same voltage. Resistances diminish to equal a smaller, total resistance. Branch currents add to equal a larger, total current.
What are the rules for current and potential difference in series and parallel circuits?
In parallel circuits, the electric potential difference across each resistor (ΔV) is the same. The current in a resistor follows Ohm’s law: I = ΔV / R. Since the ΔV is the same for each resistor, the current will be smallest where the resistance is greatest.
What are the rules for a series circuit?
From this definition, three rules of series circuits follow: all components share the same current; resistances add to equal a larger, total resistance; and voltage drops add to equal a larger, total voltage. All of these rules find root in the definition of a series circuit.What is series circuit and parallel circuit?

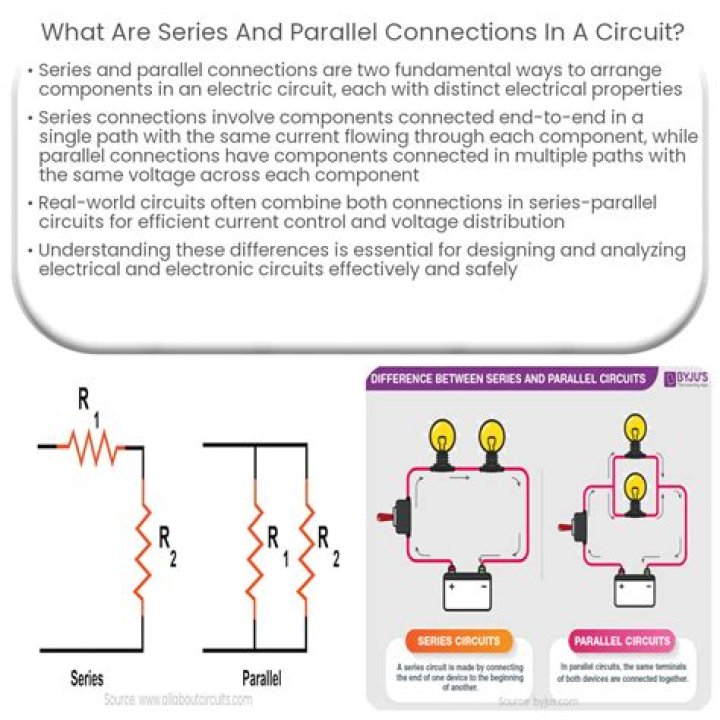

In a series circuit, all components are connected end-to-end, forming a single path for electrons to flow. In a parallel circuit, all components are connected across each other, forming exactly two sets of electrically common points.
What general rule can you make about the current in a series circuit?
In a series circuit, the current is the same at each resistor. If the light bulbs are identical, then the resistance is the same for each resistor. The voltage drop (I•R) will be the same for each resistor since the current at and the resistance of each resistor is the same.
What are the rules for current in a parallel circuit?
BASIC RULES A parallel circuit has two or more paths for current to flow through. Voltage is the same across each component of the parallel circuit. The sum of the currents through each path is equal to the total current that flows from the source.
What are the rules for current and potential difference in a series circuit?
The same current flows through each part of a series circuit. The total resistance of a series circuit is equal to the sum of individual resistances. Voltage applied to a series circuit is equal to the sum of the individual voltage drops.What is the rule for calculating current in a series circuit?
The equation V = I/R, known as Ohm’s Law, also holds true at each resistor in the circuit. The current flow throughout a series circuit is constant, which means it’s the same at each resistor. You can calculate the voltage drop at each resistor using Ohms’ Law.
What is the relationship between potential difference and current?The current in a circuit is directly proportional to the electric potential difference impressed across its ends and inversely proportional to the total resistance offered by the external circuit. The greater the battery voltage (i.e., electric potential difference), the greater the current.
Article first time published onWhat happens to the PD in a parallel circuit?
Potential difference in parallel Since potential difference is used to measure changes in energy, the potential difference supplied is equal to the potential differences across each of the parallel components but the value of current and resistance could be different.
What is series combination and parallel combination?
When two or more resistances are connected end to end consecutively, they are said to be connected in series combination. … When two or more resistances are connected between the same two points, they are said to be connected in parallel combination.
What are parallel circuits for kids?
A parallel circuit contains multiple pathways, or branches. Each device in a parallel circuit is on a separate branch. … Because only part of the total current flows through each branch, the amount of current is different at different points in a parallel circuit.
Does current split in series?
In a series circuit, the current that flows through each of the components is the same, and the voltage across the circuit is the sum of the individual voltage drops across each component. … If one bulb burns out in a series circuit, the entire circuit is broken.
What is a circuit in series?
In electric circuit. ) A series circuit comprises a path along which the whole current flows through each component. A parallel circuit comprises branches so that the current divides and only part of it flows through any branch.
What is series circuit with diagram?
Series circuits A series circuit is a circuit in which resistors are arranged in a chain, so the current has only one path to take. The current is the same through each resistor. … A series circuit is shown in the diagram above. The current flows through each resistor in turn.
What are the advantages and disadvantages of series and parallel circuits?
AdvantagesDisadvantagesIf there is a fault in one of the electric appliances, the current is able to pass through different paths of the circuit.In parallel circuits, we cannot increase the voltage since the resistance decreases in the parallel circuit.
Can you have voltage without current?
Voltage is the Cause, Current is the Effect Voltage attempts to make a current flow, and current will flow if the circuit is complete. … It is possible to have voltage without current, but current cannot flow without voltage.
What flows in a wire?
The material flowing in wires carrying electricity is electrons and when a given number of electrons flow into a wire, an equal number must flow out. The wire is simply a pathway for the electrons to travel. Wires are made of metals, which are conductors. Conductors have some electrons that are rather free to move.
What is Ohm's law state?
Ohm’s law, description of the relationship between current, voltage, and resistance. The amount of steady current through a large number of materials is directly proportional to the potential difference, or voltage, across the materials. … Ohm’s law may be expressed mathematically as V/I = R.
What is one problem with using a series circuit?
What is one problem with using a series circuit? It has a lot of series. If one goes down, they all go down! It doesn’t work properly.
Can series and parallel circuits combine?
A combination circuit is one that has a “combination” of series and parallel paths for the electricity to flow. Its properties are a combination of the two. In this example, the parallel section of the circuit is like a sub-circuit and actually is part of an over-all series circuit.
What are 2 similarities and 2 differences between series and parallel circuits?
Series CircuitParallel CircuitA circuit is said to be a series circuit when the flow of current is the same throughout all the components in the circuit.A parallel circuit refers to a circuit with two or more two paths for the current to flow.
What is relation between V and R in series combination?
V=IR where I is the current through a resistor, and R is the resistance of the resistor. V=IR where V is the voltage, I is the current through a resistor, and R is the resistance of the resistor. Hence, the current flowing through a series combination of resistors is the same in each resistor.
Which connection is better series or parallel?
Parallel connection is better because the voltage across each appliance connected in parallel is same that means if a number of bulbs are connected in parallel then irrespective of the number no bulb will get dim, but in series as the number of bulbs increase the resistance increase voltage decrease so the bulb gets …
When can you apply the parallel connection?
Resistors, loads are said to be connected in parallel when the end of each of the resistors or loads have a common point or junction and the other ends are also connected to a common point or junction.
Are houses wired in series or parallel?
Most standard 120-volt household circuits in your home are (or should be) parallel circuits. Outlets, switches, and light fixtures are wired in such a way that the hot and neutral wires maintain a continuous circuit pathway independent from the individual devices that draw their power from the circuit.
What is series parallel?
Definition of series parallel : an arrangement of cells or circuit elements in which groups of two or more in parallel are connected in series.
What is the difference between a series and parallel circuit ks2?
In closed circuits, a series circuit only has only one path that the current can travel through, whereas a parallel circuit splits the current along multiple paths before meeting up again, meaning that every component in a circuit is assured a charge.
What is a series circuit 5th grade?
Series Circuits A series circuit is a circuit where current only has one path to flow. This means that when the energy leaves the battery and moves through the wire, it can only go in the direction of the single wire until it circles back again, powering each component as it goes by.
