What are Honeywell zone valves and what do they do?
What are Honeywell zone valves and what do they do?

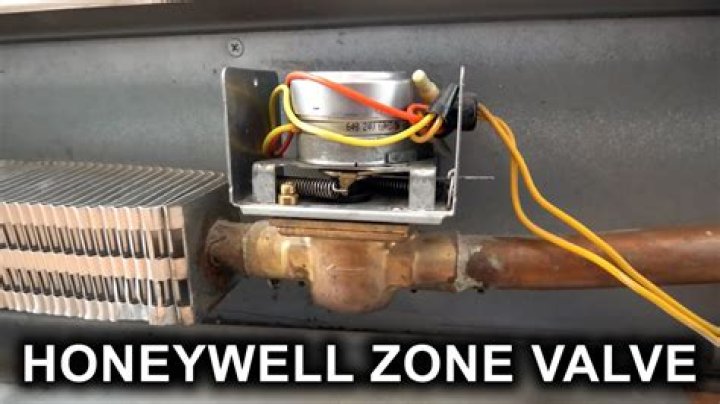

These Honeywell Zone Valves are designed for hydronic heating systems. ON-OFF and two-way low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water and some models for steam. Zone valves control the flow of water to a specific zone in a hydronic heating system.
Where are the zone valves on my heating system?
See BLEVE EXPLOSIONS for details. If your heating system is giving a loud BANG when the zone valves open or close (and circulator starts or stops) take a look at the location of the zone valves. Good practice locates the zone controls and circulators on the return side of the hydronic heating loop.
What are the wiring colors for zone valve?
Honeywell Zone Valve Wiring Wire Colors. General Honeywell Zone Valve Wiring instructions (just below) are followed by links to Honeywell Zone Valve Instruction Sheets. Typical zone valve yellow & red wire connections: Yellow wire connections at the zone valve: the pair of yellow wires on a zone valve are the zone valve motor actuator control.
What is the 4step in Honeywell heating system?
4Step 1: Wire up the heating system Turn off at mains and isolate the supply before starting If you’re fitting a Wireless Relay Box (BDR91) to your boiler, zone valve or Sundial valve, or as a Heat/cool changeover device.
How to wire a Honeywell Motorised Zone valve?
Wiring The wiring diagram above shows relevant connections to a Honeywell junction box (Part No. 42002116-001). Ensure that each numbered, lettered or coloured wire is connected to the correct terminal in the junction box. Make sure all connections are good and all terminal screws are firmly tightened.
Honeywell Zone Valve Wiring Wire Colors. General Honeywell Zone Valve Wiring instructions (just below) are followed by links to Honeywell Zone Valve Instruction Sheets. Typical zone valve yellow & red wire connections: Yellow wire connections at the zone valve: the pair of yellow wires on a zone valve are the zone valve motor actuator control.
4Step 1: Wire up the heating system Turn off at mains and isolate the supply before starting If you’re fitting a Wireless Relay Box (BDR91) to your boiler, zone valve or Sundial valve, or as a Heat/cool changeover device.
How are zone valves used in central heating systems?
Motorised valves control the flow of water between heating and hot water zones in domestic fully pumped central heating systems. The MYSON range of Power Extra motorised valves has been designed with complete reliability and compatibility in mind.
