Should dishwasher drain hose be looped?
Should dishwasher drain hose be looped?
Hear this out loudPause“A high loop is required on the dishwasher drain in the installation instructions for all of your dishwashers. GE: “If an air gap is not required, the drain hose must have the high loop from the floor to prevent backflow of water into the dishwasher or water siphoning out during operation.”
What is a dishwasher high loop?

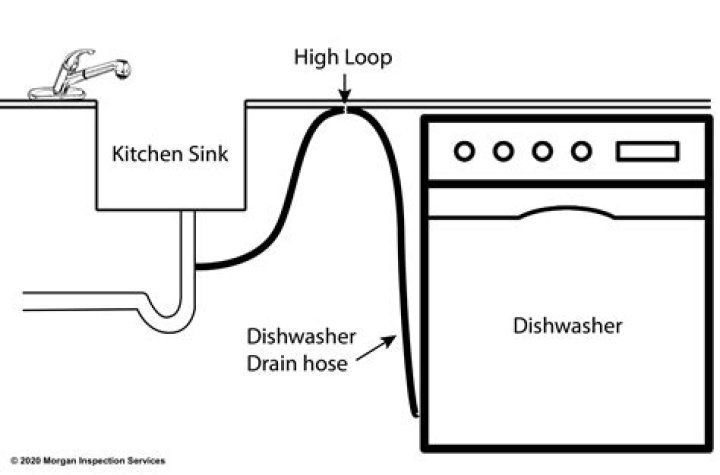

Hear this out loudPauseA high loop is when the dishwasher drain is elevated right before its connection to the kitchen sink drain. The drain hose is secured near the top of the sink in some fashion (could be as easy as using a zip tie to secure it).
Why does my dishwasher have two drain hoses?
Hear this out loudPauseThe incoming dishwasher drain hose connects to one fitting, while a secondary hose runs from the other fitting to the kitchen sink’s drain pipe or garbage disposer. The air gap works by allowing fresh air into the drain hose if there is a backup causing negative pressure.
How high should dishwasher drain hose be?
20 inches
Hear this out loudPauseDishwasher hoses should have a high loop at least 20 inches above the finished floor to prevent wastewater from entering the appliance if the drain clogs. Code requires that the hose connect to the sink drain on the sink side of the trap, typically with a branch tailpiece.
Does air gap have to be above sink?
Hear this out loudPauseThe air gap must be installed at a higher elevation than the dishwasher in order for it to function correctly. A dishwasher air gap must extend above the countertop and drain into the sink. If the drain were to become clogged, water would overflow out of the air gap and into the cabinet, damaging the floorboards.
Where does the high loop drain line go in a dishwasher?
Your Dishwasher High Loop Drain Line. An air gap is a vent that goes up through the top of the sink or countertop. An air gap is optional, but not needed with a properly installed high loop drain line. In the photo below (left) at a San Antonio area Home Inspection, it can be seen that there is no high loop drain line as needed.
What’s the best way to hook up a dishwasher drain hose?
Loop the Drain Hose Pull the dishwasher drain hose up and strap it in place as high up as possible under the sink. This high loop will help prevent wastewater from siphoning back into the dishwasher from the garbage disposal.
How is the dishwasher drain connected to the sink?
When connecting a dishwasher drain with an air gap, but where there is no garbage disposal, the dishwasher air gap connection is indirectly tied to the sink drain. First, connect the dishwasher drain hose onto the small side of the air gap, using a hose clamp.
Why is my Bosch dishwasher not draining properly?
Bosch: The high loop in the drain hose of your dishwasher is to keep water from settling in the hose if it were hanging down any lower or horizontally. This keeps the drain hose dried out and keeps any odors from backing up into the dishwasher.
Where to drill the hole for dishwasher drain?
In most cases, it’s best to make the hole about 3 or 4 inches above the bottom of the sink cabinet . If the dishwasher alcove is separated from the sink cabinet by one or two additional cabinets, drill holes in the cabinet walls for the drain hose as close to the back and bottom as possible.
What is the purpose of a high loop on a dishwasher?
The purpose of a dishwasher high drain loop is to prevent back flow of water. The water can flow back into the dishwasher which will leave water in the bottom of the dishwasher. The high drain loop is also there to prevent improper drainage of water while the dishwasher is running. The high loop does not prevent siphoning.
Where is the drain located in the dishwasher?
The drain valve is located underneath the dishwasher behind the front kick panel . It is usually by the motor, so you can use that to find its location. The valve consists of a gate arm and solenoid (also called a coil)
What size is the drain hose on a dishwasher?
The standard dishwasher drain hose size is 5/8″(I.D.) inside diameter on both ends. The drain, electric, and water connections are all located on the bottom of the dishwasher. It is Recommended by the manufactures that you install the dishwasher water supply line to the hot water supply.
