Is a wet vent bad?
Is a wet vent bad?
It’s important to make sure you have a large enough wet vent pipe, so unnecessary problems don’t occur. Having a wet vent pipe that’s too small could result in issues like clogging, hydraulic overload, leaking, and other problems.
How far can a toilet be from a wet vent?
If the toilet is less than six feet from the stack, tie the waste line from the new toilet directly into the stack. The toilet can be as far as 10 feet from the stack if the waste line is 4 inches.
What does wet venting mean in a bathroom?
So what is wet venting? Traditional wet venting is the venting of one or two bathroom groups. A bathroom group includes all the fixtures located within a bathroom, such as a water closet, lavatory, bathtub, shower or bidet. All these fixtures can be vented with a single dry vent.
Can a double wet vent be used in a double bathroom?
As simple as the wet-venting system is, plumbing codes often add unnecessary requirements. The most commonly added requirement is that the water closet must be the last fixture in the wet-vented system. That makes it difficult for a double bathroom group wet vent.
What are the different types of wet vent plumbing?
A group may include the toilet, the sink, the shower, the lavatory, the water closet, and so on. Basically, all the fixtures in a bathroom group will use the same vent when you utilize wet venting. Even though this method of plumbing can be used for several other applications, it’s typically only used for bathroom fixtures.
Can a sink be used as a wet vent?
Wet venting is most common in conjunction with toilets and sinks; the drain for the sink is also the vent for the toilet. It can also be used for a variety of other applications but due to the following rules this is the most convenient and common situation to run into. Wet Venting Rules:
Can a horizontal wet vent be used in a bathroom?

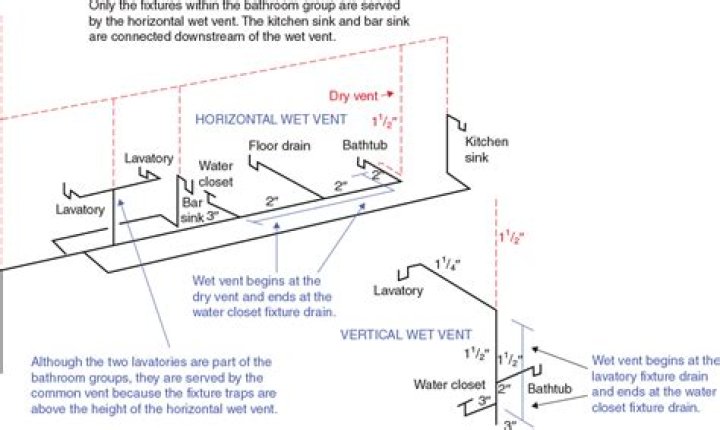

SECTION 909 WET VENTING 909.1 Horizontal wet vent permitted. Any combination of fixtures within two bathroom groups located on the same floor level is permitted to be vented by a horizontal wet vent.
What do you need to know about wet vent plumbing?
Typically, wet venting is used for a group of bathroom fixtures. A group may include the toilet, the sink, the shower, the lavatory, the water closet, and so on. Basically, all the fixtures in a bathroom group will use the same vent when you utilize wet venting.
Can a water closet be wet vented in a double bathroom?
That makes it difficult for a double bathroom group wet vent. The two water closets would have to tie in together. Actually, there is no technical justification for making the water closet the last fixture. Thousands of wet-vented systems are working where the water closet is not the last fixture.
Why was horizontal wet venting added to the UPC?
It doesn’t help that the Uniform Plumbing Code only recently added traditional wet venting to the code, although the name was changed to horizontal wet venting. Unfortunately, in the newer edition of the UPC, arbitrary restrictions were added, which can be traced to a lack of understanding of wet venting.
