Is a ground wire required

The ground wire is not strictly necessary for the operation of a device, but it is still an important feature. This wire is designed to provide a path for electrical current to travel if the normal paths aren’t available. This could be because the other paths are damaged, or there is too much electricity for them.

Is it OK to not use a ground wire?

The appliance will operate normally without the ground wire because it is not a part of the conducting path which supplies electricity to the appliance. … In the absence of the ground wire, shock hazard conditions will often not cause the breaker to trip unless the circuit has a ground fault interrupter in it.

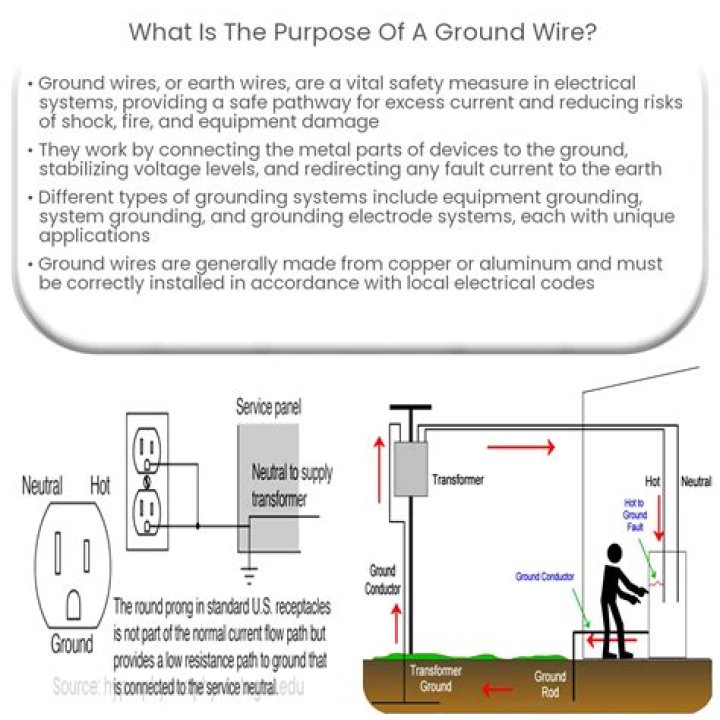

What is the point of a ground wire?

It’s purpose is to carry electrical current only under short circuit or other conditions that would be potentially dangerous. Grounding wires serve as an alternate path for the current to flow back to the source, rather than go through anyone touching a dangerous appliance or electrical box.

What happens if I don't have ground wire?

If the ground is not connected (bonded) to the neutral, or the system ground is not properly grounded to the Earth, two bad conditions will exist: zero voltage will not have a ground reference, which can lead to irregular and inconvenient voltages that could have a negative effect on equipment, but more importantly, …

What happens if you don't ground?

If your outlets and electrical box are not properly grounded, appliances and electronics you are using could end up passing excess current through you, using your body as a means to complete the path to the negatively charged ground. In other words, you could be shocked or electrocuted.

Why is grounding necessary?

Grounding helps protect you and your home from the dangers of damaged circuits or electrical overloads. When power surges happen, the excess electricity introduced to the system could leap out of the wiring. Without electrical grounding, this stray voltage could start a fire, damage appliances, or shock bystanders.

Why do old homes not have ground wires?

Having ungrounded outlets means they are already very old and worn out, hence are probably not making good electrical connections, which makes them a fire hazard as well as also not economical as they consume more power due to loose contacts… Being very old, the wires a… The ground is an important for safety.

Is a ground wire necessary for a light switch?

It is perfectly legal to wire a light switch without the inclusion of a ground. Dimmers will require a ground wire but traditional toggle-type switches will not. Omitting a ground wire on any switch is not recommended.

Is it OK to install a light fixture without a ground wire?

In the US, a ground wire is required. The lighting fixture must have a place to install a ground wire if it has any metal parts that are not conducting. Whether in the US or not, it is highly recommended that all metal parts are grounded. Do not run new wire without a ground.

Can any wire be used as a ground wire?

The main types of grounding wire most used includes bare copper and gauged copper wire. … As a base, the wire contained within acts as a ground. Contractors for outdoor applications prefer this type of copper wire, as it is protected from the elements. Another commonly used type of grounding wires is gauged copper wire.

Article first time published on

Can you leave a ground wire disconnected?

Disconnecting the ground wire from your home system would have no obvious effect, but would create a safety hazard if a fault developed in a metal-cased appliance. The equivalent to the car disconnection would be disconnecting the neutral wire. Current flows between live and neutral, not live and ground.

Will a circuit work without a ground?

Absolutely not. Many circuits don’t have a physical and direct connection to the earth. Electronic devices that pose a safety hazard normally do have one for extra protection, but it isn’t an a requirement for a circuit to work. If a circuit lacks an earth ground, though, it must have a floating ground.

What happens if your house isn't grounded?

If there is no ground connection or a poor ground connection in the house, electricity could travel through your body to the ground. In this case you would end up becoming the ground connection – a condition that can lead to serious injury or also death.

Is grounding a house necessary?

Make sure your home is electrically grounded is the first thing you should do. According to the National Fire Protection Agency, electric fires have been the leading cause of property damages and fire-related casualties in Atlanta for the last 5 years. … This will reduce the chances of electric fires and electric shocks.

Can an outlet be grounded without a ground wire?

The accepted answer states “it’s not permitted to have a 3 prong receptacle without the ground wire being attached.” This is incorrect. A non-grounding type receptacle(s) shall be permitted to be replaced with a grounding type receptacle(s) where supplied through a ground-fault circuit interrupter.

Can you ground yourself?

When you’re outside, you can easily ground yourself by allowing the bottoms of your feet, palms of your hands, or entire body to touch the earth. Walk in the grass, lay in the sand, or swim in the sea. These are all easy ways to naturally reconnect. Indoors.

Do LED lights need ground wire?

Now, any fixture that uses LEDs, or a bulb that uses LEDs to replace an incandescent bulb, must be grounded, similarly to the incandescent-bulb-using fixture. If not grounded, these fixtures use 110/120 volts AC power and might cause injury.

What to do if there is no ground wire on light switch?

For a normal light switch, the ground is a safety feature, not necessary for operation. You can leave that screw unconnected if you don’t have a ground wire, or if you have the wire but no screw on the switch, you can ground the switch another way.

Can I attach ground wire to mounting screw?

Hook the screw loop around the green ground screw on your mounting bracket or light fixture and tighten the screw to hold it in place. If your light fixture has its own green ground wire you will need to connect the two ground wires using a wire nut.

Can I install a dimmer without ground wire?

Tip. In an older home, you may encounter a switch box that has no ground wire. In that case, an exception in article 404.9(B) of the current National Electric Code (NEC) allows a dimmer without a connecting ground wire to still be installed if it is a replacement.

What happens if you don't earth a light?

If that happens and the casing is earthed then enough current will be drawn to earth to blow the fuse or trip the RCD. However if the casing is not earthed it will sit there live until an unsuspecting human touches it the best route to earth could be through said human. Summary: just earth it!

Can ground wire be exposed?

Exposed Grounding Wires Grounding wires do not have electric current running through them most of the time, and commonly have exposed wires and connections. … The grounding wires are safe to touch unless there is an electrical surge that causes electricity to flow through the grounding wire.

What happens if ground wire touches metal?

If the ground wires touch the metal box the breaker pops and the ground wires spark. The main feed comes out of a ceiling light fixture box. The ceiling box is two wire BX. I’m using NM to feed the junction box.

Is bare wire always ground?

Ground: The bare wire is called the ground wire. Like the neutral wire, the ground wire is also connected to an earth ground. However, the neutral and ground wires serve two distinct purposes. The neutral wire forms a part of the live circuit along with the hot wire.

Why do some electronics not have a ground?

Some electronic devices are built to prevent an electric overload, or electric surge without a ground prong. An appliance may have an internal voltage adapter so it will never put out a lethal voltage, even in the event of a fault.

How much does grounding a house cost?

Adding a Ground Wire Wiring generally costs from $6 to $8 per foot, and you can expect to pay between $130 to $170 per connection, though it will be more expensive in a larger home and less expensive in a small apartment.

Does my house have a ground wire?

Look at the outlets in your home. The first sign of proper grounding is whether you have two-prong outlets or three. A three-prong outlet has a narrow slot, a larger slot and a “U-shaped slot.” The U-shaped slot is the grounding component.

How do you ground wire an old house?

To add a ground wire to your home, you need a breaker box with a ground bar + a ground rod + a wire between the two. This part is not such a problem. To take advantage of it, you need 3 wires run from the breakers to 3-prong outlets in your home. This part will cost you a ton in terms of rewiring.

How can I tell if my house is properly grounded?

An easy way to tell if your home’s wires are properly grounded are the outlets. A two-pronged outlet is not grounded because there is no place for the ground prong. In grounded outlets, a third slot for a prong is just above the two vertical slots.
