Is a disconnect required for hot water heater?

Is a disconnect required for hot water heater?

According to the NEC an electric water heater does not require any disconnect other than a circuit breaker at the main panel or sub panel and it does not need to be insight.

How do you drain a hot water heater that is disconnected?

Before you shut off the water, connect a garden hose to the drain valve and try and flush the water heater tank a bit while the water pressure is on. To do this, open the drain valve for a few seconds and then close it again. The pressure will blow out any sediment stuck in the valve and help the tank drain faster.

Is a plug considered a disconnect?

Disconnecting Means. This can include a switch, a circuit breaker, a cord and plug connection (sometimes), or a group of the aforementioned devices. There are other stipulations within the code that dictate how these devices can, and cannot be used.

What size disconnect do you need for a water heater?

Also, 10/3 is NOT needed for a water heater. 10/2 is perfect and typical for this installation. Using 10/3 is basically wasteful.

What’s the best way to replace an electric water heater?

Replace you old water heater and notice the difference right away. Turn off the power to the water heater, depending on whether it’s gas or electric. This will prevent injuries when removing the old unit. Turn off the gas valve that goes to the water heater if its gas, or turn off the power switch in the breaker box if it’s electric.

Is there a way to disconnect a water heater?

So the building code addresses this safety issue by providing several choices of solutions that make the means of disconnecting the circuit either within sight or under the exclusive control of the person working on the water heater.

How do you turn off a gas hot water heater?

This should be listed on the sticker on the side of the heater. Our heater was gas, so we turned off the gas using the cut-off valve. Turn off the water supply and turn on all the hot water faucets in the house. Use a garden hose to drain the tank completely.

When is it time to replace your hot water heater?

Maybe your hot water heater has sprung a leak or it’s just stopped working. Well, it might be time for you to replace your water heater. The average life span of a water heater is between 8 and 12 years. When it comes time to replace yours, chances are, you’ll pick the same type of unit — either gas or electric.

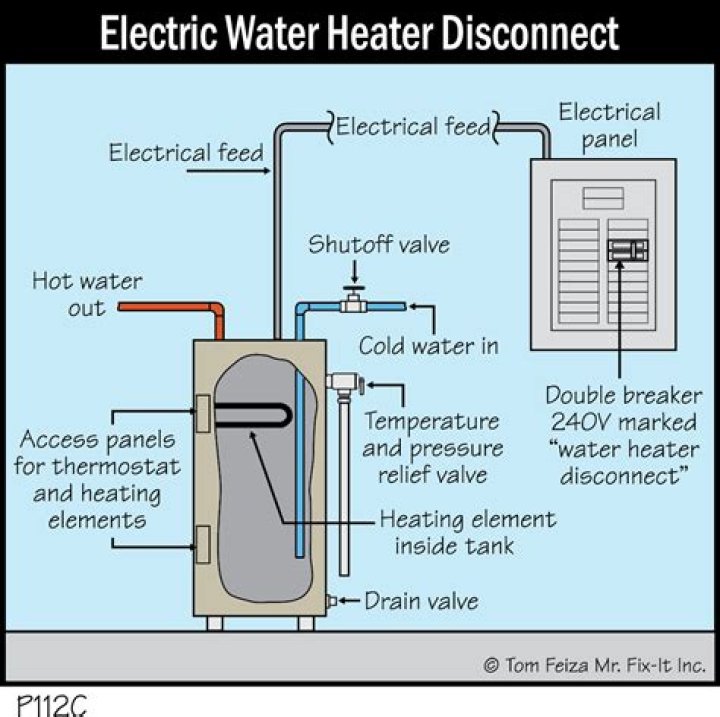

Does an electric water heater require a disconnect?

A water heater often doesn’t require an additional disconnect. Most water heaters are installed in a utility room or closet right near the home’s breaker panel. If the circuit breaker is within sight of the appliance then it may serve as the disconnect by itself.

What’s inside a hot water heater?

Electric water heaters contain two heating elements that make the water hot. The water heater contains a heavy inner tank that is usually made out of steel, insulation around the tank, a dip tube, exhaust pipe, thermostat, drain valve, pressure relief valve, and a sacrificial anode rod to prevent corrosion.

How do you replace an electric water heater?

Steps to Replace an Electric Water Heater Step 1: Turn off the breaker or remove the fuse for the water heater. Step 2: Disconnect the wiring from the water heater. Step 3: Close the valve close to the water heater on the cold line. Step 4: Drain the water heater. Step 5: Unsolder or cut the nearest copper joints on the hot and cold pipes.

Where is the hot water heater?

Water heaters are located in garages or attics on the side of the house. Usually one or more of the bathrooms or the kitchen is located far from where you need hot water.
