Is 4140 hot rolled

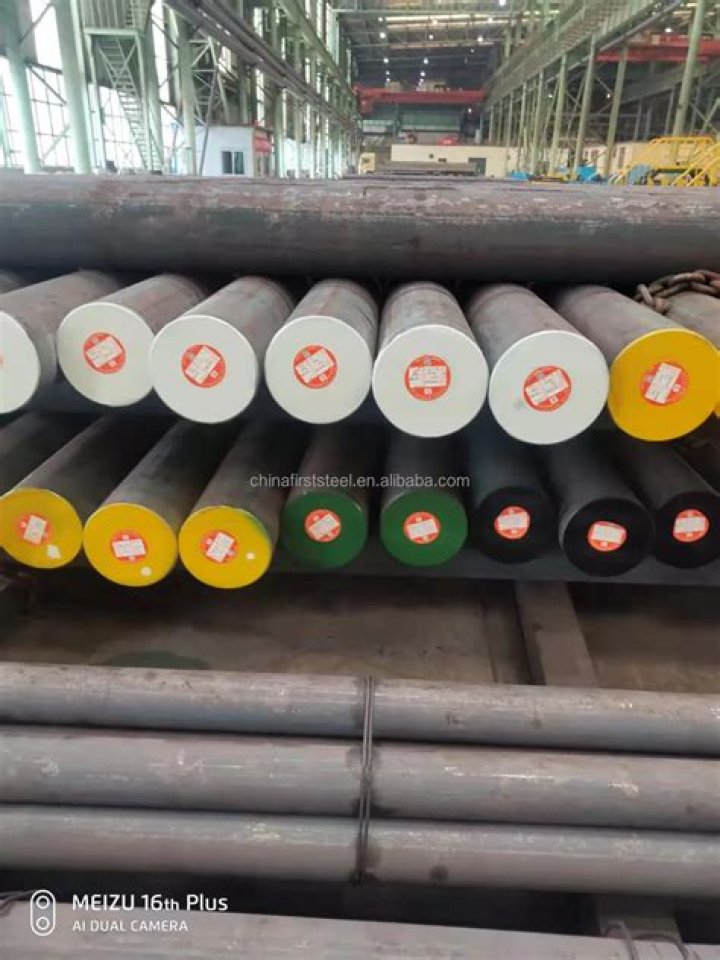

Hot rolled 4140 steel bar is a medium-carbon alloy steel that has a high hardenability. This grade is also widely used for forging. Hot rolled 4140 steel also has good fatigue and impact resistance after heat treating.

What type of material is 4140?

4140 steel is a chromium, molybdenum, manganese low alloy steel plate that is known for its toughness, high fatigue strength, and high torsional strength.

What is a 4140?

AISI 4140 is a chromium-molybdenum alloy steel. The chromium content provides good hardness penetration, and the molybdenum content ensures uniform hardness and high strength. AISI 4140 chrome-molybdenum steel can be oil hardened to a relatively high level of hardness.

Can you bend 4140?

4140 may be supplied in several hardness ranges to deliver several levels of strength. In most cases it is considered to be fairly machinable and weldable. You can forge it and bend it with caution. It is considered to be a “through hardening steel”, but it will also accept surface hardening to maintain a ductile core.

How hard is pre hardened 4140?

4140 Chromium-Molybdenum Steel 4140 PREHARD is heat treated to a medium hardness (HRC 28/32) and is designated as 4140 HT. 4140 annealed is supplied in the soft condition and can be hardened to RC 40.

Is 4140 considered tool steel?

Yes. This is definitely a type of tool steel. One of the reasons why 4140 qualifies to be tool steel is the high content of chromium and carbon. The higher the chromium content the better.

Is 4140 steel stainless steel?

4140 is a chromium and molybdenum alloy steel that has an excellent weight to strength ratio. … Although it is chromium steel and often referred to as “chromoly steel” it does not contain as much chromium as stainless steel.

What is the difference between 1045 and 4140?

4140 steel is chromium, molybdenum, manganese steel with good toughness, impact resistance and fatigue strength. 1045 has slightly increased tensile strength and yield strength numbers than 1045 as a result of a slightly higher carbon content.

Does 4140 have nickel in it?

Similar to 4340, 4140 steel is highly strong, which is a result of its chromium and molybdenum content. However, since it does not contain nickel, it less hard and more susceptible to fracturing. Other key properties include: Corrosion resistance.

What is 4130 steel used for?

4130 steel performs best as a structural steel, and is most often found as round tube or bar stock in structural applications for aircraft and buildings.

Article first time published on

What is the difference between 4140 and 4130 steel?

4130 contains 0.28-0.33% Carbon and 0.40-0.60% Manganese, while 4140 contains 0.75-1.00% Manganese and 0.38-0.43% Carbon. – 4140 alloy steel has greater hardenability and strength than 4130. – 4130 steel is easier welding than AISI 4140 steel and its wear-resistant performance is lower than in 4140.

Can you nitride 4140?

Materials that can be nitrided include low carbon steels, which will develop file hardness, alloy steels such as 4130, 4140, 4340 and Nitralloy 135M which are the most common nitriding steels and special application steels including, mold steels (P-20), air hardening tool steels (A-2 and D-2), hot work and shock steels …

Can you flame harden 4140?

Flame hardening is a surface hardening process used on medium carbon mild or alloy steels (such as 1045, 4140, 4340), or cast irons, to produce a hard wear resistant surface (case) on the part.

How hard can 4140 be heat treated to?

AISI 4140 alloy steel can be tempered at 205 to 649°C (400 to 1200°F) depending upon the desired hardness level. The hardness of the steel can be increased if it has a lower tempering temperature.

What grade of steel is 4140?

4140 Grade Designation Designates that 4140 steel is molybdenum steel, indicating that it possesses higher amounts of molybdenum than other steels, such as the 1xxx series. Designates that 4140 steel has additions of chromium as well; more so than 46xx steel for example.

Is 4140 a medium carbon steel?

AISI 4140 and 4150 is a medium carbon, chromium-molybdenum alloy steel. This steel is offered in a wide range of conditions including but not limited to: cold drawn annealed, hot roll heat treated, heat treated turned ground and polished.

How do you harden 4140?

Heat the steel to 1,675 degrees Fahrenheit in a heat treat furnace or forge and hold it at that temperature for approximately 30 minutes per inch of length to normalize the steel. Normalizing removes any stresses within the steel that could create cracks when hardened.

Is 4140 steel good for gun barrels?

Carbon Steels 4140—Ordnance steel or chrome-moly steel, it has 0.4 percent carbon and is really strong while still being cost-effective to machine. You’ll find this in barrels, bolts receivers and high-stress items like muzzle brakes.

Is 4140 good for Hammers?

4140 Steel Like 1045 steel, 4140 is a favorite for hammers and other tools due to its enforceability and easy maintenance.

CAN 4140 steel be welded?

4140 steel can be welded without problems as long as you follow some simple guidelines. This also applies to AISI 4140 and 4340. … If the weld and heat affected zone cool too quickly we are in trouble. AISI 4140 steel is alloyed with chromium and molybdenum, hence the term chromoly steel.

How are AISI 1040 and AISI 4140 the same?

AISI 1040 is medium carbon steel used for constructional related structural applications where the property alterations are inevitable [1], [2]. AISI 4140 steel is alloyed steel containing Cr, Mo, Si, and Mn as prominent alloying elements. This steel has higher hardenability, strength, and wear resistance.

Is 4130 or 4140 steel stronger?

The chromium-molybdenum (Chromoly) alloys AISI/SAE 4130 and 4140 are considered Ultrahigh-Strength Steels. … Because of its higher carbon content, 4140 steel has greater hardenability and strength than does 4130.

What is the difference between 4140 and 4150 steel?

Tensile strength: 4150 has a higher tensile strength, meaning it has a higher threshold for stress before breaking. Ductility & workability: 4140 is more ductile, meaning it can be bent easier than 4150. It also can be used in cold working conditions while 4150 needs to be thermally treated before forming.

Is stainless a 4130?

Key points: Stainless steels are defined as low-carbon steels with at least 10% chromium with or without other alloying elements. | AISI 4130 alloy steel has properties better than or similar to aircraft-grade stainless steels. | Alloy steels are less expensive and more-easily machined than standard stainless grades.

What is the Rockwell hardness of 4140 steel?

4140 (modified) Cold Finished, Annealed Alloy Bar Stock Typical hardness is Rockwell “C” 19/24. Typical tensile strength 114,000 PSI.

What are the types of tool steels?

There are six groups of tool steels: water-hardening, cold-work, shock-resistant, high-speed, hot-work, and special purpose. The choice of group to select depends on cost, working temperature, required surface hardness, strength, shock resistance, and toughness requirements.

Can 4140 be Carburized?

Case hardening is typically used to mean carburizing, but it is also used to describe induction hardened components. 4140 is not used for carburizing, but it can be surface hardened using induction.

Why is carburizing better than nitriding?

Nitriding can be done at lower temperatures than carburizing. The diffusion of nitrogen gas normally occurs at low temperatures, and hardening occurs without quenching. Only the surface is hardened, the core remains the same. When a steel has undergone Nitriding process, it has excellent wear resistance.

Is nitriding steel expensive?

Typically the higher the alloy content of the steel, the higher the cost of the base material. The Nitriding process CAN be a more costly process to run based on batch processing and long cycle times.

How can I heat treat 4140 at home?

For 4140 steel, the recommended heat treatment [1] consists of heating to austenitizing temperature, typically 1570°F (855°C), followed by oil quenching. Tempering (reheating after quenching) will achieve the desired hardness range.

Is carburizing the same as case hardening?

Carburizing, also referred to as Case Hardening, is a heat treatment process that produces a surface which is resistant to wear, while maintaining toughness and strength of the core. This treatment is applied to low carbon steel parts after machining, as well as high alloy steel bearings, gears, and other components.
