How thick is r30 insulation batts

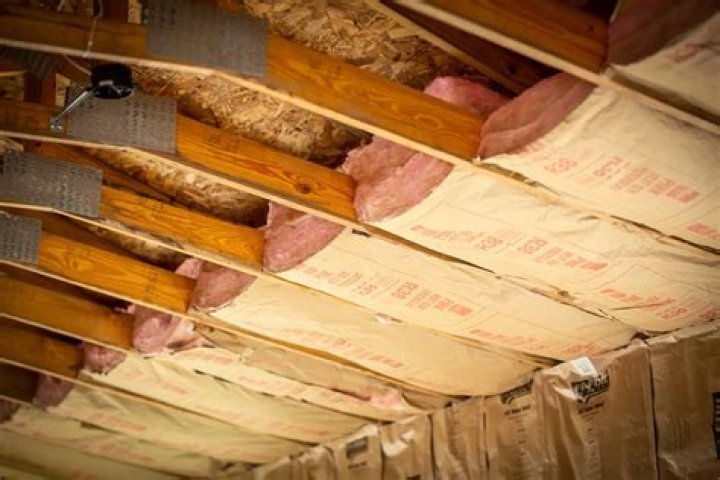

Typical R-30 fiberglass insulation is 10-inches-thick. Prior to buying fiberglass insulation, it is important to measure the joint spacing you are working with. Note that the actual space between the framing members will be less than 16 or 24 inches, but the foam batts can easily be stuffed between these lengths.
What is the thickness of batt insulation?
Insulation batts for wood-framed floors and ceilings are available in thicknesses of 6.25 inches, 6.75 inches, 8 inches, 8.25 inches, 9.5 inches, 10.25 inches and 12 inches.
How thick is R38 insulation batts?
The R-38 high-performance batts are 10˝ to 10-1/4˝ thick as opposed to stan- dard R-38 fiber glass insulation batts of 12˝.
How many inches do you need for R30?
To reach an R30 rating, you will need a layer of 12.4″ blown-in fiberglass and 9.3″ of cellulose.What is the R value of 2 inch fiberglass insulation?
Here are the R-values per inch of the most common types of insulation: Fiberglass (blown): 2.2 – 2.9. Fiberglass (batts): 2.9 – 3.8.
What insulation is used for 2x8 walls?
Two-by-Eight Floor Joists Fiberglass R-19 batt insulation is about 6 inches thick and is available in 15-inch widths, making it the correct size for insulating a two-by-eight floor joist system.
Can you put R30 insulation in walls?
R-30 fiberglass insulation is designed to be in a roof or ceiling cavity framed with 2x10s. It is way too thick for 2×4 walls.
What kind of insulation do you use for a cathedral ceiling?
Note: Most experts agree that closed-cell foam is best for unvented cathedral ceilings while vented cathedral ceilings can be insulated with less expensive open-cell foam.How thick is R30 Rockwool?
Insulation R-ValueR-30Thickness7-1/4 In.MaterialStone Wool InsulationCoverage29.9 Sq. Ft.BrandRockwool
How thick is r29 insulation?Uses of R-19 Because R-19 insulation is just over 6 inches thick, it is well-suited for use in construction projects that use 2-by-6-inch lumber; it fits tightly in the wall and prevents air from flowing through gaps in the plywood on the walls.
Article first time published onWhat's the difference between R30 and R38?
R30, by the book, will block about 97% of heat transfer. This is reduced by sub-optimal installation, which is ubiquitous. R 8 insulation, by the book, will block 87.5% of heat transfer, so, if you add R8 to R30, you are blocking an additional 87.5% of the 3% that gets through the R30.
What is R25 insulation?
R-25 EcoTouch insulation is intended to be friction-fit between exterior wall wood studs. Friction-fit unfaced insulation between studs after cover material has been installed on one side of the cavity. Use wire or metal straps to hold insulation in place in applications without a cover material.
How thick is our 38 insulation?
10¼ ” thick, R-38C EcoTouch® Thermal Batt insulation prevents moisture damage and help assure long roof life by providing 1″ of ventilation air space between the insulation and roof deck.
What is the difference between R19 and R30 insulation?
There is a direct relationship between the amount of insulation and the amount of heat transfer. The bigger the R value, the better the insulation is at slowing down the heat transfer. So R19 is better insulation than R13, and R30 is better than R19. The larger the R value, the better the insulation value.
How thick is r12 insulation?
R-12 EcoTouch PINK FIBERGLAS Insulation 15-inch x 47-inch x 3.5-inch (97.9 sq. ft.)
What is the R-value of 4 inch fiberglass insulation?
Blown-in fiberglass has an R-value of 2.2 to 2.7 per inch. Batts. Fiberglass batts and rolls are ideal for placement between framing during construction in floors, walls, attics, and ceilings. They’re denser than blown-in insulation, offering an R-value of up to 4.3 per inch.
Can you put too much insulation in a wall?
It is possible to over-insulate your house so much that it can’t breathe. The whole point of home insulation is to tightly seal your home’s interior. But if it becomes too tightly sealed with too many layers of insulation, moisture can get trapped inside those layers. That’s when mold starts to grow.
What insulation should I use for 6 inch walls?
Use R-19 or R-21 kraft-faced fiberglass insulation for two-by-six (2×6) walls. This combination ensures that the insulation is neither too loose nor too tightly packed within the walls.
What is the best R-value for walls?
Typical recommendations for exterior walls are R-13 to R-23, while R-30, R-38 and R-49 are common for ceilings and attic spaces.
How thick is a 2x8 wall?
Any project will typically have at least two or three different thicknesses for several wall types. Medium to large projects will more thicknesses and can have many wall types. In wood frame construction the stud sizes are 2×4, 2×6, and 2×8 nominal (3.5”, 5.5”, and 7.25” actual).
How thick is r21 batt insulation?
5½ ” thick R-21 EcoTouch® insulation delivers 19% more R-value than compressed 6¼ ” R-19 Fiberglas™ insulation. The kraft facing on this insulation will burn and must not be left exposed.
What R-value can you get in a 2x8 wall?
A 2×8 wall filled with 7.25″ of R3. 7/inch fluff like cellulose comes in at about R19 “whole-wall” after adding in the performance of the sheathing, siding, gypsum & air films etc.
Is R30 fire resistant?
Non-combustible and fire resistant, Comfortbatt will not develop toxic smoke or promote flame spread, even when exposed directly to a fire. It also offers water and moisture resistance and excellent sound absorbency. Comfortbatt is an effective way to improve a home’s energy efficiency.
How thick are Rockwool Batts?
Depending on the application ROCKWOOL can make a board product up to 6” thick and a batt product 7.25” thick. ROCKWOOL products can also be layered to achieve a higher R-value when needed.
Is Rockwool bad for your lungs?
However, it has been reported to cause fibrosing lung disease, lung cancer, and malignant mesothelioma of the pleura and peritoneum [1–3], and proved to have toxicity through many in vitro and in vivo experiments.
What R-value do I need for vaulted ceiling?
In moderate climates, insulation with R-19 or R-30 thermal values is often sufficient. In colder regions, builders install ceiling insulation with thermal values up to R-49.
What R-value insulation do I need in a cathedral ceiling?
R-value minimums. In Climate Zones 4, 5, 6, 7, and 8, most prescriptive building codes require ceiling insulation to have a minimum R-value of R-49. In Zones 2 and 3, the minimum requirement is R-38, while in Zone 1, it’s R-30.
What is the difference between a cathedral and a vaulted ceiling?
A vaulted ceiling slopes upward from both sides to form a peak. … On the other hand, cathedral ceilings are defined by their symmetry: they feature two equal sloping sides that meet at a higher point in the middle and often conform to the shape of the roof.
How thick is R30 fiberglass?
Typical R-30 fiberglass insulation is 10-inches-thick. Prior to buying fiberglass insulation, it is important to measure the joint spacing you are working with. Note that the actual space between the framing members will be less than 16 or 24 inches, but the foam batts can easily be stuffed between these lengths.
How thick is r31 insulation?
R-31 EcoTouch PINK FIBERGLAS Insulation 24-inch x 48-inch x 9.5-inch (64 sq. ft.) is rated 4.7 out of 5 by 3.
How thick is r19 fiberglass?
Here’s something you may not know. The standard R-19 fiberglass batt is 6.25″ thick. If you put that batt in a closed 2×6 wall, it will be compressed 0.75″ because a 2×6 is 5.5″ deep. That means the batt labeled R-19 really gives you R-18 in a closed cavity.
