How thick is fire rated drywall

Fireproof drywall is the common term; its industry name is Type X drywall. The thickness of this drywall is 5/8-inch, including all layers. Glass fibers are added to the board to help it retard fire. Also, because it is denser than normal gypsum-and-paper drywall, it takes longer for the fire to degrade it.

How thick is a 2 hour fire rated wall?

A 2-hour rating can be achieved by a wall with an equivalent thickness of as little as 3 1/5 inches when expanded slag or pumice is used or 4 1/2 inches when siliceous gravel is used as the aggregate. For cored units, the equivalent wall thickness is calculated by multiplying the percent solid by the wall thickness.

How thick is a 1 hour fire rated wall?

The most common fire rated drywall is known as type X, which is 5/8 inches thick, placed on each side of 2 by 4 or 2 by 6 inch wood studs and has a minimum fire rating of 1 hour.

How thick is a fire rated wall?

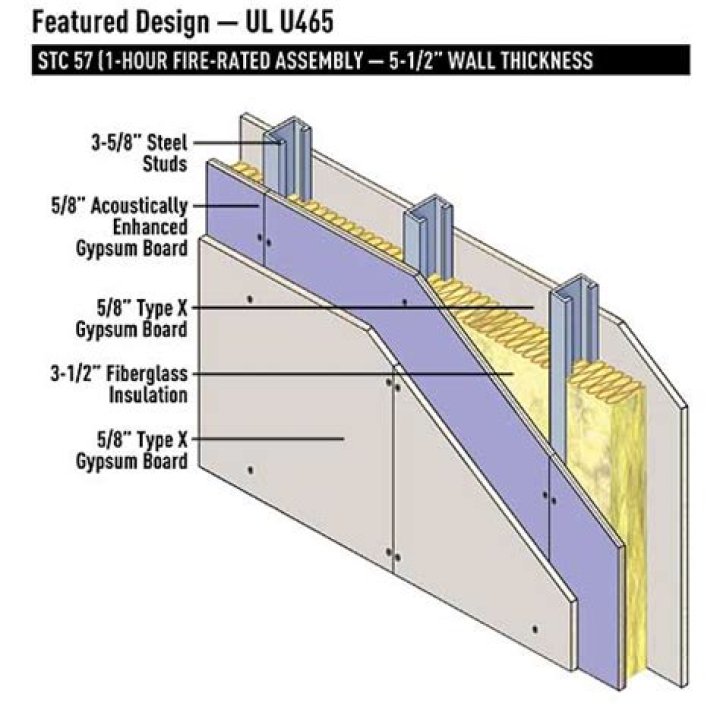

Type X fire rated gypsum drywall that is 5/8 -inch (15.9mm) thick and installed on each side of nominal 2-inch x 4-inch (38x89mm) wood studs spaced 16-inch (400mm) o.c. or 3-5/8 inch (610 mm) steel studs spaced 24” o.c. has a minimum fire rating for the assembly of 1 hour, which is a typical requirement for many …

What makes a 2 hour fire rated wall?

2. Gypsum Board: Two (2) hour rated walls have two (2) layers of 5/8″ Type ‘X’ gypsum wallboard panels on each side of the steel studs. The “Fire Tape” product would be used as an alternative to conventional joint tape in specific systems when: 3.

What makes a 1 hour fire rated wall?

According to the Engineered Wood Association, a one-hour rating indicates that a wall constructed in a manner similar to the one tested will contain flames and high temperatures, and support its full load, for at least one hour after the fire begins.

How many layers of drywall do I need for 1 hour fire rating?

Typically one layer of Type X drywall promises 45 minutes to one hour of fire protection for the building constructed with this type of material.

Is regular drywall fire rated?

Drywall is relatively fireproof, but manufacturing processes such as adding glass fibers can increase the resistance. Drywall is relatively fire resistant. It’s composed of gypsum pressed between two sheets of thick paper.

What is the fire rating of 1/2 drywall?

The fire rating for the 1/2-inch drywall used throughout the rest of the home is 30 minutes. As added benefits, Type X absorbs sound slightly better and is slightly stronger than conventional 3/8-inch or 1/2-inch drywall.

Does garage drywall need to be fire rated?

A: First, fire-rated systems are only required if the garage shares a wall or a ceiling with the home. If you are doing repairs in the garage you should replace with like materials, but remember it is the wall system that is fire rated not the product itself.

Article first time published on

What makes a wall fire rated?

Fire Wall – A fire-resistance-rated wall having protected openings, which restricts the spread of fire and extends continuously from the foundation to or through the roof, with sufficient structural stability under fire conditions to allow collapse of construction on either side without collapse of the wall.

What is a 1 hour fire rating?

A “one-hour” fire rating is given to an assembly consisting of various building materials that can resist the exposure of a standardized fire exposure for one hour. … A few acceptance criteria for the test stipulate that the fire from the gas-fired furnace cannot penetrate through the assembly during the test.

How do I know if my wall is fire rated?

The total fire rating is determined by adding each component to reach a minimum total of 60 minutes. Fire protection rating is calculated from the flame side of the assembly and of course some assemblies have multiple flame sides. Your wood framing members are required to be not more than 16″ on center.

Can you screw into a fire rated wall?

To provide the needed fire separation, the wall must be able to withstand this impact. For a one-hour fire-resistance rating, a wall must be subjected to a stream of water at 30 psi pressure for one minute. … Screws used in wood or steel framed walls must meet the requirements of either ASTM C1002 or ASTM C954.

What is the fire rating of 5/8 drywall?

The 5/8-inch, “fire-code” drywall (called Type X) increases a wall’s fire rating to a minimum of 1 hour, from the 30-minute rating for standard ½-inch drywall. And it’s not just thickness that makes the difference. Type X has a denser core and contains glass fibers that keep it from crumbling in the heat.

What size sheetrock thickness is used on a typical residential ceiling?

One-half inch panels are standard on the ceiling. Drywall comes in large, flat, gypsum-core panels wrapped with a strong, paper skin. The panels, which are 4-feet wide, are available in lengths ranging from 8 to 16 feet.

How do you do a 30 minute fire-resistant ceiling?

If the ceiling is plasterboarded, then 12.5mm thick boards are required to give 30 minutes’ fire resistance. You may have to provide an additional skim coat or additional plasterboard to the ceiling.

How thick is a 3 hour fire rated wall?

(25 mm) thickness (measured perpendicular to the face of the wall) of ceramic fiber in the joint can be used in walls with fire resistance ratings up to 3 hours, while a 2 in. (51 mm) thickness can be used in the joints of a 4-hour wall.

What are the 3 main classifications of fire rated walls?

Type 1: Fire-resistive: High-rise buildings made of concrete and protected steel. Type 2: Non-combustible: Newer buildings with tilt slab or reinforced masonry walls and a metal roof. Type 3: Ordinary: New or old buildings with non-combustible walls but a wood-framed roof.

How do I build a fireproof wall?

One of the most effective ways to add fire resistance to the exterior surface of a wall is to replace relatively flammable exterior wall treatments, such as vinyl or wood siding, with fire-resistant materials, such as brick, concrete or stucco.

Is all gypsum board fire rated?

All gypsum panels are fire resistant and produced in a range of thicknesses, core formulations and optional special performance enhancements. … In Type C panels, the core is enhanced with glass fibers as well as other additives to provide an even higher level of fire-resistance than Type X panels.

Is durock fireproof?

A Durock panel with a thickness of 1/2 or 5/8 inch can provide two hours of fire protection when installed correctly and in conjunction with all fireproofing construction materials.

Is Type C drywall fire rated?

Type C drywall is known as the more durable version of Type X—there are more glass fibers in this product as well as more vermiculite components, giving it a fire resistance of 2-4 hours. You can find this product at your local drywall and insulation store in 1/2” and 5/8” thickness.

Does drywall act as a fire barrier?

The gypsum used to make drywall is a naturally occurring mineral composed of calcium sulfate dehydrate and water. The presence of water in gypsum contributes greatly to drywall’s natural fire resistance. … Once all the water has escaped the panel, the drywall continues to act as a fire barrier.

What is a 45 minute fire rating?

a 45-minute or one-hour fire-resistance rating may be required for the floor assemblies that are fire separations depending on the size of the building. noncombustible construction built to six storeys, a one-hour fire- resistance rating is required for floor assemblies that are fire separations.

How thick should drywall be?

Most drywall measures 1/2-inch thick. It’s the most common choice for interior walls because they are easy to carry and hang. If weight is a concern, consider ultra-light half-inch drywall.

What is code for wall between house and garage?

R302. 6 Dwelling/garage fire separation: The wall between a house and garage must be separated by 1/2″ drywall. This also applies to structural members, and this extends to the attic in a common-sense type of way; the garage needs to be separated from the house.

Is purple drywall fire rated?

The PURPLE family of products delivers innovative performance that goes well beyond what’s possible with standard drywall. While all gypsum-based drywall is naturally fire-resistant, the PURPLE family of products is unique because it also resists moisture, mold and mildew.

What is the difference between a fire barrier and fire partition?

The term “fire barrier” refers to a structure that has, at minimum, a one-hour fire resistance rating. … By comparison, a “fire partition” must have at least a 30-minute rating for certain types of occupancies. Otherwise, a fire partition must have a one-hour rating.

What is the difference between fire wall and fire barrier?

Basically, firewalls are thick exterior walls with a higher fire-resistance rating, while fire barriers are interior walls with a lower fire-resistance rating.

Why is a fire door half the rating of the wall?

They are part of the ‘fire compartmentation’ system provided by walls, floors and ceilings. … This is because the door must provide sufficient fire and smoke resistance to provide protection for people using the corridor, for example, to safely escape or seek refuge in a fire situation.
